Plan 01288 Belle Crest House Plan
Find A Lower Price And We'll Beat It
This home plan is a beautiful Country estate. All the pleasures of comfortable living are yours everyday in this spacious family home from the broad front porch to the gourmet kitchen. A balance of elegance and well-planned living space fills this home from foyer and banquet hall to the family room and outdoor living areas. A private first-floor master suite provides a relaxing retreat. All the amenities that your family wants are found in this classic home design.
We offer floor plan modifications for all of our farm house plans. Have a question about any of our house plans, call us at 1 (888) 814-1494.
What's Included In the plan
1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

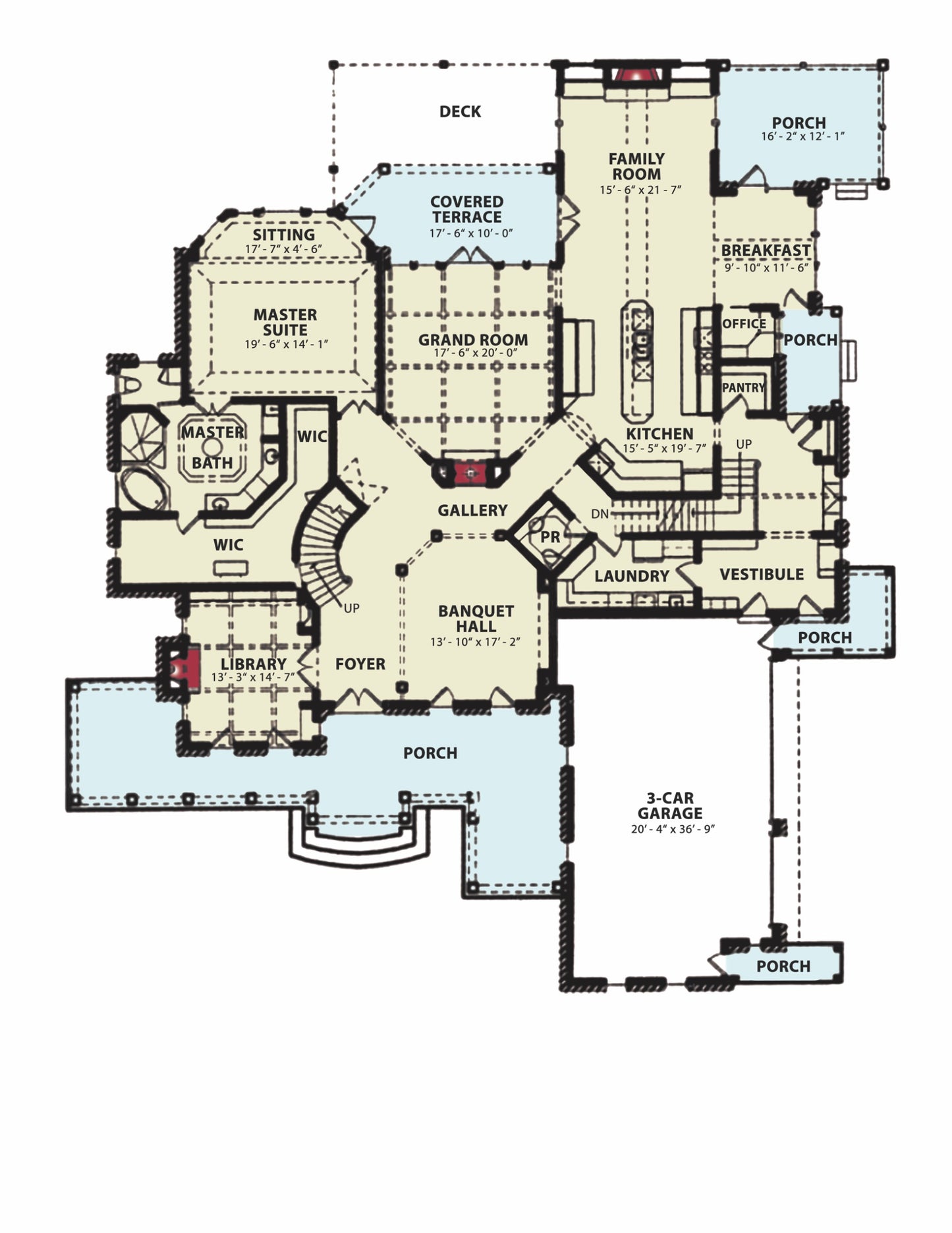

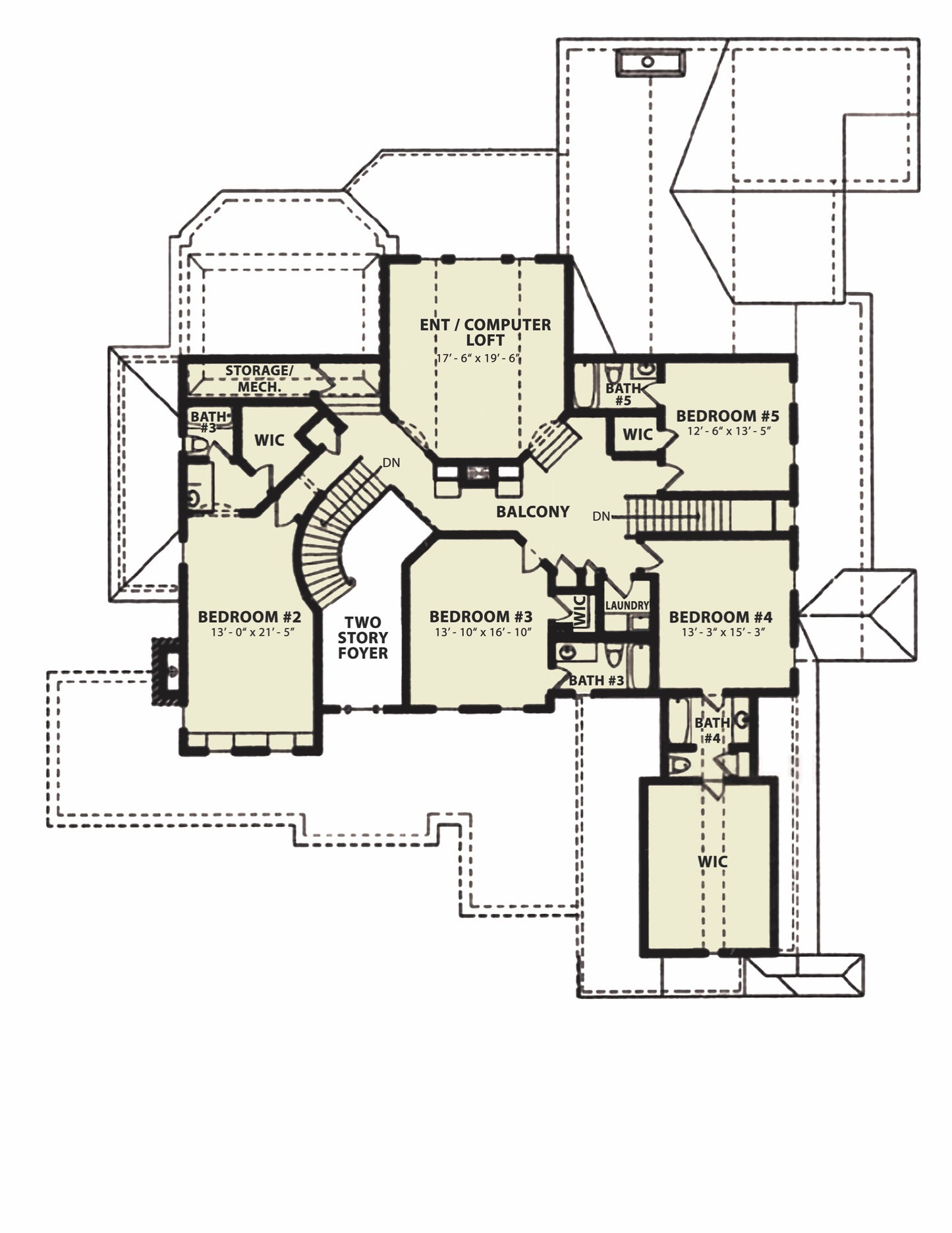

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
|MASTER BEDROOM||Master Down|
|W REF||83, 84|
