Plan 08086 Cambridge Manor B House Plan

4
Bedrooms
3
Bathrooms
3145
Square Ft
2
Stories

Recent Awards Won:

Customer Reviews:

Customize this plan to make it perfect for you, Risk-Free!

Edit Your Plan

Regular price $1,595.00 USD
Regular price Sale price
$1,595.00 USD

Customer Reviews:

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

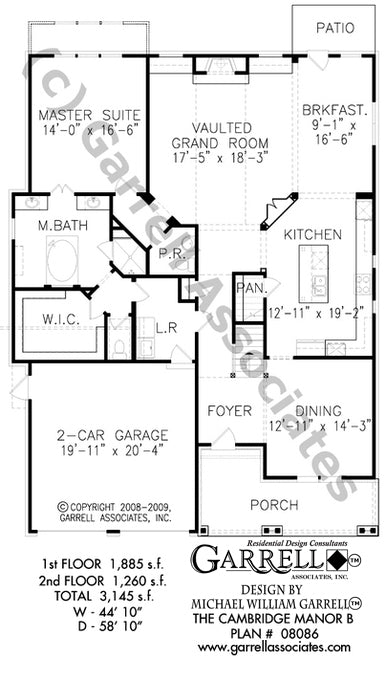

1stFLOORPLAN 08086

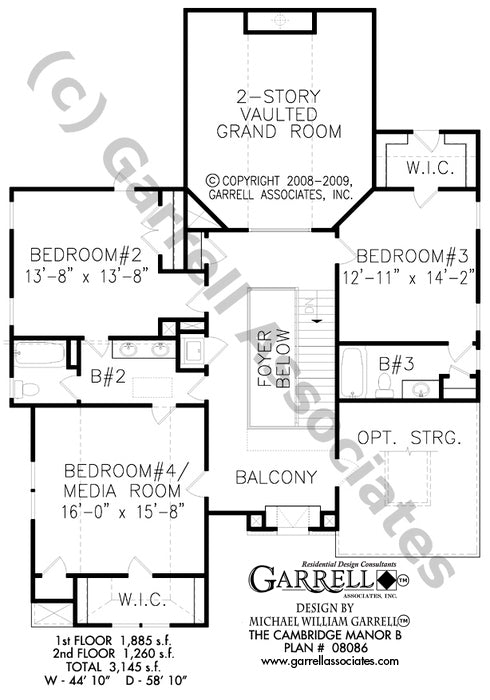

2ndFLOORPLAN 08086
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.
Download The Brochure (PDF)

Description

This Traditional style house plan features a vaulted grand room enhanced with a fireplace. The master suite consists of a dual vanity bath and an expansive walk in closet. The second floor is comprised of three additional bedrooms and optional storage room. A balcony overlooks the second story grand room. We offer floor plan modifications on all of our Traditional style house plan designs. Have a question about any of our house plans, call us at 1 (888) 814 1494.

What's Included In the plan

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 3145
1ST FLOOR 1885
2ND FLOOR 1260
GARAGE 420
BATHS 3
BEDS 4
HALF BATHS 1
MASTER BEDROOM Master Down
WIDTH 44' 10"
DEPTH 58' 10"
W REF 44, 45
D REF 58, 59
