Plan 05297 Cedarbrook Manor House Plan
Find A Lower Price And We'll Beat It

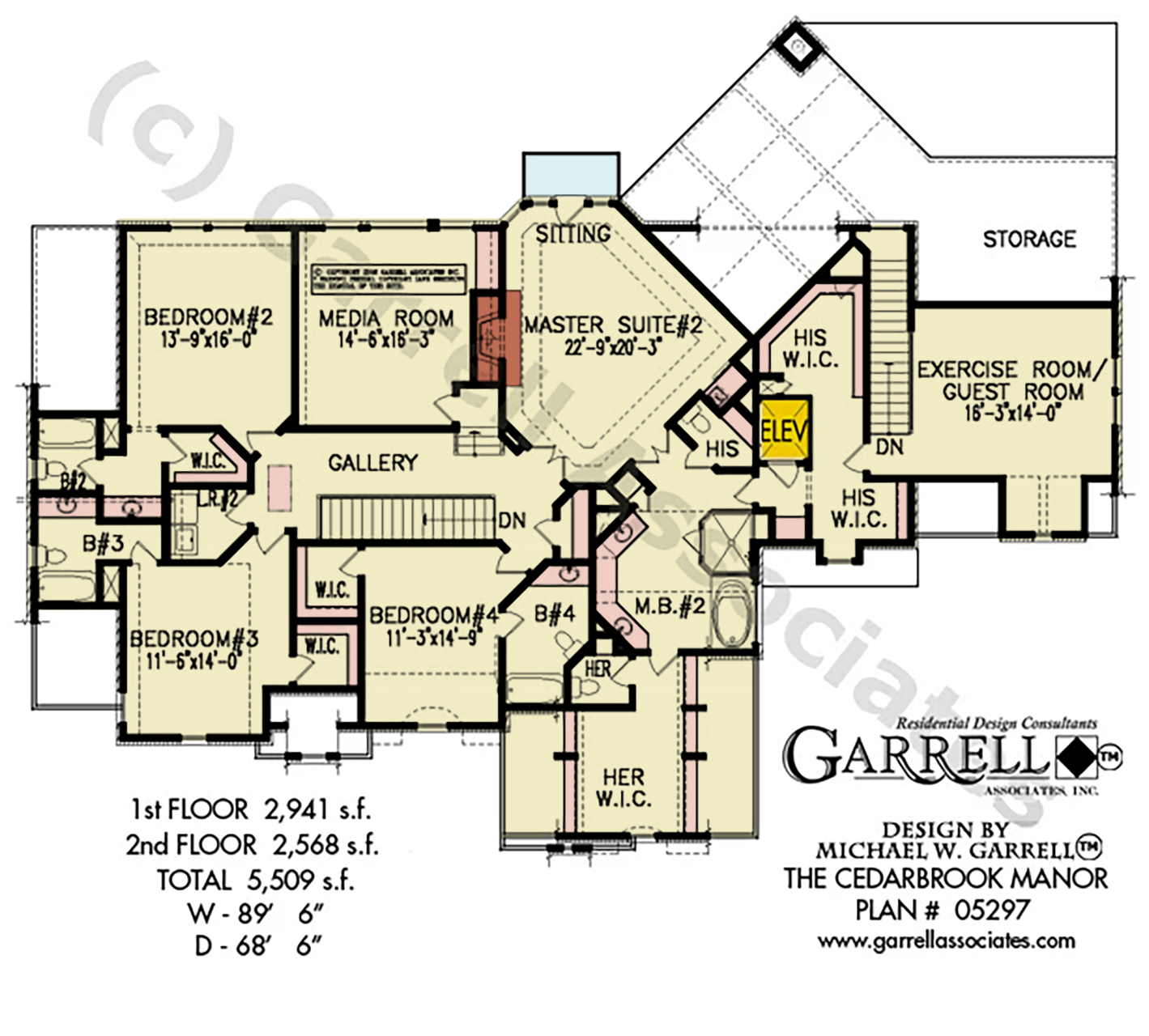

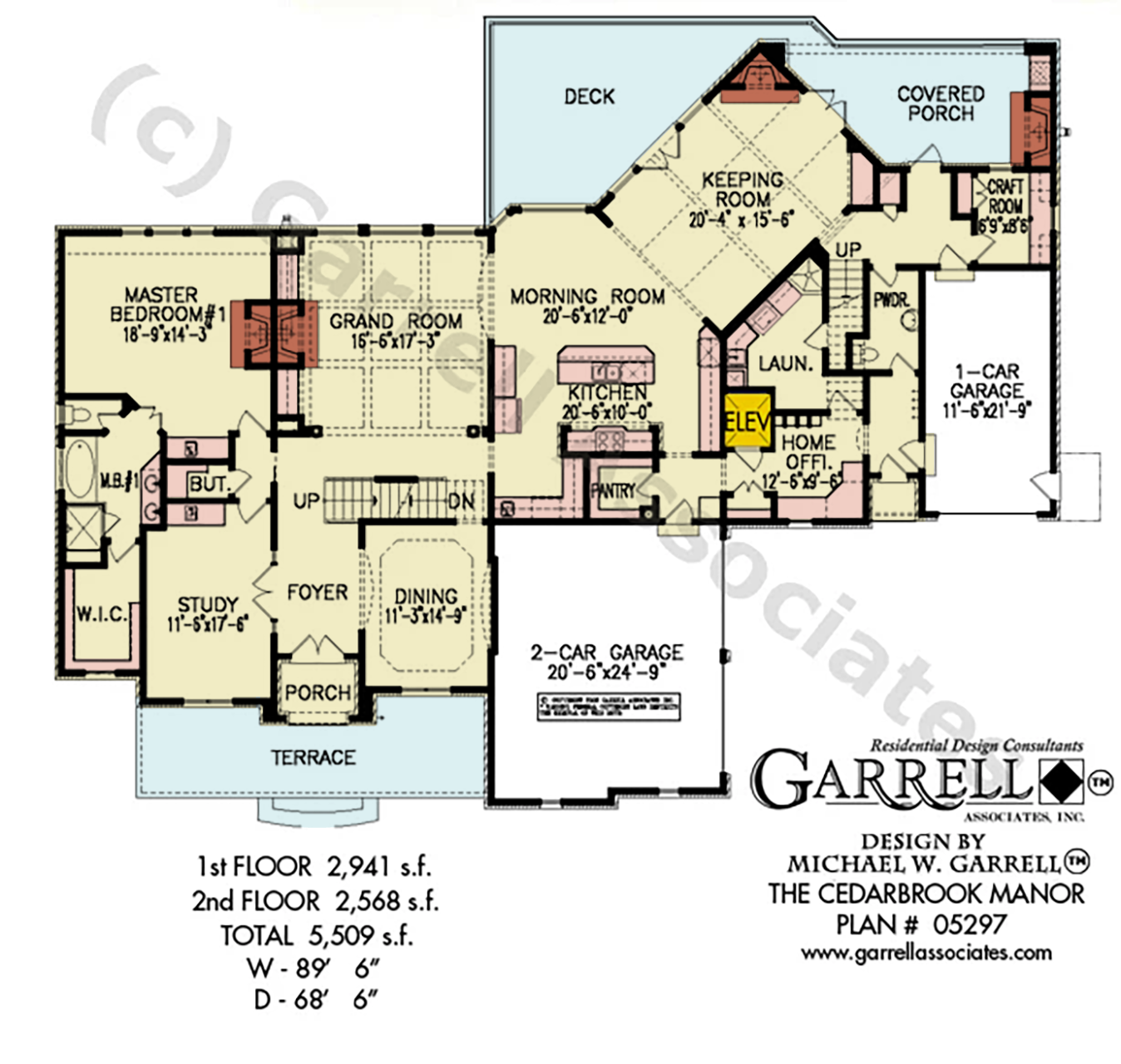

At the heart of this Traditional style house plan a center island kitchen flows to the morning room, keeping room and is adjacent to the grand room. Enjoy the warmth of the keeping room corner fireplace, one of five in this home. A laundry room, pantry, elevator and home office are adjacent to the kitchen. Ideal for entertaining family and friends, an open deck and a covered porch accented with a fireplace are at the rear of the home. The first floor master bedroom is highlighted with a cozy fireplace. The second floor master suite features over-sized his and her walk in closets and a fireplace. Three additional bedrooms and an optional exercise room or guest room completes this dual master bedroom plan. We offer floor plan modifications on all of our Traditional style house plan designs.
What's Included In the plan

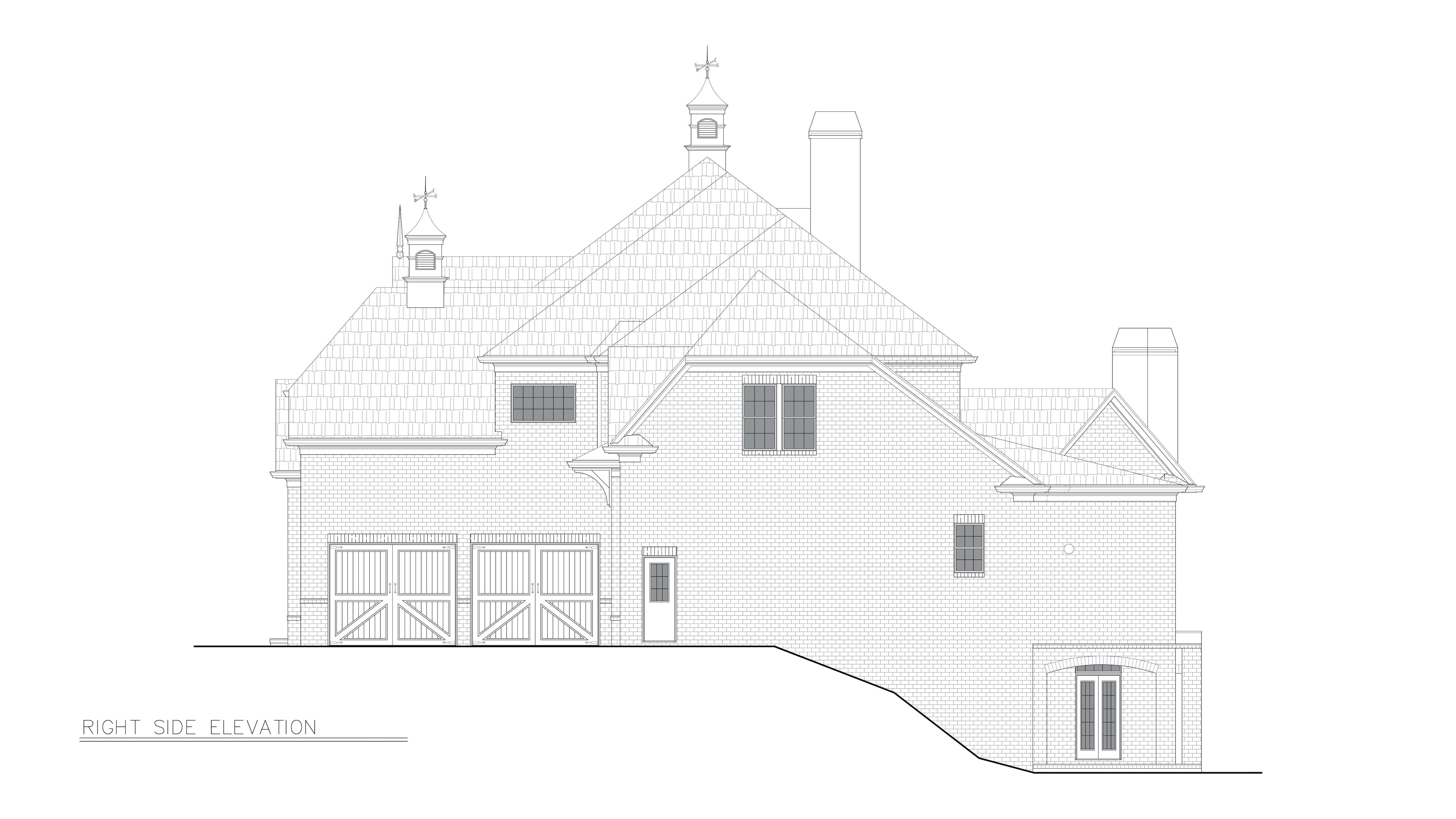

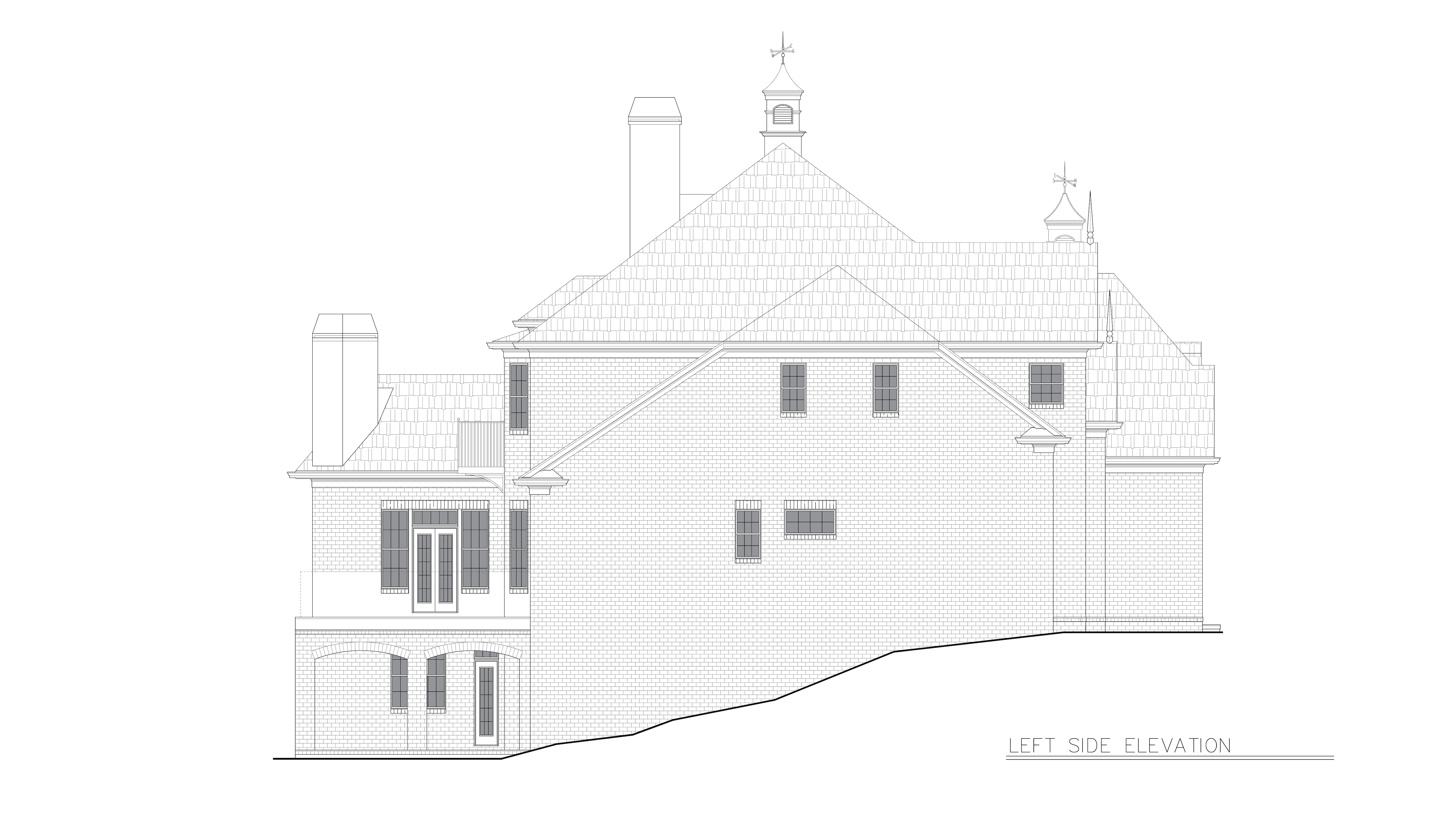

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
