Plan 99139 Chastaine House Plan

4
Bedrooms
4
Bathrooms
4332
Square Ft
2
Stories

Regular price $2,166.00 USD
Regular price Sale price $2,166.00 USD
Sale Sold out

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Modify This Plan

Need to make changes to this home plan? We will deliver you a free price quote within 2 to 4 business days.

Edit Your Plan
1stFLOORPLAN 99139

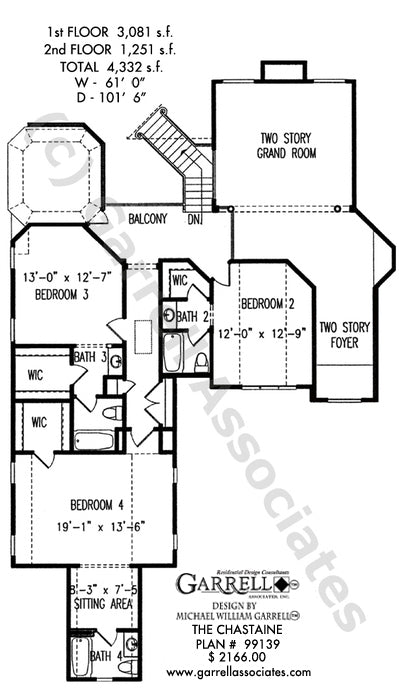

2ndFLOORPLAN 99139
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

This charming courtyard house plan boasts a private first-floor master retreat with three additional bedroom suites on the second floor. Featured in this Luxury Normandy home design are an open kitchen, breakfast and family room that are perfect for those large friend and family gatherings. Notable is an over sized laundry room and home office / craft room. This home design has a light rustic exterior with cottage style details. We offer floor plan modifications for all of our European house plan designs. Have a question about any of our house plans, call us at 1 (888) 814 1494.

What's Included In the plan

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 4332
1ST FLOOR 3081
2ND FLOOR 1251
GARAGE 799
BATHS 4
BEDS 4
HALF BATHS 1
MASTER BEDROOM Master Down
WIDTH 61' 0"
DEPTH 101' 6"
W REF 61
D REF 101, 102
