Plan 98260 Dataw House Plan

5
Bedrooms
4
Bathrooms
2683
Square Ft
2
Stories

Regular price $1,073.00 USD
Regular price Sale price $1,073.00 USD
Sale Sold out

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Modify This Plan

Need to make changes to this home plan? We will deliver you a free price quote within 2 to 4 business days.

Edit Your Plan

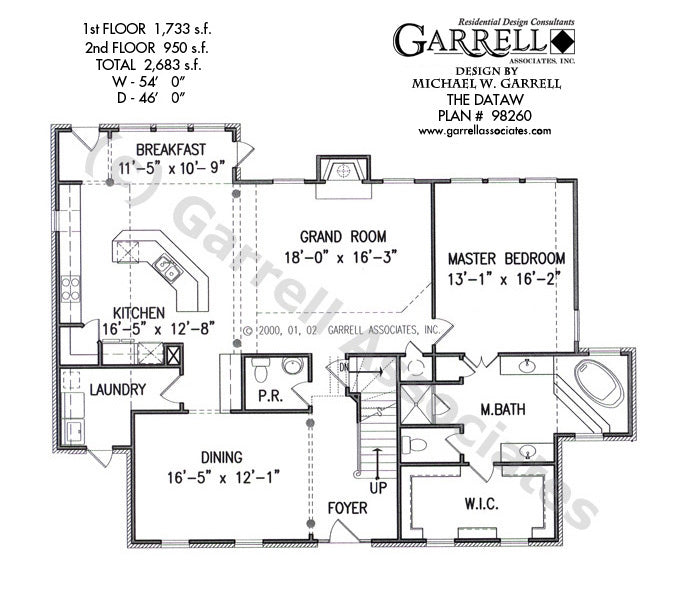

1stFLOORPLAN 98260

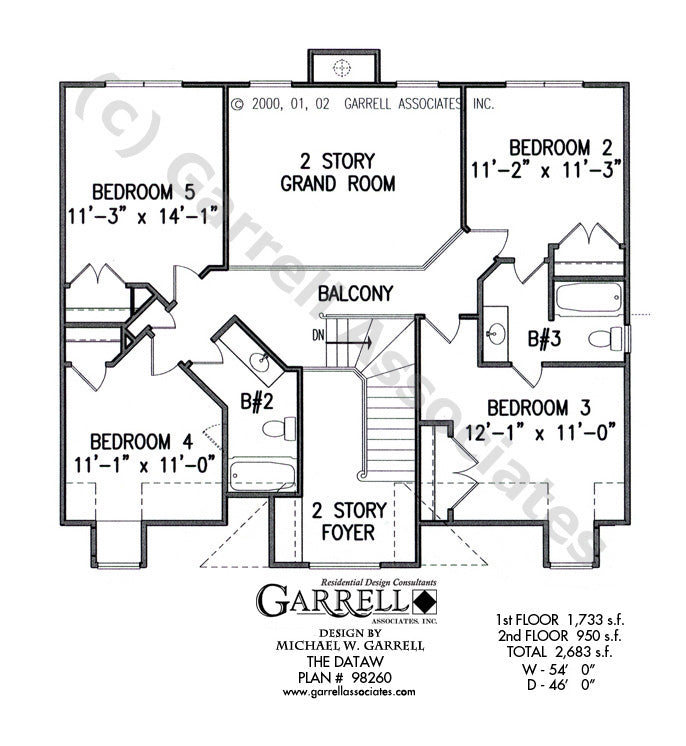

2ndFLOORPLAN 98260
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

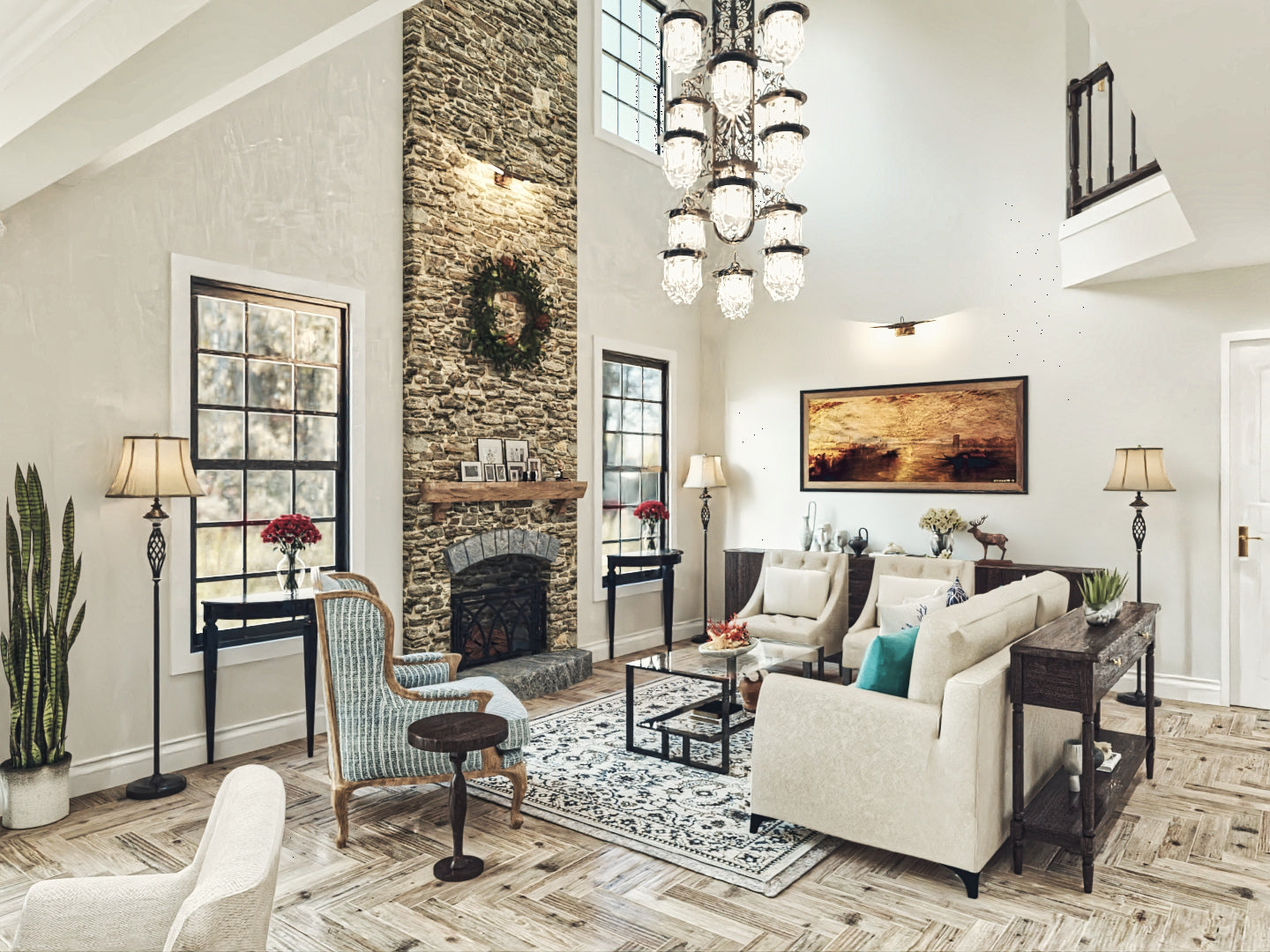

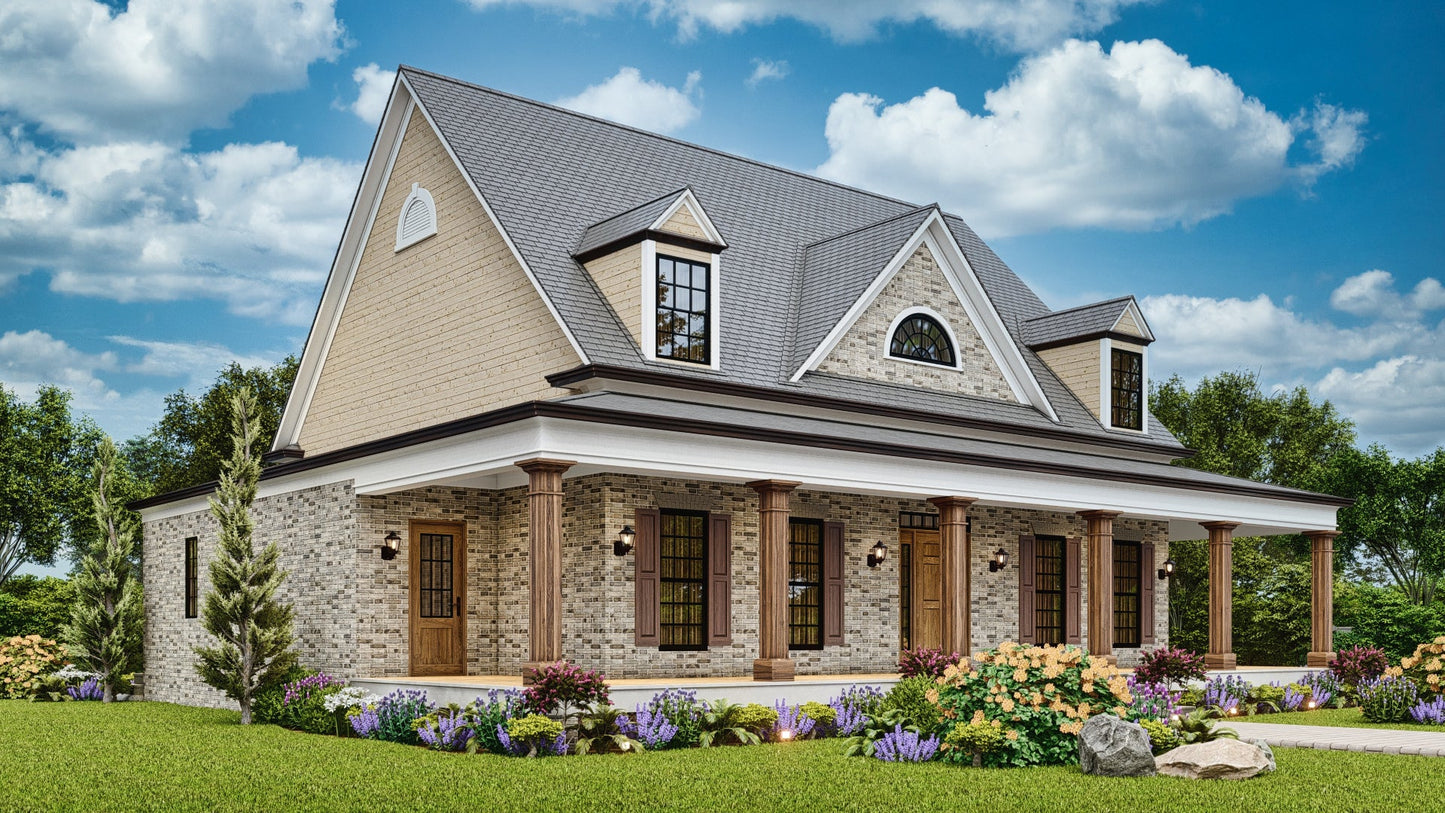

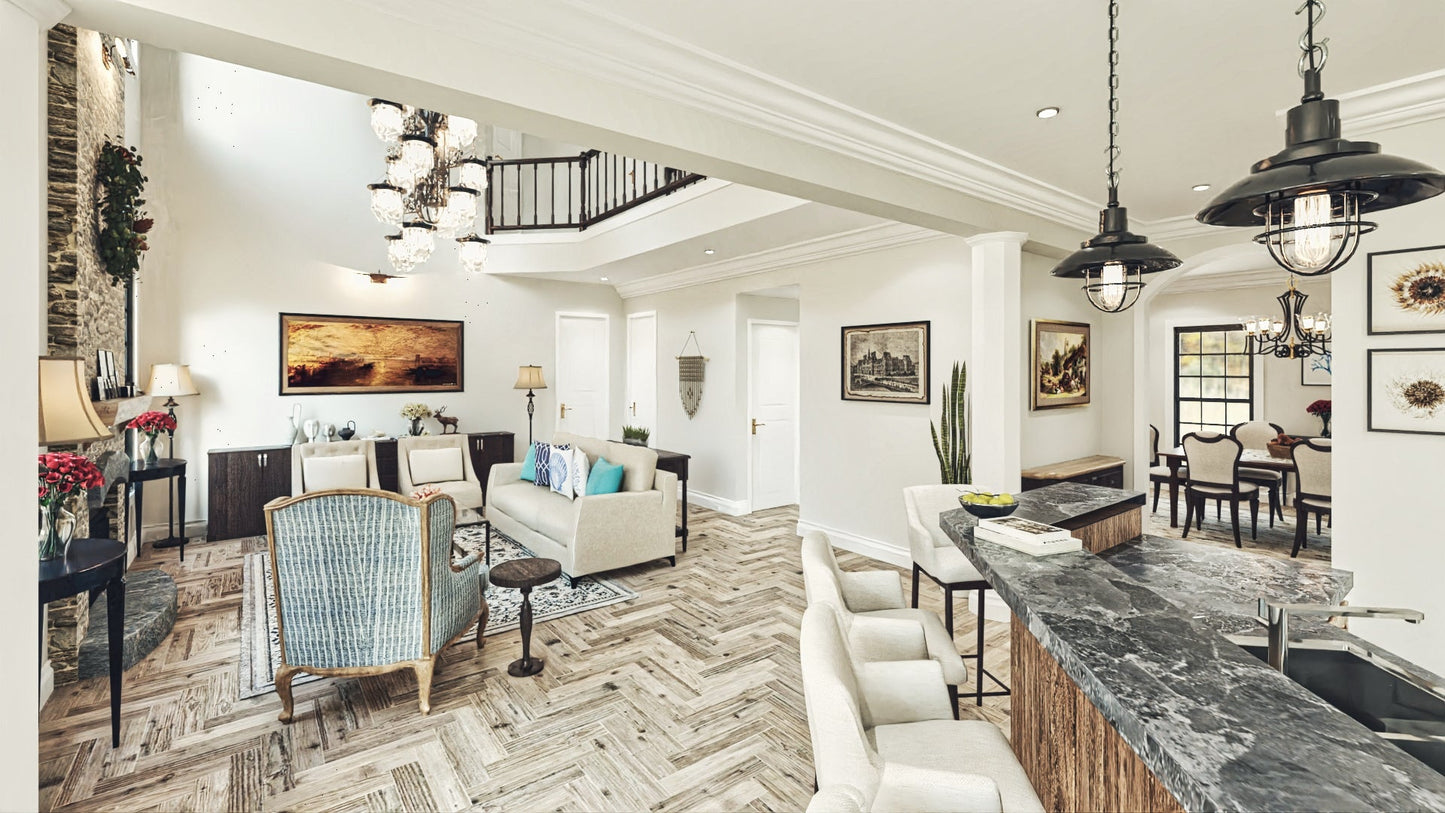

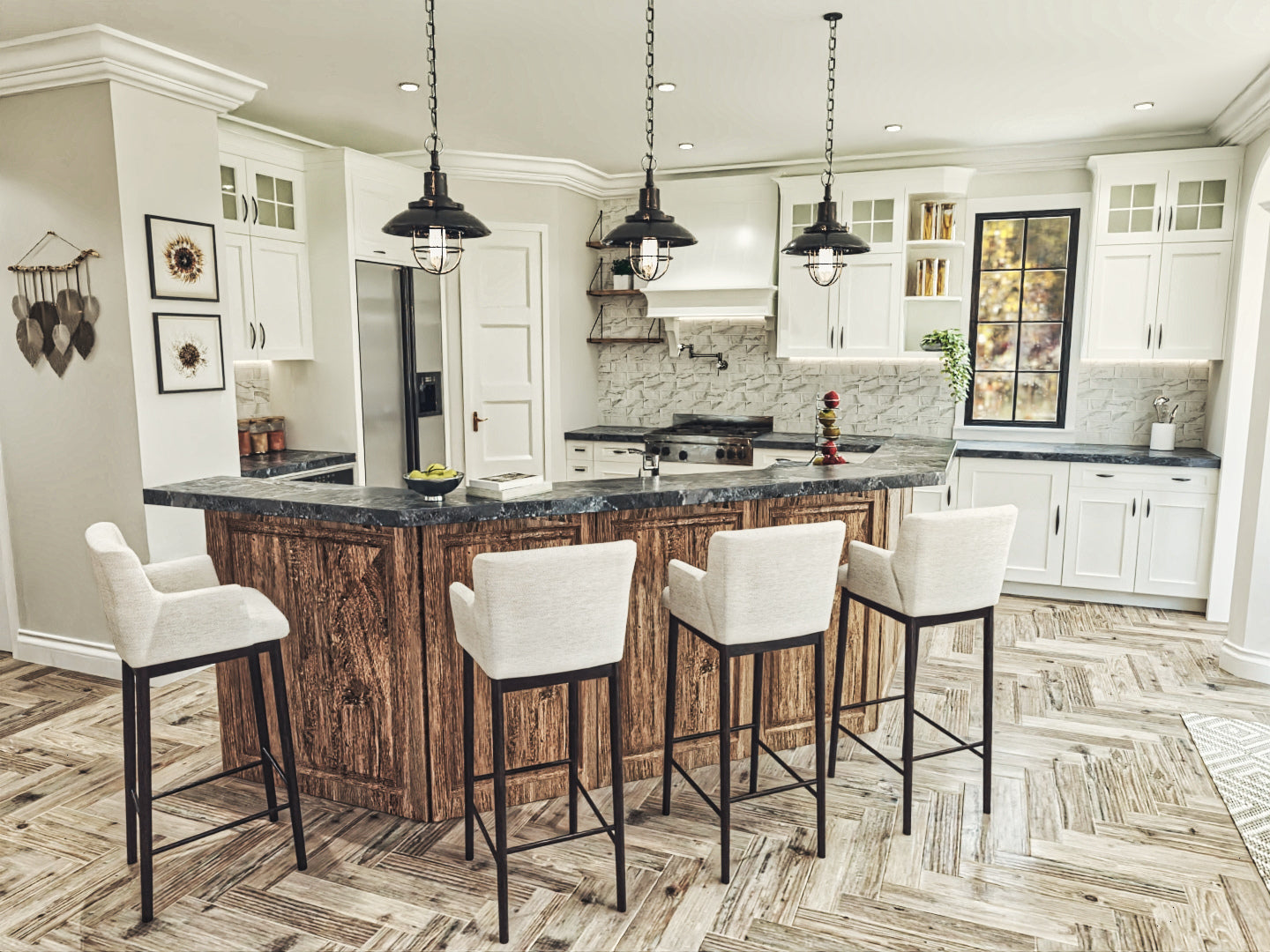

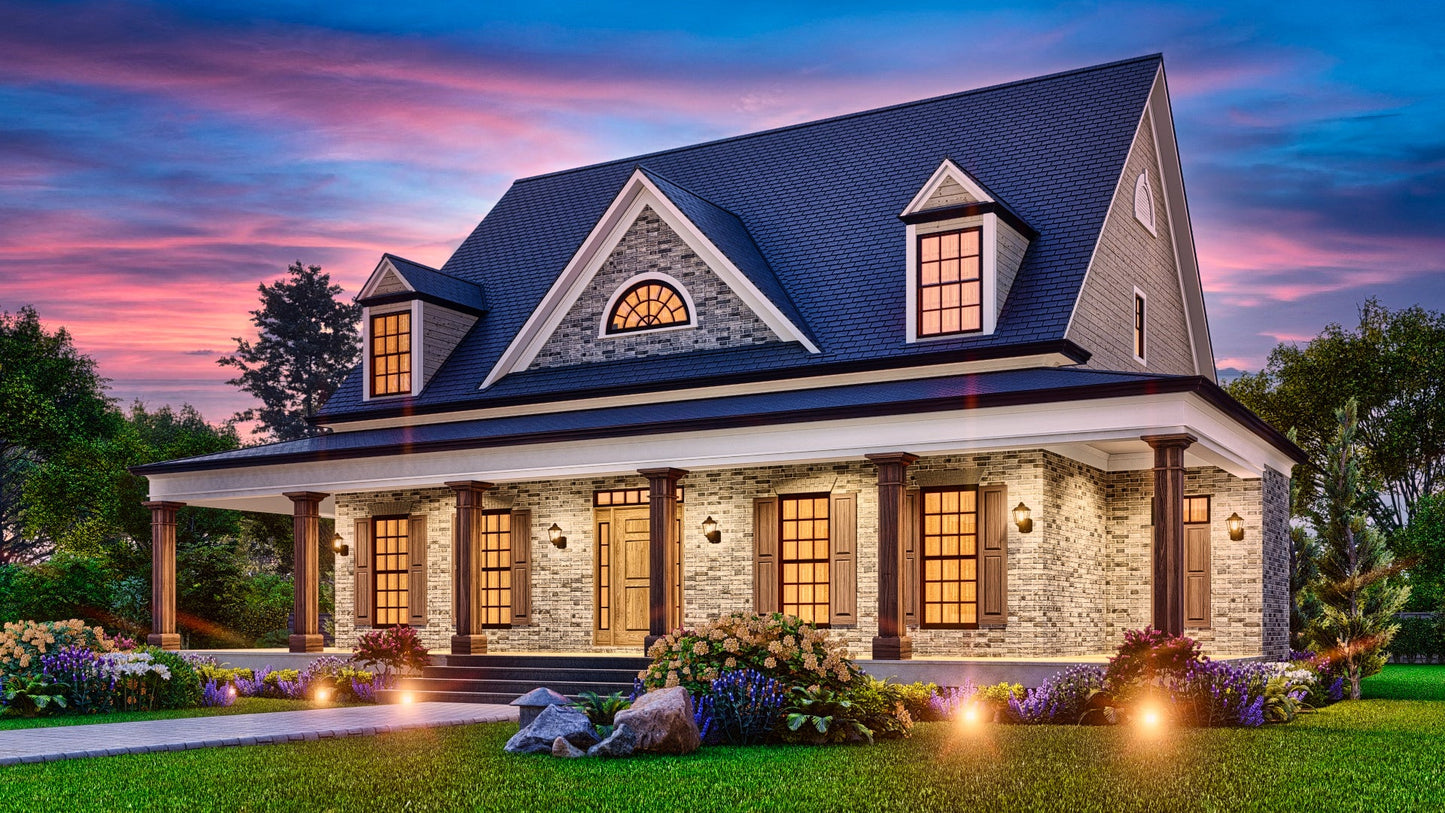

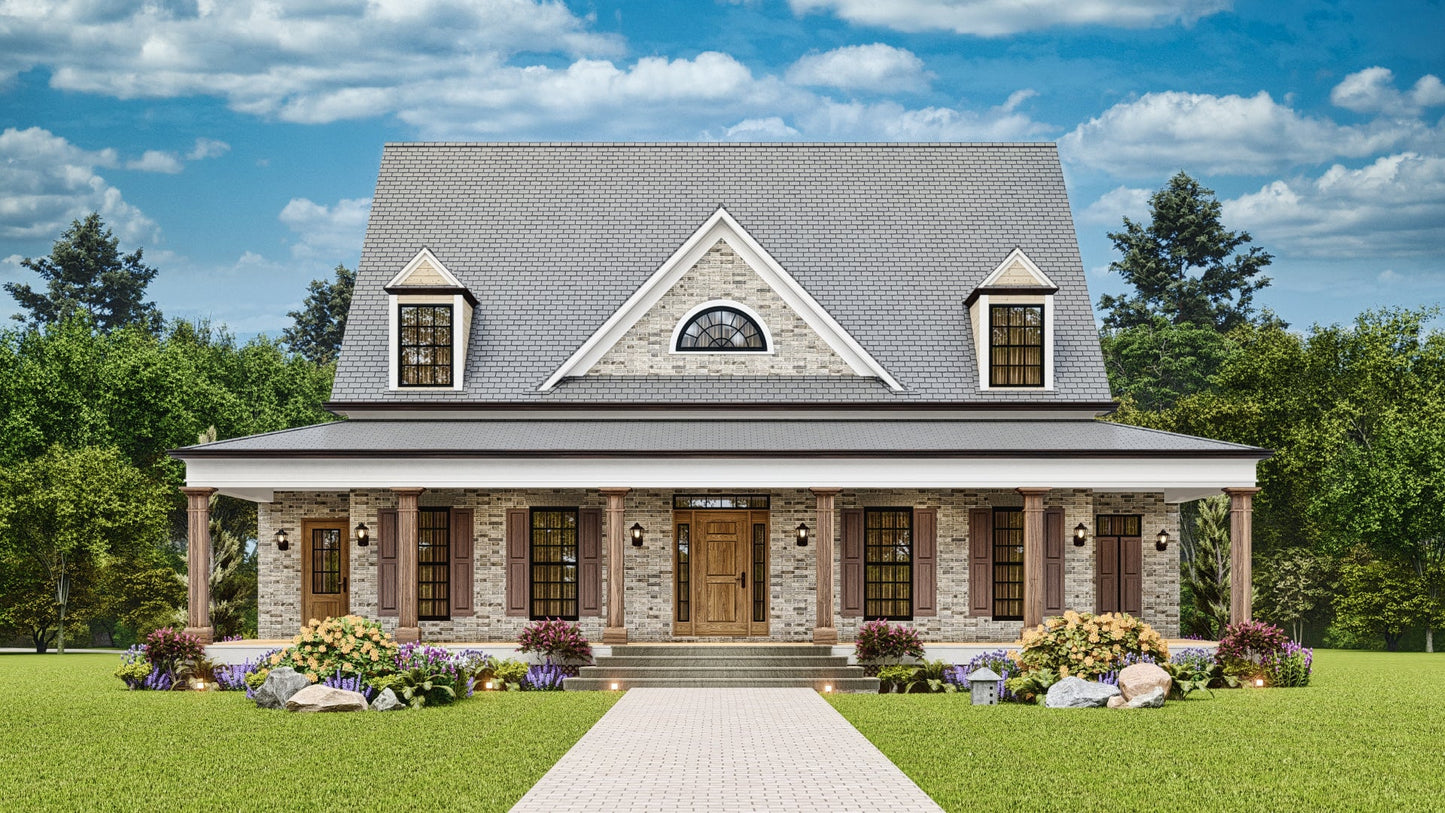

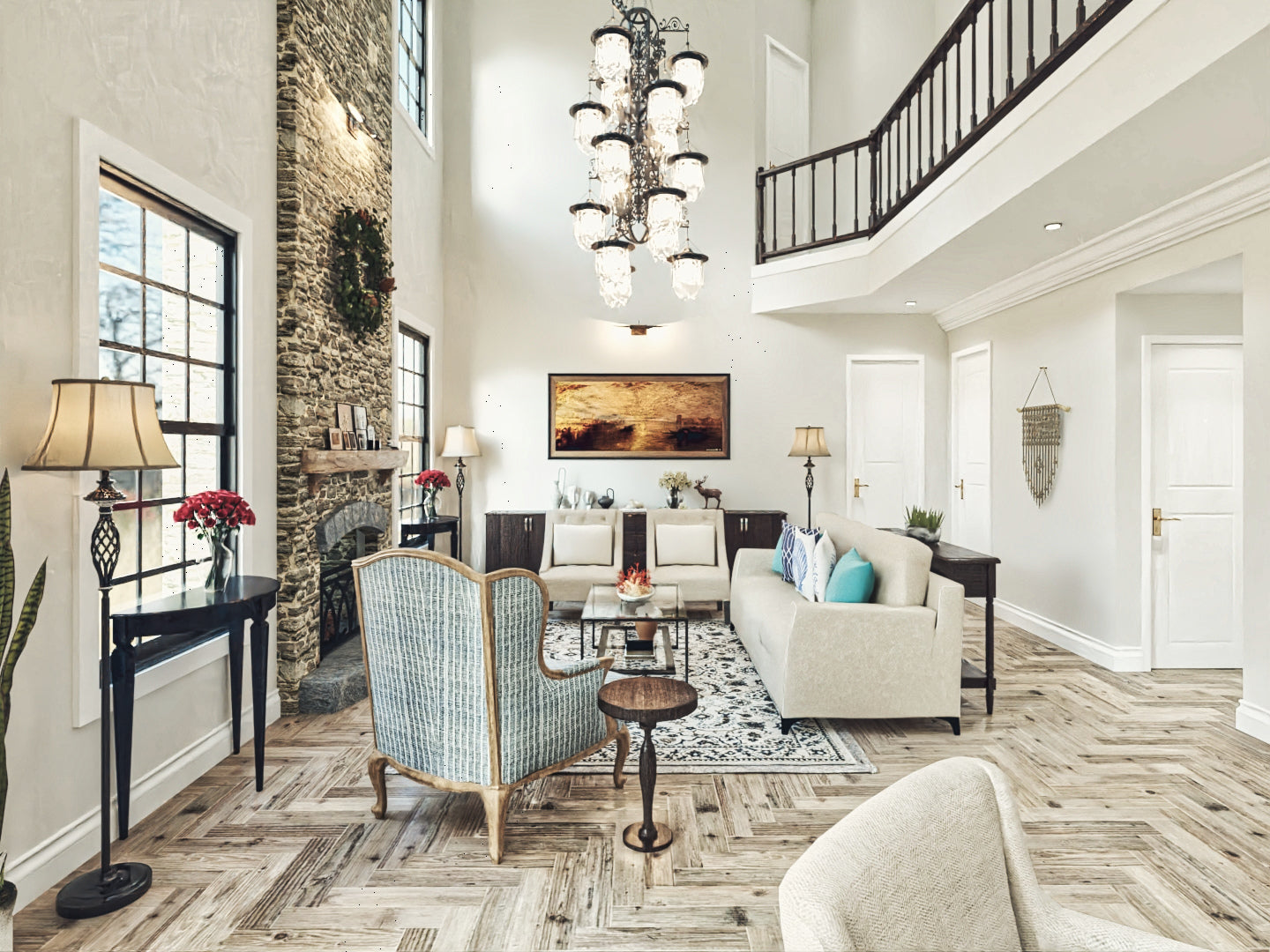

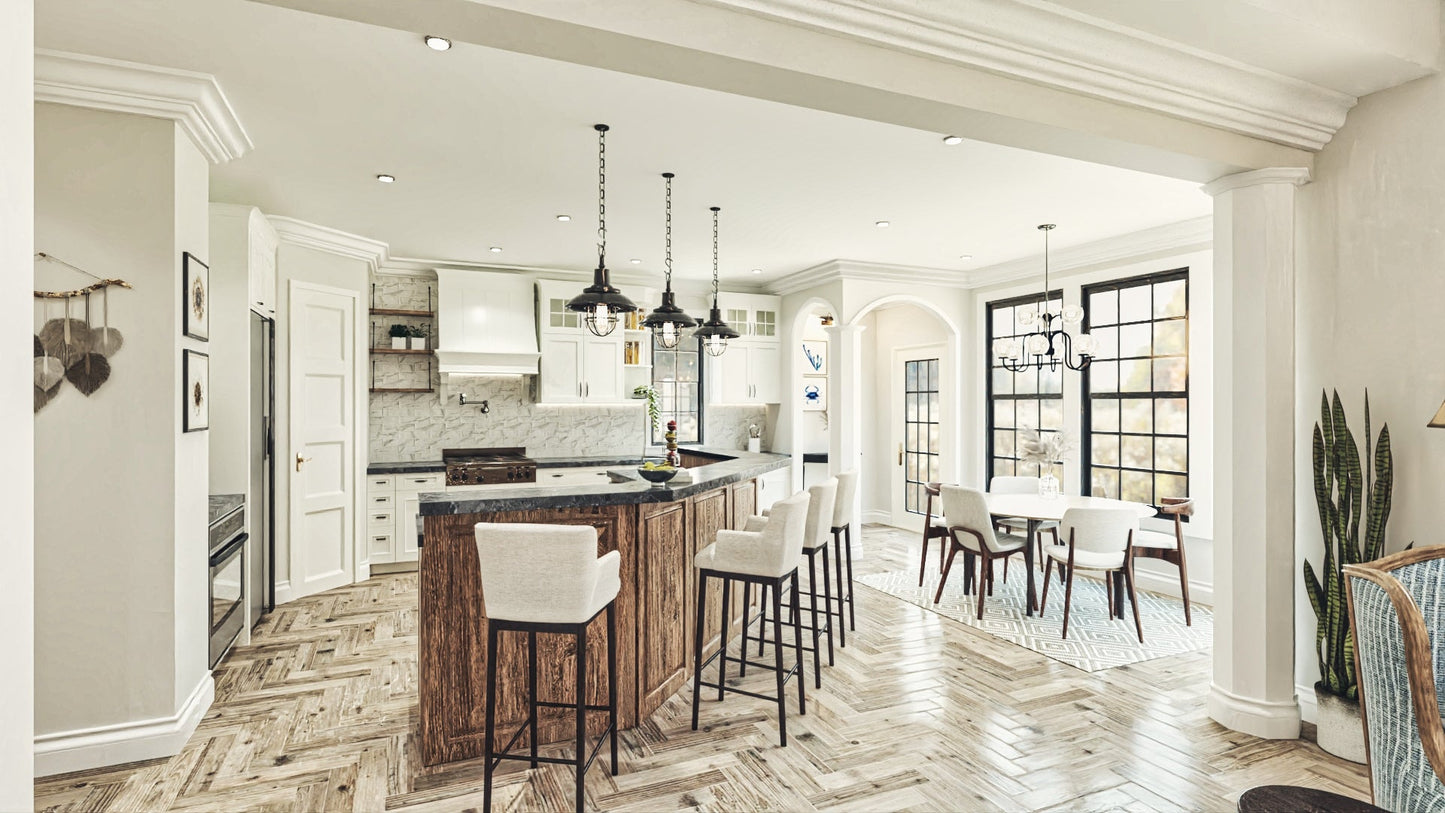

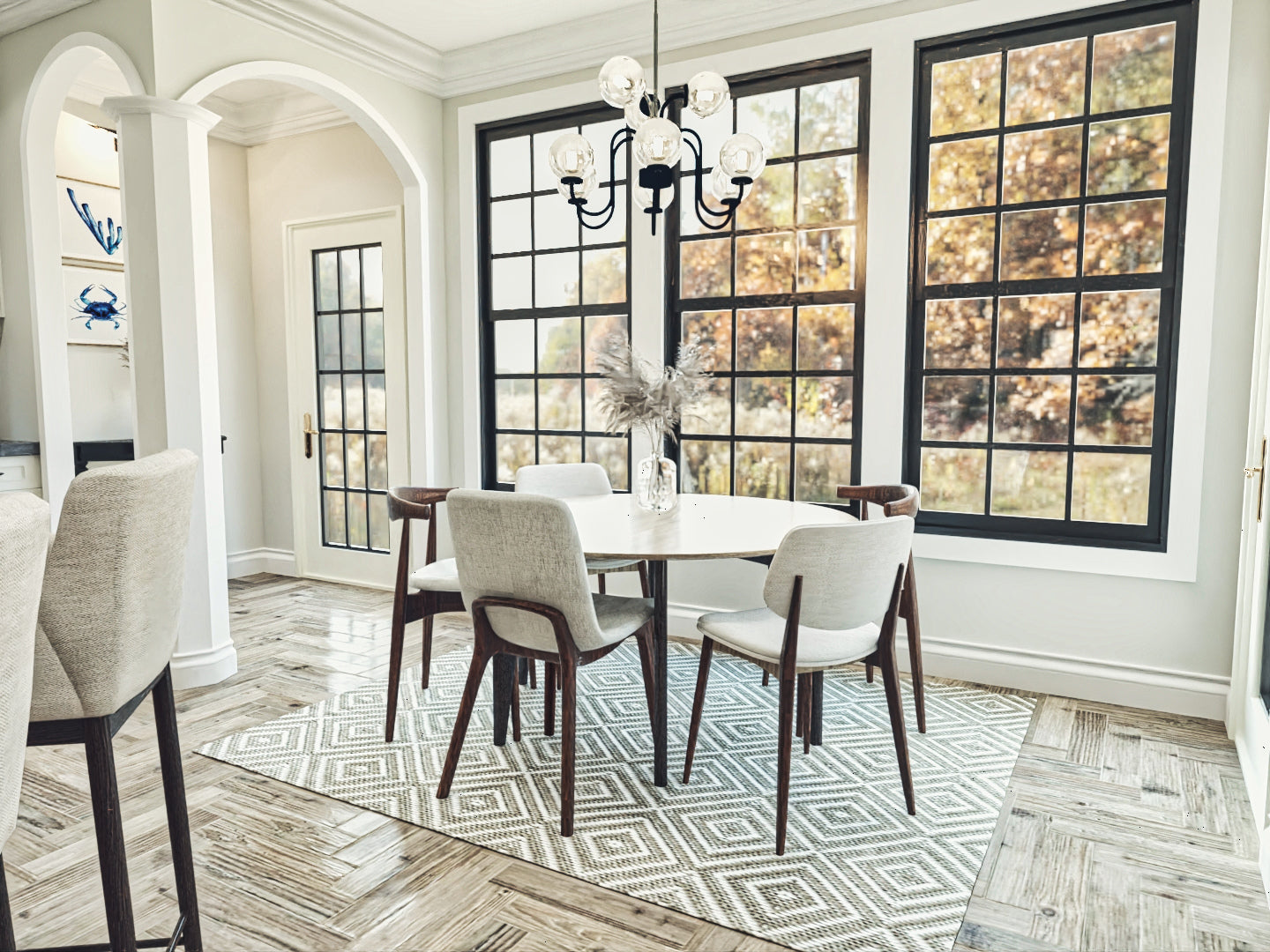

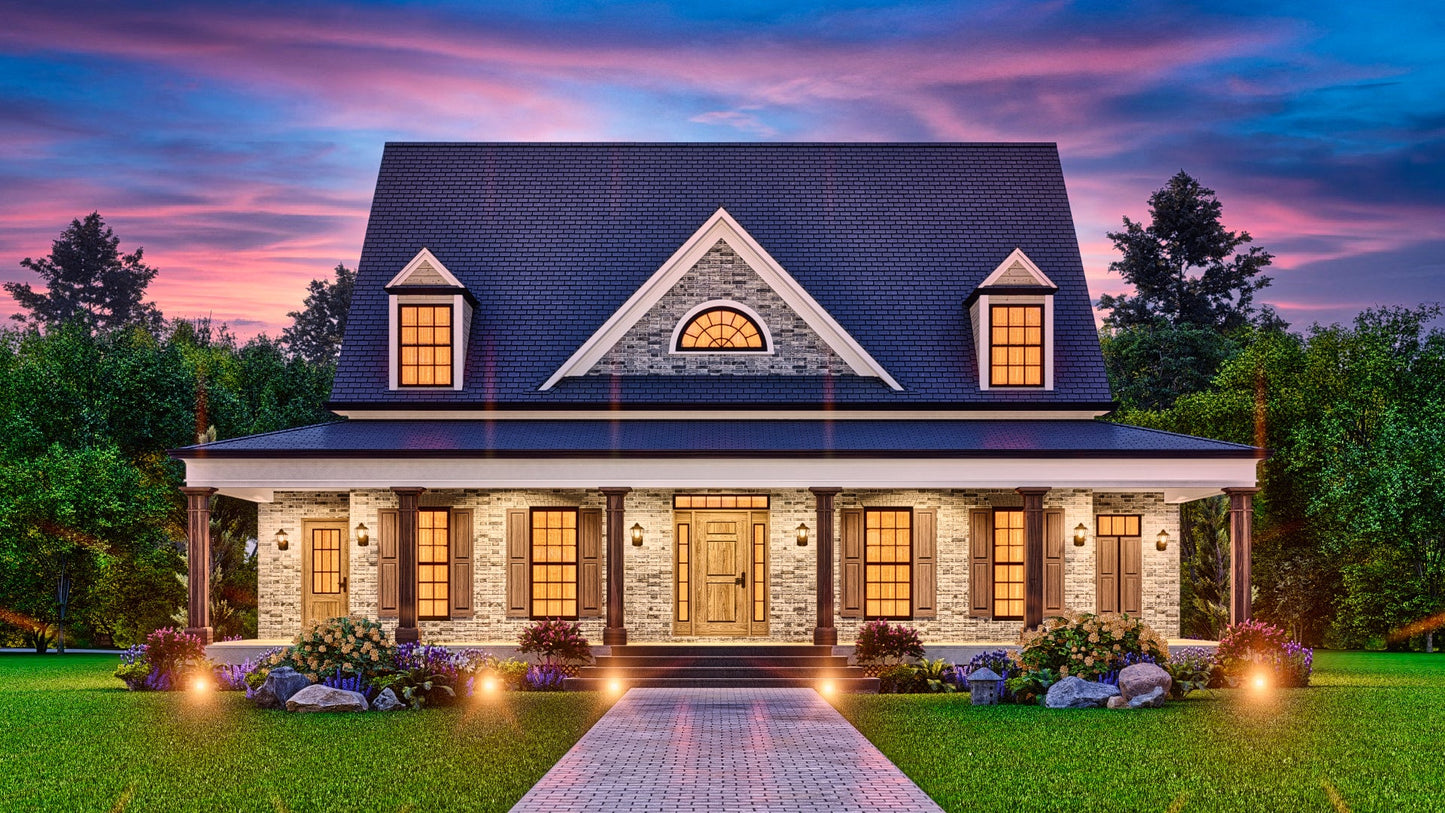

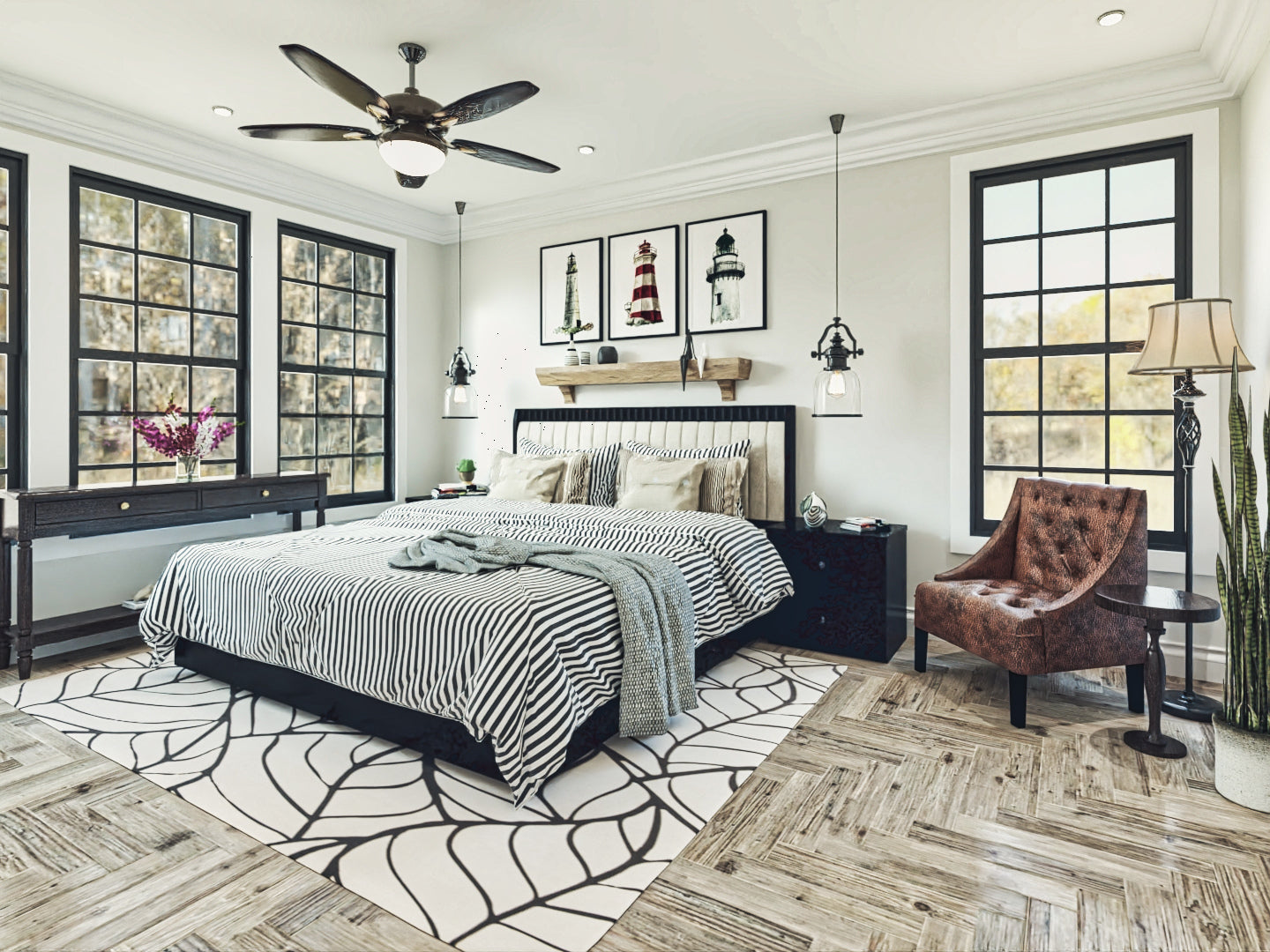

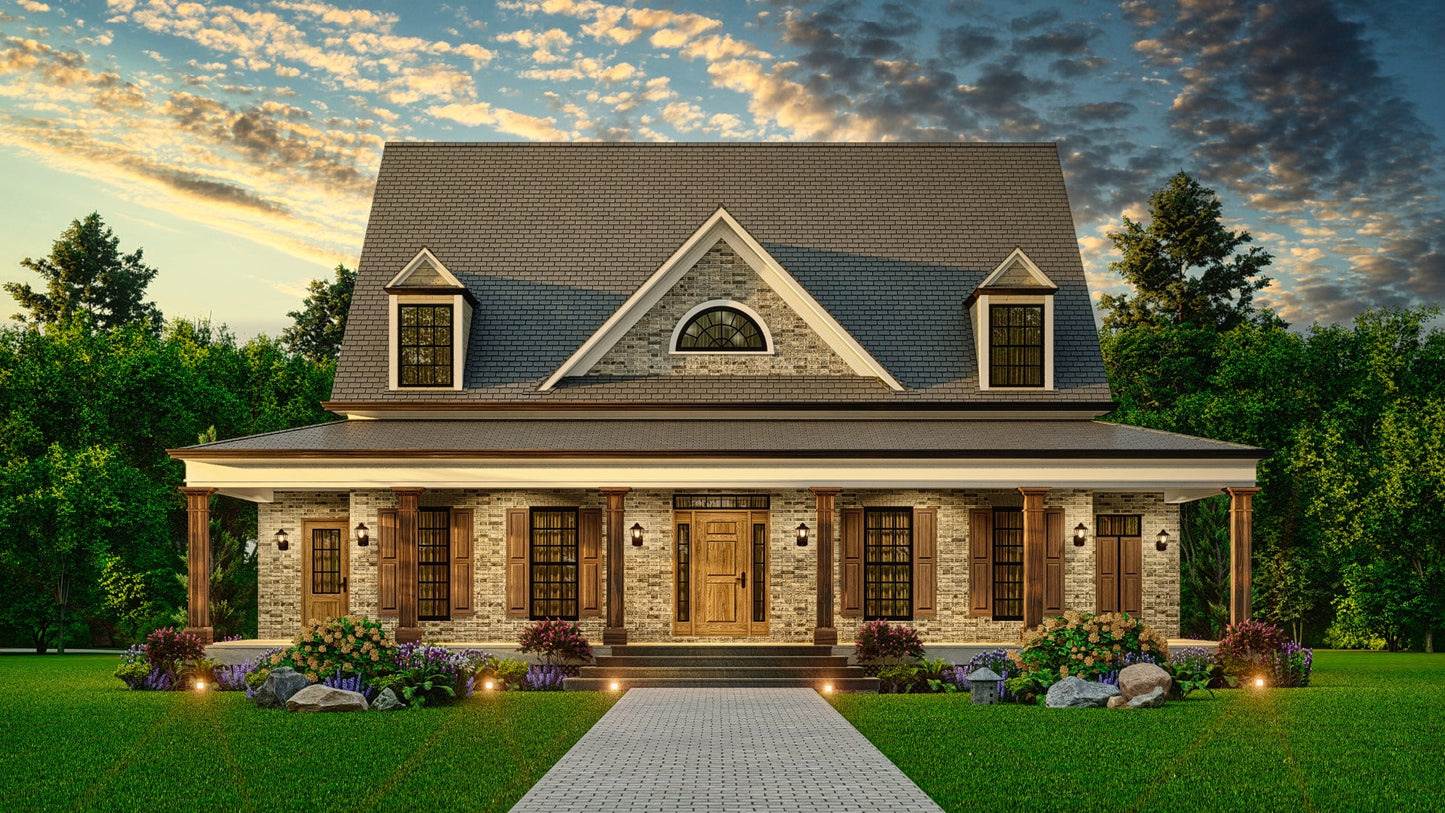

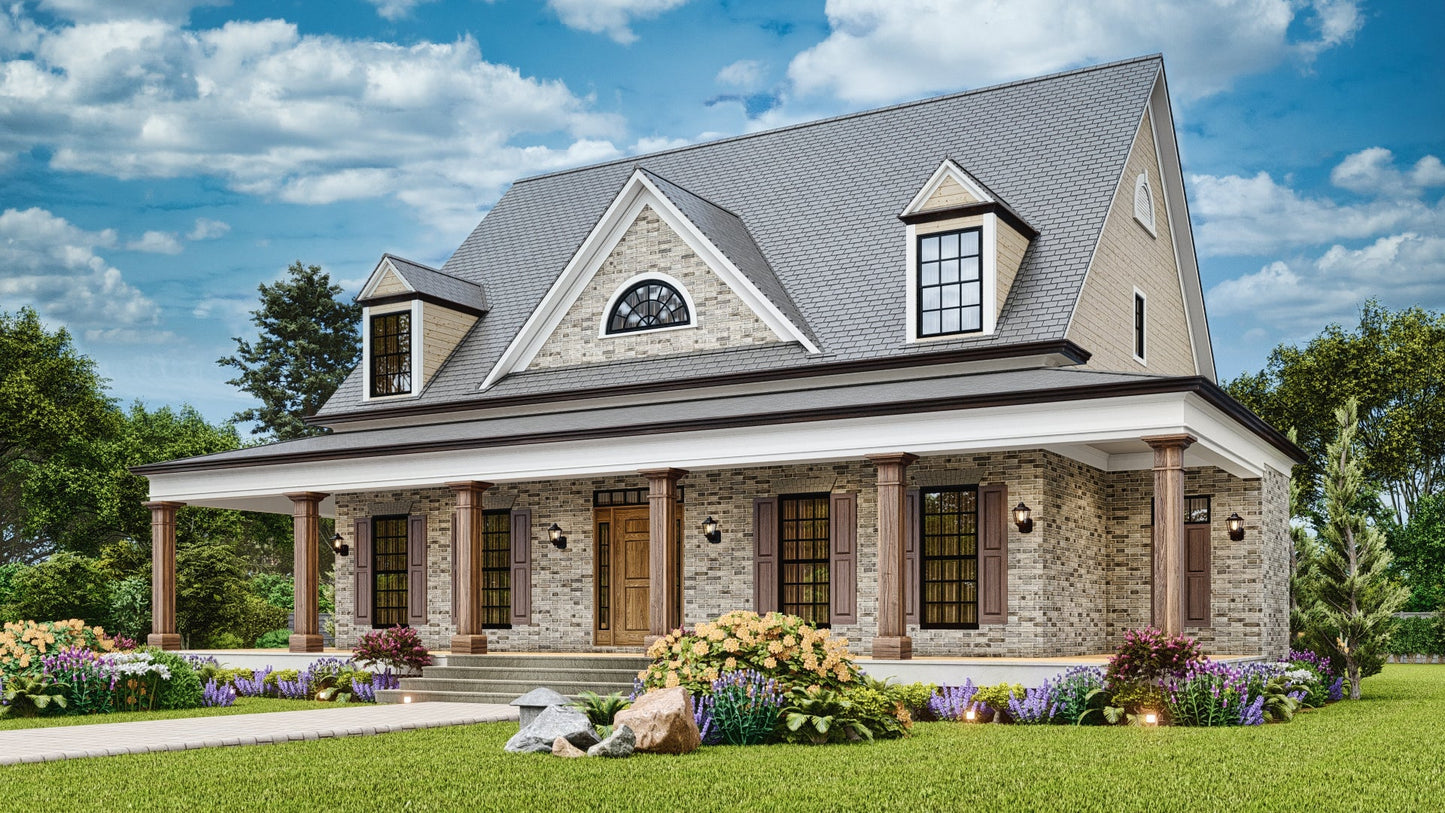

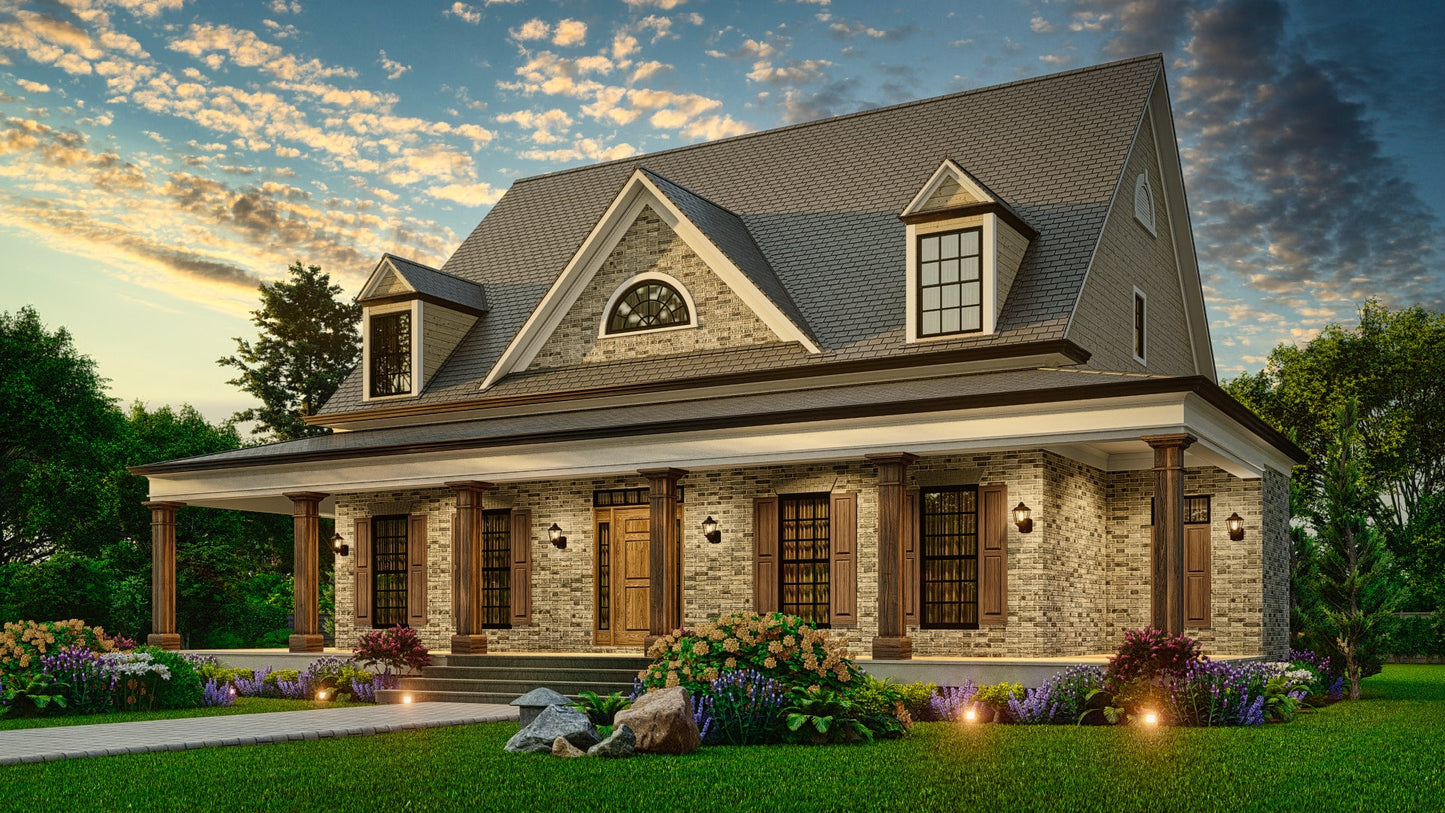

A rocking chair front porch welcomes you to this Tidewater style house plan. The two story grand room opens and flows to the kitchen and breakfast area. A center island with bar affords extra space for cooking and entertaining. The master suite is composed of dual sink vanities and a voluminous walk in closet. Four additional bedrooms and a balcony overlooking the two story grand room compose the second floor of this home. We offer floor plan modifications on all of our Tidewater style house plan designs.

What's Included In the plan

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 2683
1ST FLOOR 1733
2ND FLOOR 950
BATHS 4
BEDS 5
HALF BATHS 1
MASTER BEDROOM Master Down
WIDTH 54' 0"
DEPTH 46' 0"
W REF 54
D REF 46
