Floor Plans

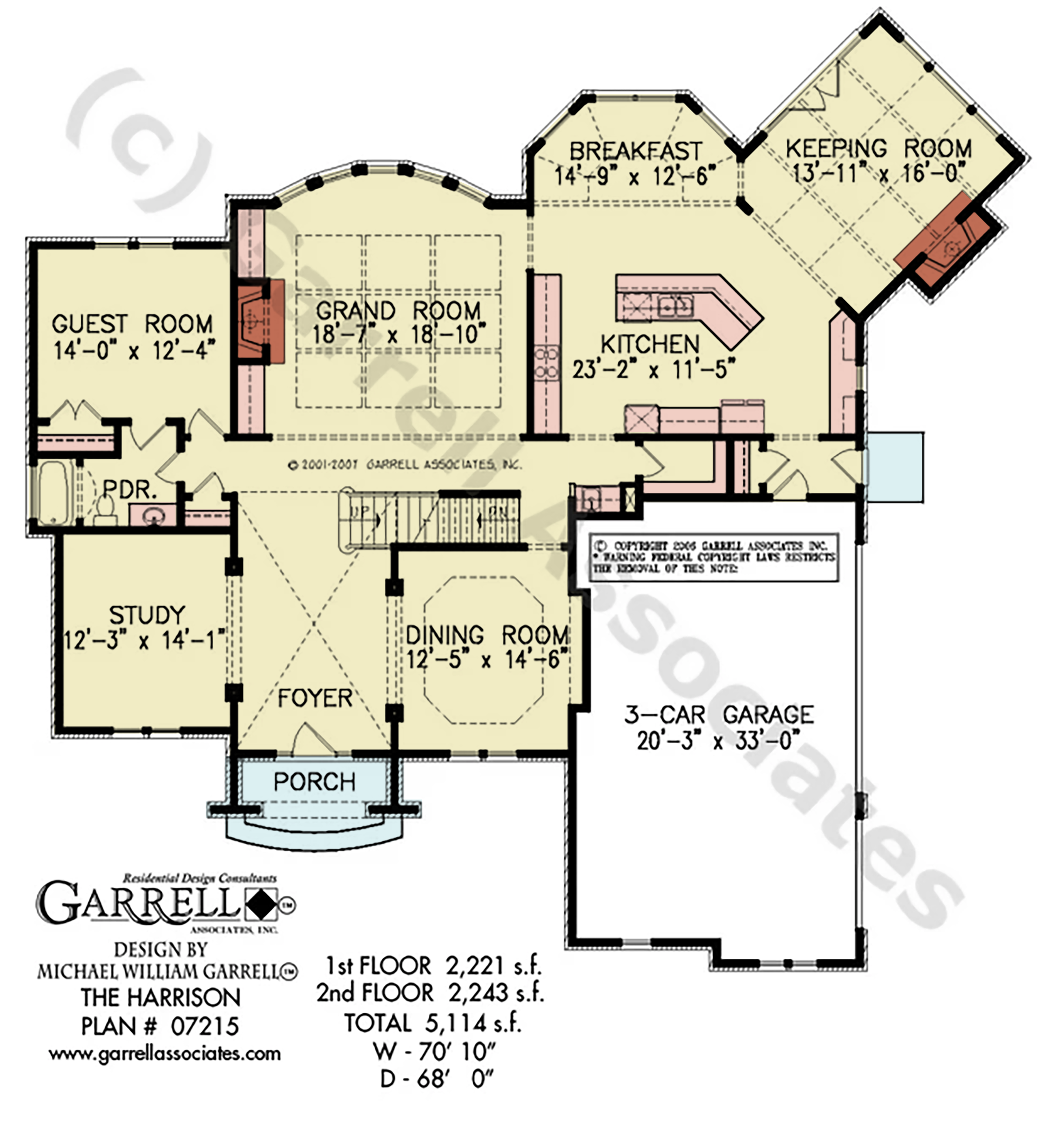

- 1st FLOOR PLAN - 07215

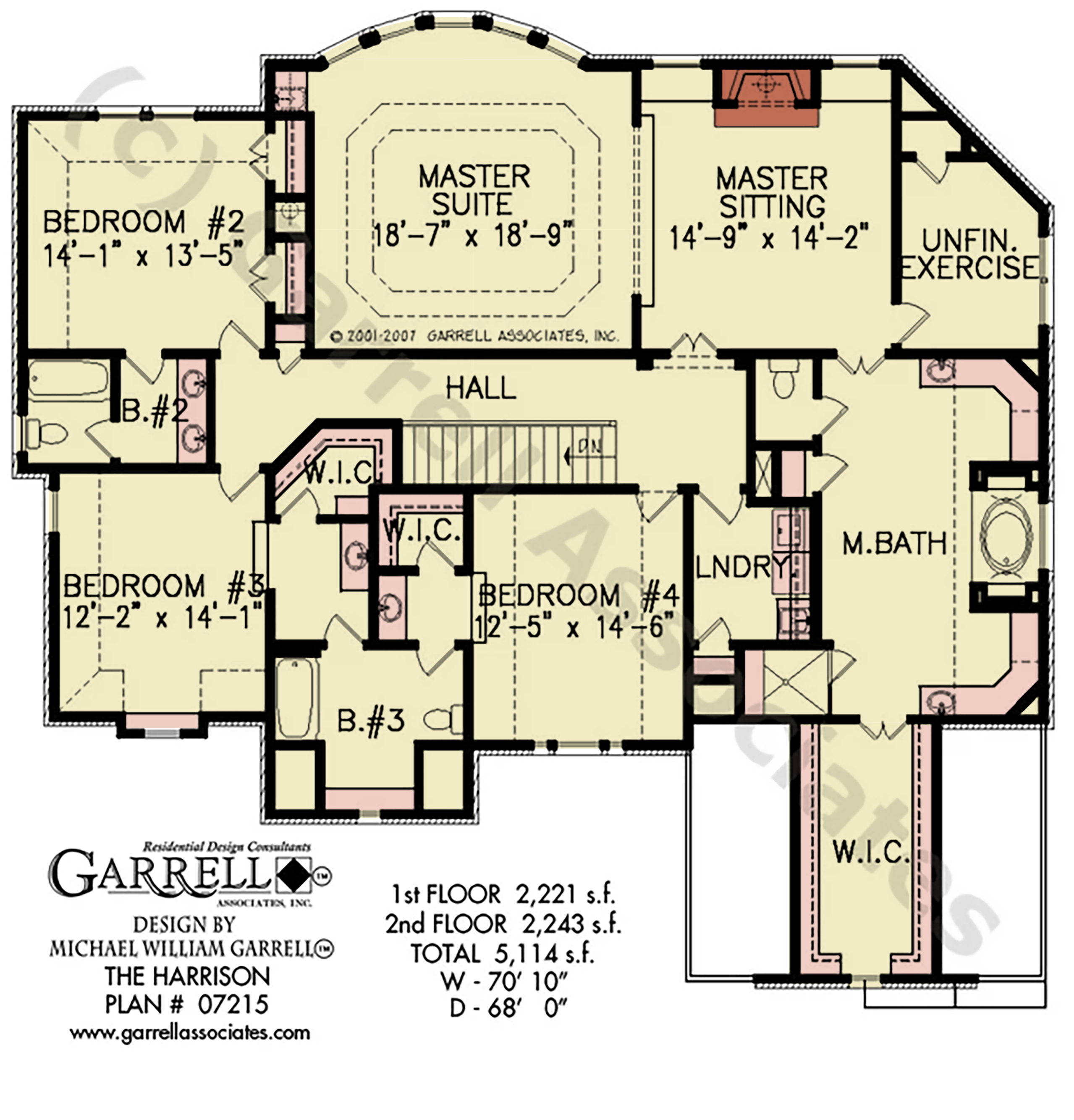

- 2nd FLOOR PLAN - 07215


Plan Details
Description
This Traditional style house plan features an island kitchen that opens to an angled keeping room and breakfast area. A spacious grand room is crafted with a fireplace and built in cabinetry. The second floor master suite is nothing short of grandiose. Features include a bedroom crafted with a tray ceiling, a large master sitting room complimented with a fireplace. A resort style bath, over-sized walk in closet and exercise room provide the ultimate in luxurious living. Three additional bedrooms round out the second level. We offer floor plan modifications on all of our Traditional style house plan designs.
What's Included In the plan

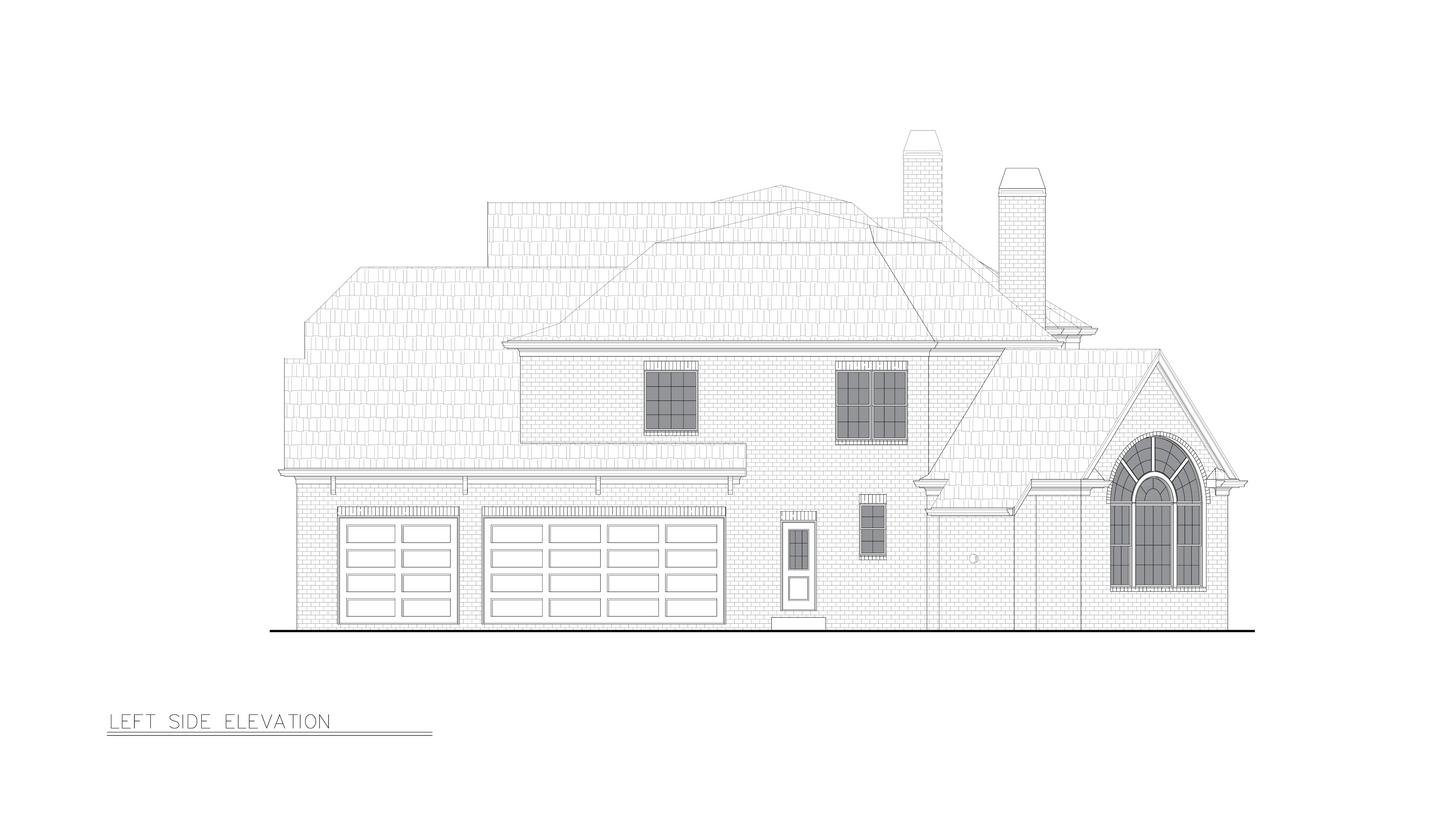

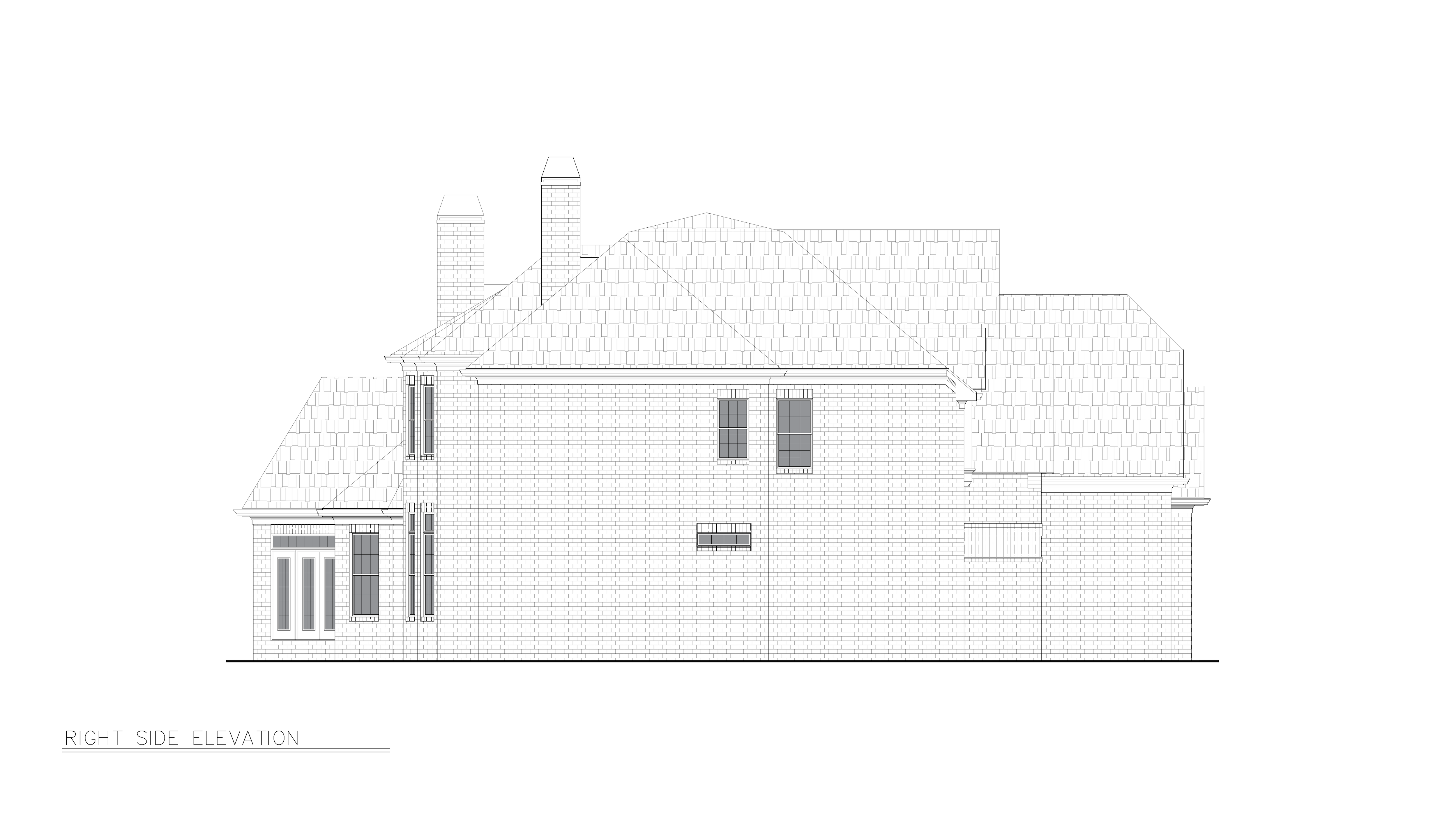

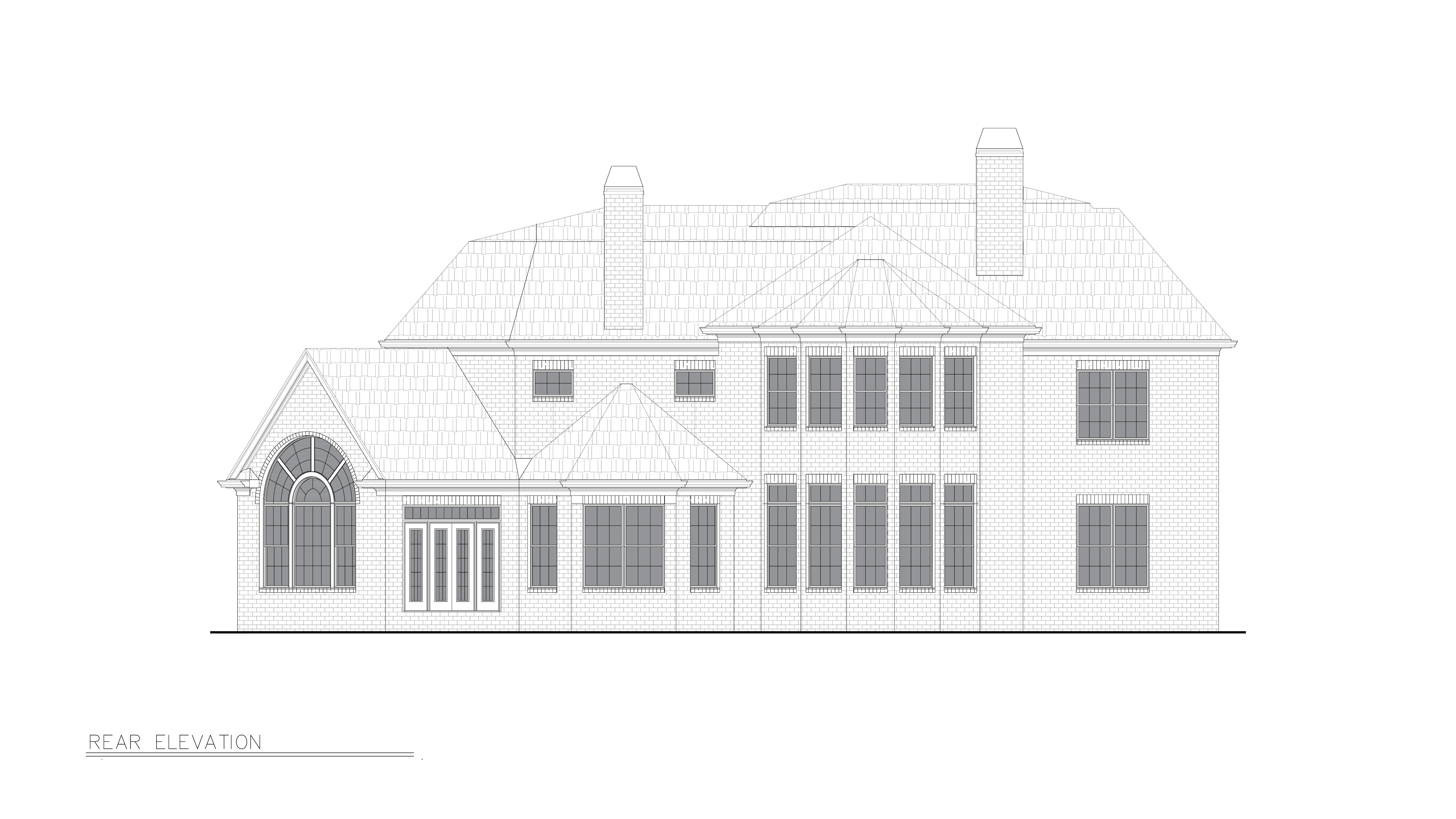

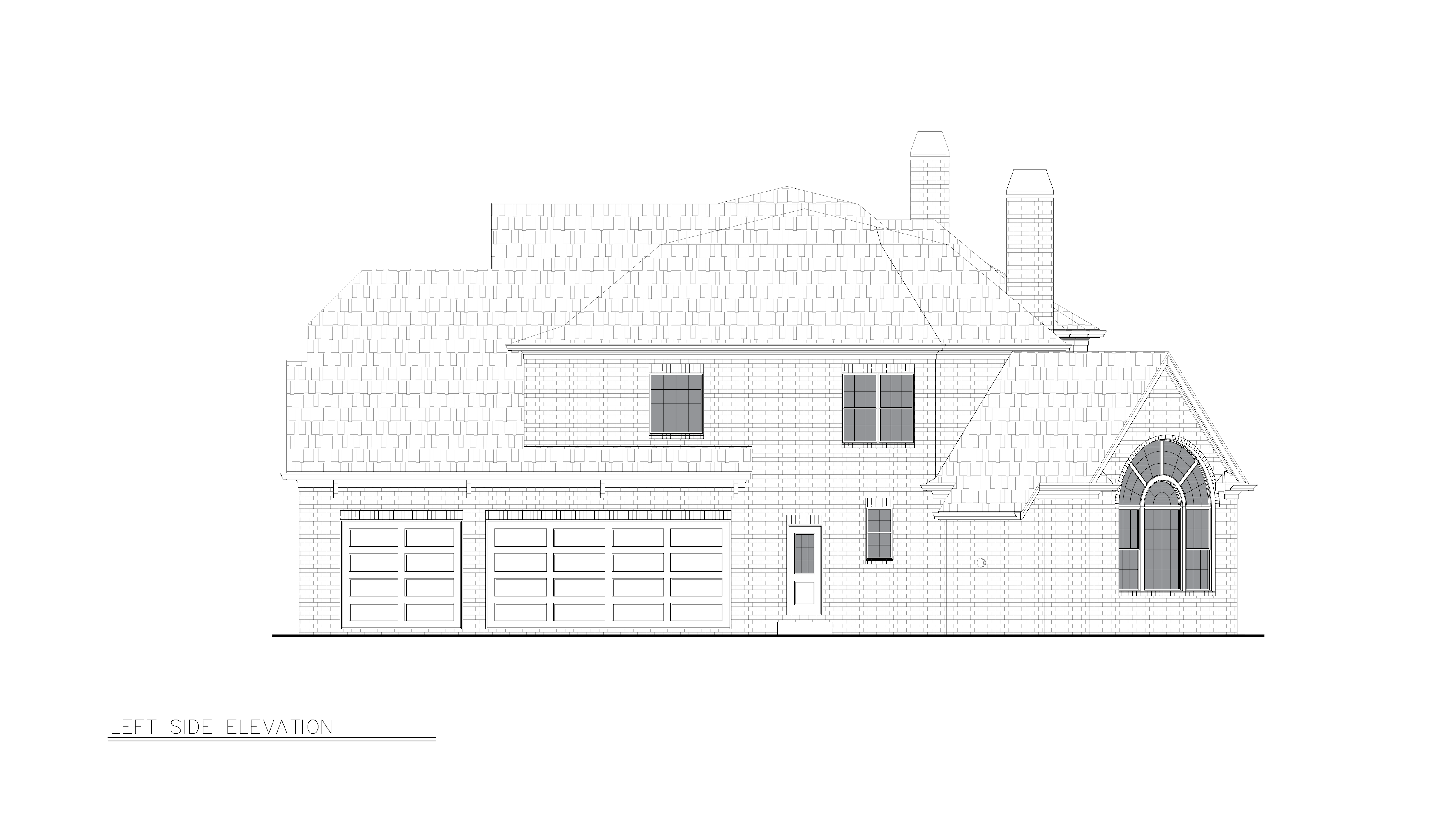

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
Additional Information
TOTAL SQFT | 5114 |
1ST FLOOR | 2221 |
2ND FLOOR | 2243 |
GARAGE | 659 |
BATHS | 4 |
BEDS | 5 |
MASTER BEDROOM | Master Upstairs |
WIDTH | 70' 10" |
DEPTH | 68' 0" |
W REF | 71 |
D REF | 68 |
