Plan 05208 Melbourne House Plan

Square Ft

Recent Awards Won:

Customer Reviews:

Regular price $1,036.00 USD
Regular price Sale price
$1,036.00 USD

Customer Reviews:

LOW price

Find A Lower Price And We'll Beat It
By 10%

Customize this plan to make it perfect for you, Risk-Free!

No upfront payment
Get first draft in 48 hours
Edit Your Plan

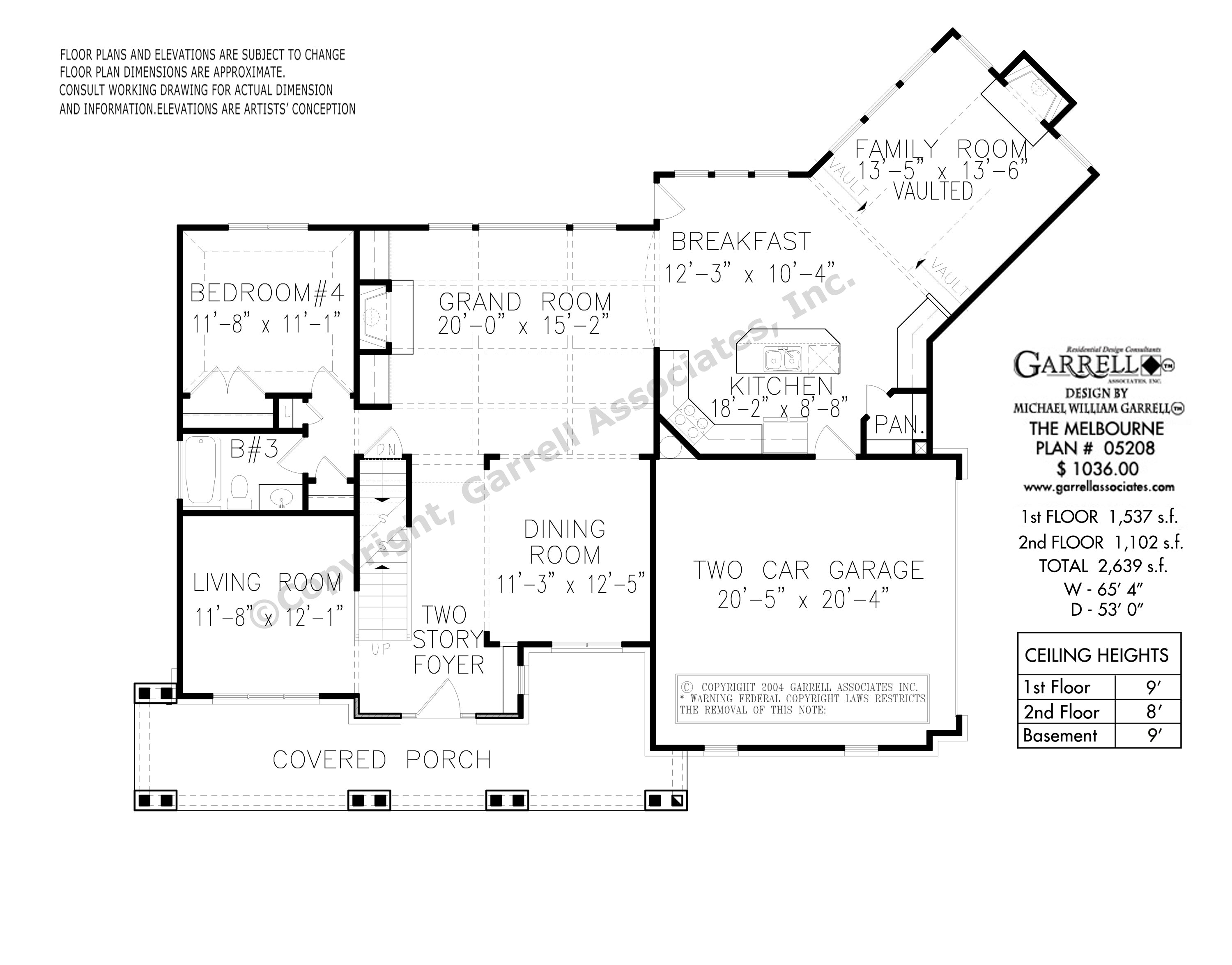

</a>1stFLOORPLAN 05208

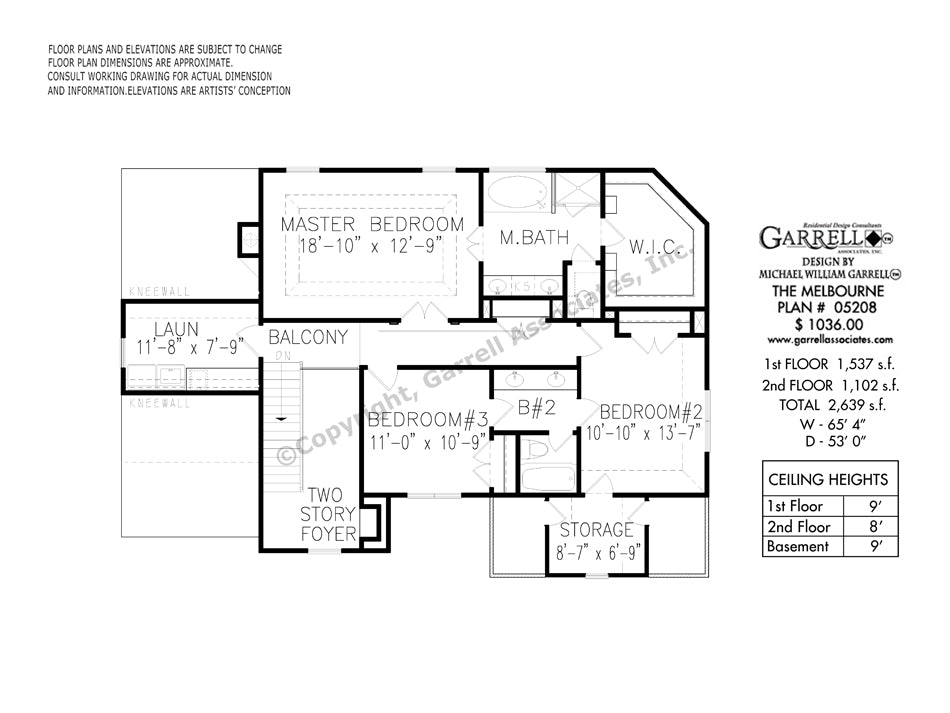

</a>2ndFLOORPLAN 05208
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.
Download The Brochure (PDF)

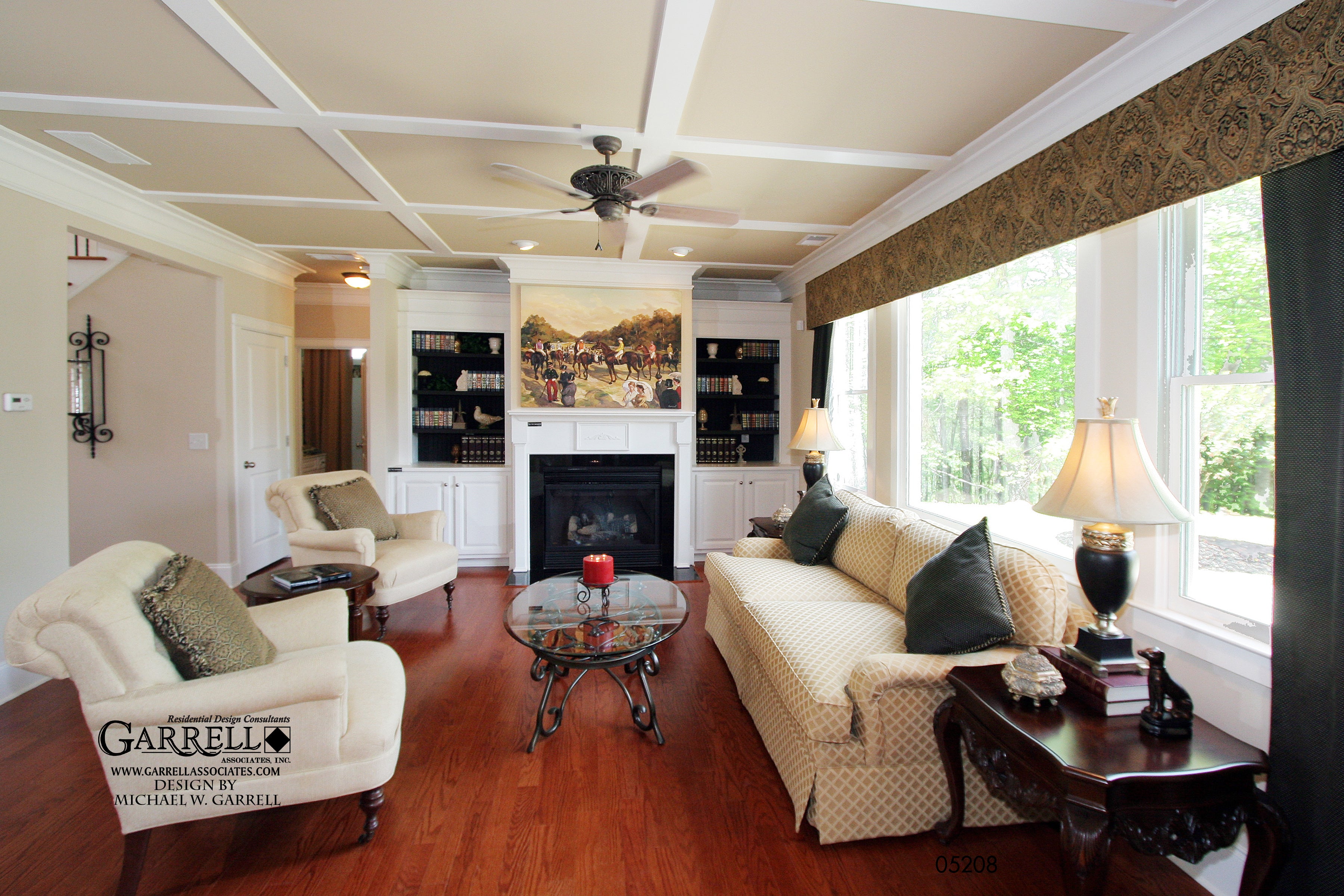

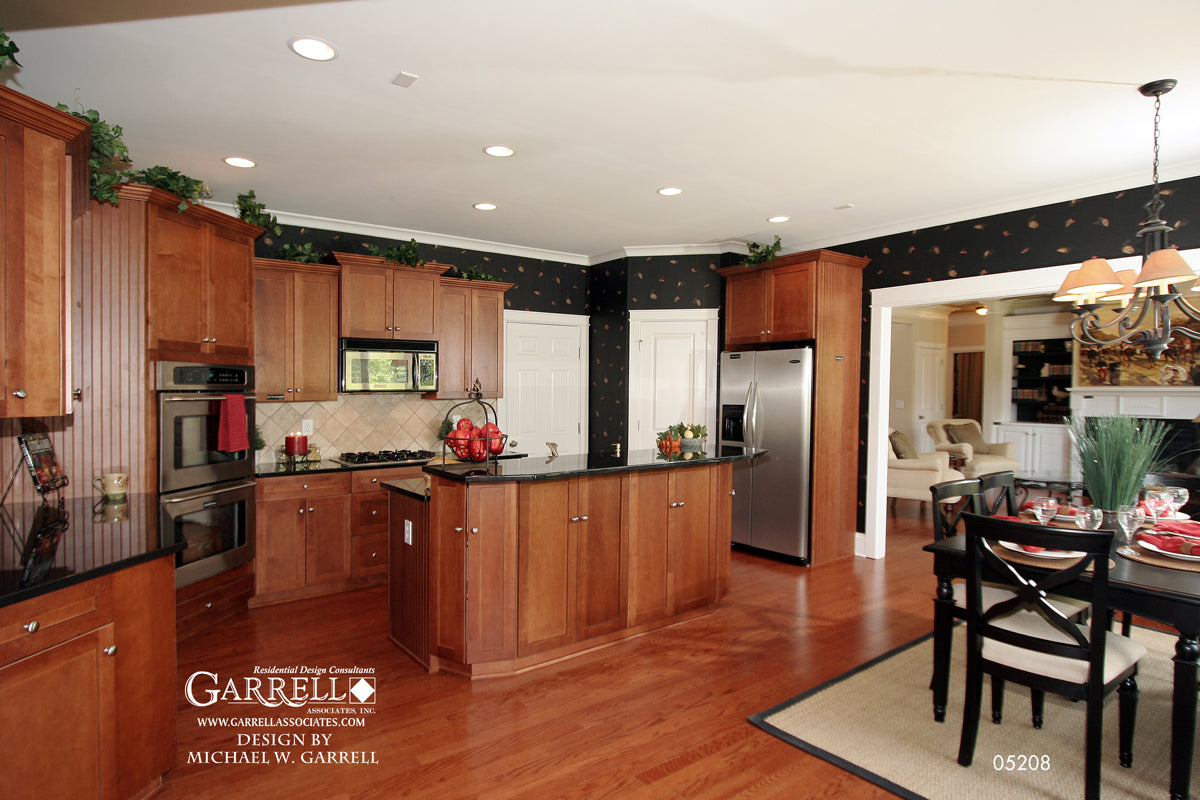

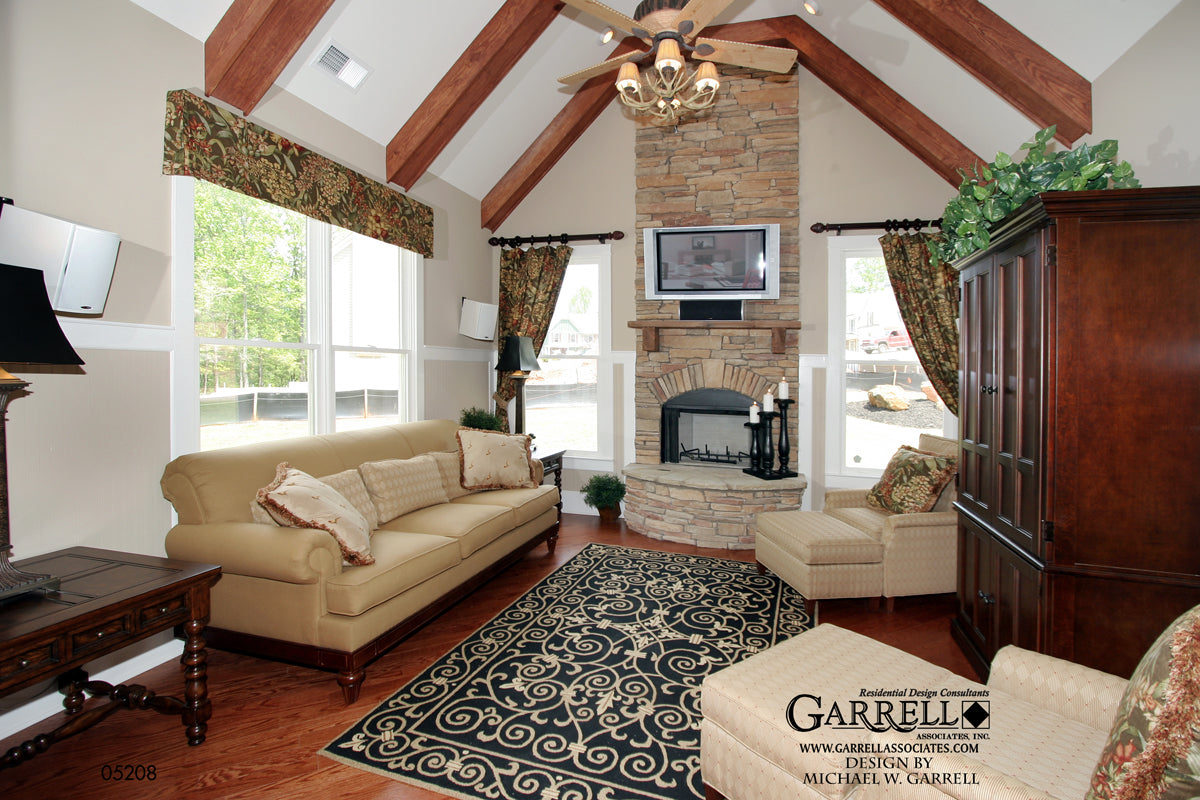

The Melbourne is a warm blend of shake and stacked stone. The rocking chair front porch, accented with twin columns give this Craftsman facade distinctive curb appeal. The Melbourne offers comfortable space with multiple living areas. An open floor plan gives a much larger feeling than the square footage suggests. The island kitchen opens to both the breakfast and angled keeping room. A beautiful stacked stone fireplace flanked by windows adds a warm centerpiece for family and friends. In traditional style, the two story foyer is flanked by a formal living room and dining room. Completing the first floor is a bedroom and full bath. On the second floor, the master bedroom, boasting a luxury bath and spacious walk in closet, is conveniently separated from two additional bedrooms by the hallway. The two bedrooms share a bathroom having a dual sink vanity and private tub and toilet room. We offer floor plan modifications on all of our master up house plan designs. Have a question about any of our house plans, call us at 1 (888) 814 1494.

What's Included In the plan

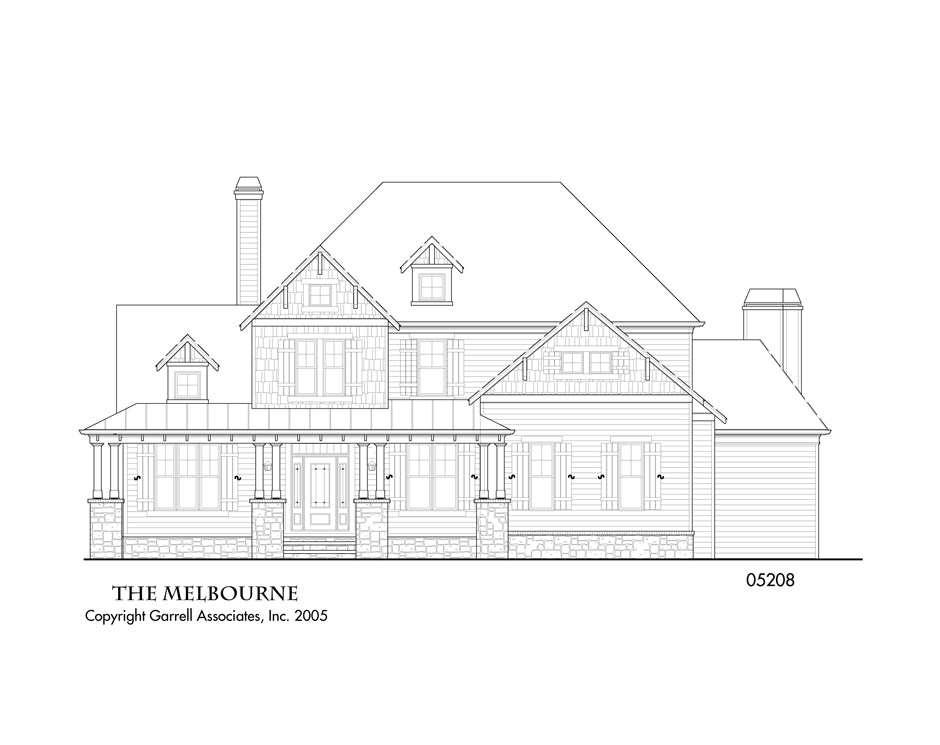

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

1ST FLOOR 1537
2ND FLOOR 1052
MASTER BEDROOM Master Upstairs
WIDTH 63' 4"
DEPTH 49' 10"
W REF 63, 64
D REF 49, 50
