Plan 98027 St. Clair House Plan

5
Bedrooms
4
Bathrooms
3317
Square Ft
2
Stories

Recent Awards Won:

Customer Reviews:

Customize this plan to make it perfect for you, Risk-Free!

Edit Your Plan

Regular price $1,327.00 USD
Regular price Sale price
$1,327.00 USD

Customer Reviews:

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

1stFLOORPLAN

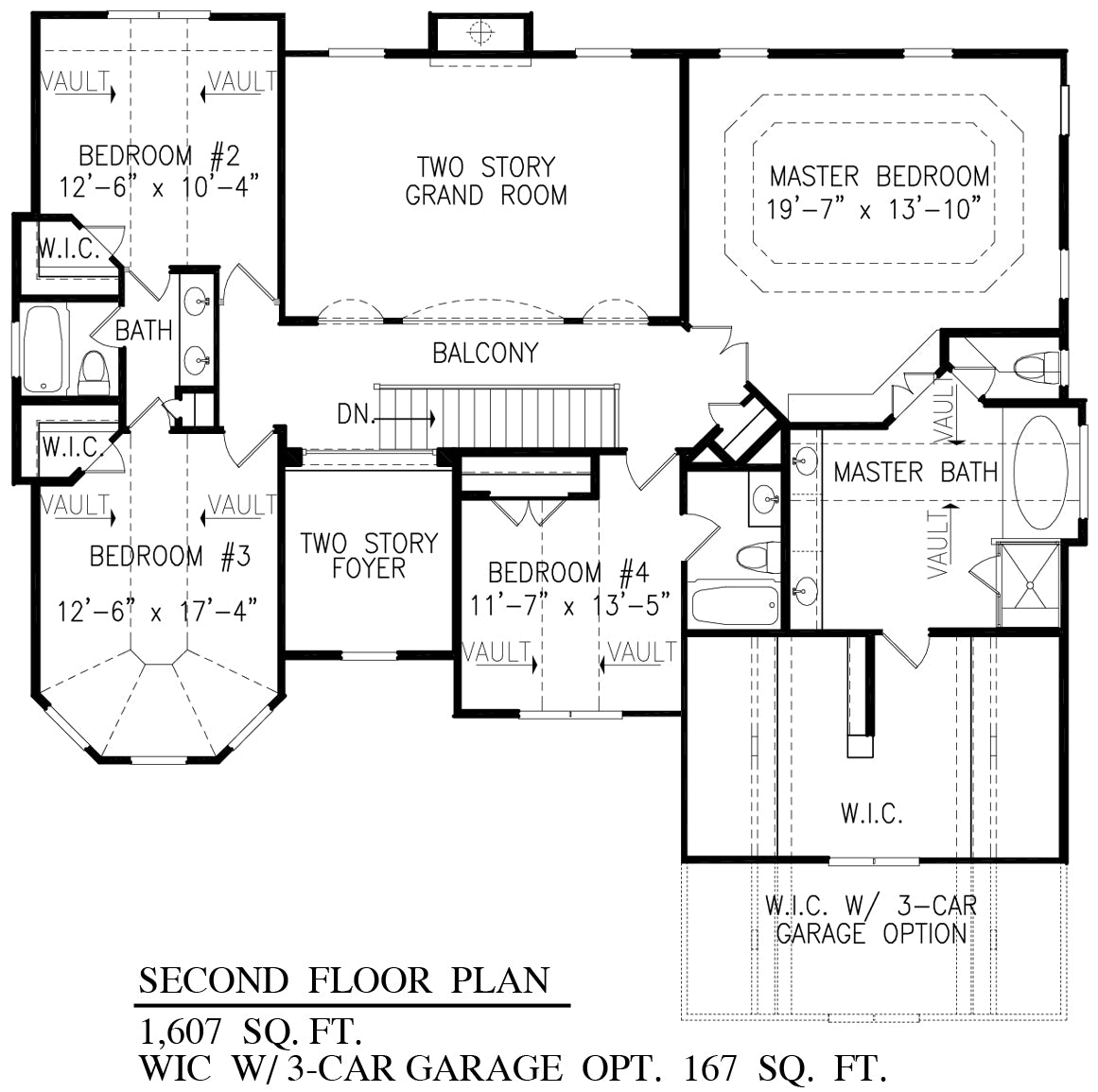

2ndFLOORPLAN
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

A two story foyer opens to an elegant formal dining room and living room. Complete with a beautiful fireplace the two story grand room opens and flows to the kitchen. A fifth bedroom and a two car garage complete the first floor of this Traditional style house plan. The second floor master suite features distinctive tray and vaulted ceilings, a lavish master bath and an over sized walk in closet. Triple arched openings from the balcony overlook the two story grand room. Three additional bedrooms detailed with vaulted ceilings round out this house plan. We offer floor plan modifications on all of our Traditional style house plan designs. Have a question about any of our house plans, call us at 1 (888) 814-1494.

What's Included In the plan

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 3317
1ST FLOOR 1710
2ND FLOOR 1607
GARAGE 391
FOUNDATION OPTIONS Basement
BATHS 4
BEDS 5
MASTER BEDROOM Master Upstairs
WIDTH 49' 10"
DEPTH 42' 1"
W REF 54, 55
D REF 42, 43
