Tres Le Fleur | Plan GA421-A
Here is what is included with your Plan purchase:
1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
1. How much does it cost to have modifications done to home plans?
Costs to modify a home plan can vary a lot, depending on the particular plan and the kinds of changes you are looking for. Simple modifications like: Enlarging a bathroom or Removing a wall to create an open floor plan would cost a few hundred dollars, to more complex ones like: adding extra bedrooms or adding a second story to a single-story home can be thousands of dollars.
2. Do you modify plans and what is your procedure?
Yes, we modify plans according to your requirements and needs. Its risk free, and we provide quotes within 48 hours. Please click on the orange "Customize this Plan" button below to start.
3. Are there photographs available of the home I am interested in?
Many of the homes featured have accompanying photographs. If there are no photographs posted on the plan page for a particular home, a render is available. New photos are added to the site regularly as they become available. (Note: The photographs displayed online may differ slightly from the actual plans, depending on modifications made by the owner/builder. Please refer to the floor plan for the accurate layout of the home.)
4. Can I get an address where this home plan has been built, so I can see the finished home?
In order to maintain our customers' privacy, we do not track this information. However, we have photographs for many of our home plans.
5. How is the living square footage of a home plan calculated?
We typically calculate square footage from outside the exterior frame wall, not including features like decks, porches, patios, screened porches, verandas, fireplaces, garages, basements, attics, future space, or bonus rooms. This means a livable space that is heated and finished (with drywall, paint, and carpeting, for example). If you need to clarify the square footage of a particular home plan, please contact us.
6. Will your plans be signed or stamped by an architect or engineer?
Our plans, as all architectural plans sold, will not be signed/stamped by the engineer or architect due to variations in site conditions and different local building codes and zoning regulations for each region. For your own safety, your builder or local engineer is responsible for following codes addressing: site conditions, Wind, Storm Surge, Snow Loads, Seismic and Soil Stability, etc. The builder must be responsible for this procedure.
Additional information
| Total Sqft | 2499 |
| 1st Floor | 2499 |
| Garage | 829 |
| Baths | 3 |
| Beds | 3 |
| Half Baths | 1 |
| Master Bedroom | Master Down |
| Width | 106' |
| Depth | 72' |
| W Ref | 106 |
| D Ref | 72 |
| Ridge Height | 30' |
PDF (Single License)
PDF package includes working drawings, license to build once, and copyright release for minor changes. PDF file will be emailed promptly after purchase.
CAD (Single License)
CAD package includes working drawings in AutoCAD format, license to build once, and necessary files for more significant modifications. It is the preferred file format for builders. CAD file will be emailed promptly after purchase.
Choose a building foundation for your home. Foundation provides the stability of the home’s structure from the ground.
Basement - This is the deepest form of foundation for a house and can be converted to storage or living areas.
Slab - This foundation is made of concrete poured directly on a solid ground and reinforced with steel rods.
Crawlspace - This consists of short foundation walls that stand on footing to elevate the house from the ground. The space can be used for wiring, plumbing and storage.
Right-Reading Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Low price guarantee
Find A Lower Price And We'll Beat It By 10%
Additional information
| Total Sqft | 2499 |
| 1st Floor | 2499 |
| Garage | 829 |
| Baths | 3 |
| Beds | 3 |
| Half Baths | 1 |
| Master Bedroom | Master Down |
| Width | 106' |
| Depth | 72' |
| W Ref | 106 |
| D Ref | 72 |
Couldn't load pickup availability
Customize this plan to make it perfect for you
- No upfront payment
- Risk-free
- Get your quote in 48 hours!
Cost to build your dream home
- Give us zip/postal code
- Get a FREE Instant quote !
- Sent to your email
Modification Request
In order to receive your free modification quote, please fill out the from below. Be as detailed and descriptive as possible.
You have 2 options:
1. Provide the request in text form, if the modifications are simple.
for example: add a jack-and-jill sink in bedroom 2
2. Provide a sketch, using the floorplan, of your requested modifications, if the modifications are more complex.
- No upfront payment
- Get fist draft in 48 hours
Cost to Build of your dream
Say goodbye to the guesswork of construction costs with our custom cost estimator.
It's Accurate & Up to date.
Our estimator accounts for the house plan, location, and building materials you choose, with current market costs for labor and materials.
It's Fast & Flexible.
Receive a personal estimate in two minutes instead of 2 days as many competitors offer.
It's Inexpensive.
Why pay up to $50 for a cost estimate when you can get it for free with our website? We believe in empowering our customers with knowledge and providing them with the tools they need to make informed decisions. That's why we offer our cost estimator at no charge.
Estimate the construction cost instantly
Customize this plan to make it perfect for you
- No upfront payment
- Risk-free
- Get your quote in 48 hours!
Cost to build your dream home
- Give us zip/postal code
- Get a FREE Instant quote !
- Sent to your email
2858
Homes designed
10431
Homes built
31
Years of experience
I design the homes that my clients want to build, not the home I want them to build
Buy with peace of mind knowing that your home has been designed by award winning designer Michael W. Garrell*. Mike has earned more than 200 professional awards, with numerous Street of Dreams® honers. One of his many show homes has earned him the prestigious “Best in American Living Award” (BALA) from Professional Builder magazine.
You may also like
-
Cedarwood Cottage A
3Beds3Baths2890SQFTStapleton Cottage House Plan (B&B)
3Beds2Baths2743SQFTStapleton Cottage House Plan
3Beds2Baths2743SQFTBlossom Hill House Plan
4Beds4Baths3849SQFTSunbrook House Plan
3Beds4Baths6387SQFT- Choosing a selection results in a full page refresh.
The craftsman Tres Le Fleur ranch house plan is a striking cottage intertwined with the softness of a country home. Upon arrival you are struck by its amazing curb appeal. There are large and swooping roofs, adorned with elegant gables & shutters. Stone, siding and cedar shakes blend beautifully together to create a unique look for this rustic home plan. The wide open floor plan of this House Style is a home buyer's answer when looking for an affordable Home with plenty of room.
Through Craftsman pillars, you will approach a full covered front porch. This Country Style Front Porch is ideal for greeting guests and for peaceful evenings. Inside, the heart of the impressive Tres Le Fleur Ranch House Plan can be found the open layout that allows one to see completely through the Home, onto the Covered Porch. Once inside, the Foyer of the craftsman style ranch home, there is a Niche to your right for a personalized Home grown flower arrangement.
This one-of-a-kind Craftsman Style Ranch Home takes on a unique twist. Straight ahead you will find a Gallery that draws your attention; introducing an extensively large Designer Kitchen.
Boasting a commanding Multi-Purpose freestanding island
Floating ceiling cabinets
An exclusive view of the front Landscaped property

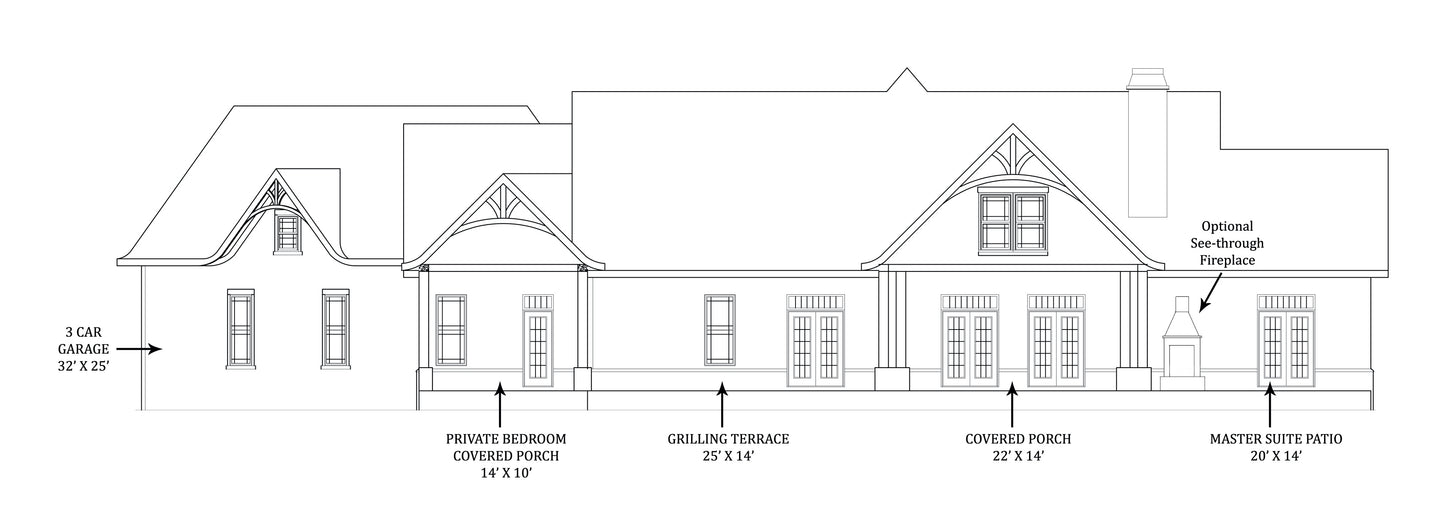

Directly across from the Kitchen, is a vast two-story great room which displays in grand splendor a two story fireplace with wood beams. The Casual Dining Area opens up to draw family and guest near. This Craftsman Style Ranch Home is laid out for family entertaining. Each of the rooms above; flow out into multiple covered Porches & a Grilling Terrace.
Making our way on around the Tres Le Fleur country home plan, we find an all-inclusive Laundry Room adjacent to an Entry Hall from the Garage with a large sink and folding table.
The Garage includes back steps to a Future Apartment for in-laws, teenagers, or boom-a-rang children, or it can be used for storage.
Two additional Bedrooms, which would be perfect for children and guests, can be included. Most rooms have access to all the outdoor living areas where activities may take place on the Grilling Terrace & covered Patio.
The Craftsman Ranch calls us around to the left of the home where, situated for privacy the Master Bedroom can be seen. The luxurious Master Suite has eloquent trey ceilings The En-Suite is full of grandeur such as:
A modern one-of-a-kind glass shower
An oversized lounging tub
His & hers built-in cabinets within the closets
A cabinet by her vanity for extra appliances and make-up
Private access to a Patio
A surprise feature is the hidden stairway curling around the fireplace in the Great Room. This staircase shows open railings as it wraps around the Fireplace. Homeowners are offered a second-story future space, for a potential loft, living area with a Bedroom and walk-in closet, or for use as storage.
This Craftsman Style Tres Le Fleur Home Plan is ideal for a lake, mountain or scenic backyard lot. The Country Craftsman Ranch home plan will welcome your family and guests with peaceful Cottage comfort.
