Plan 97086 Mindemere
Find A Lower Price And We'll Beat It

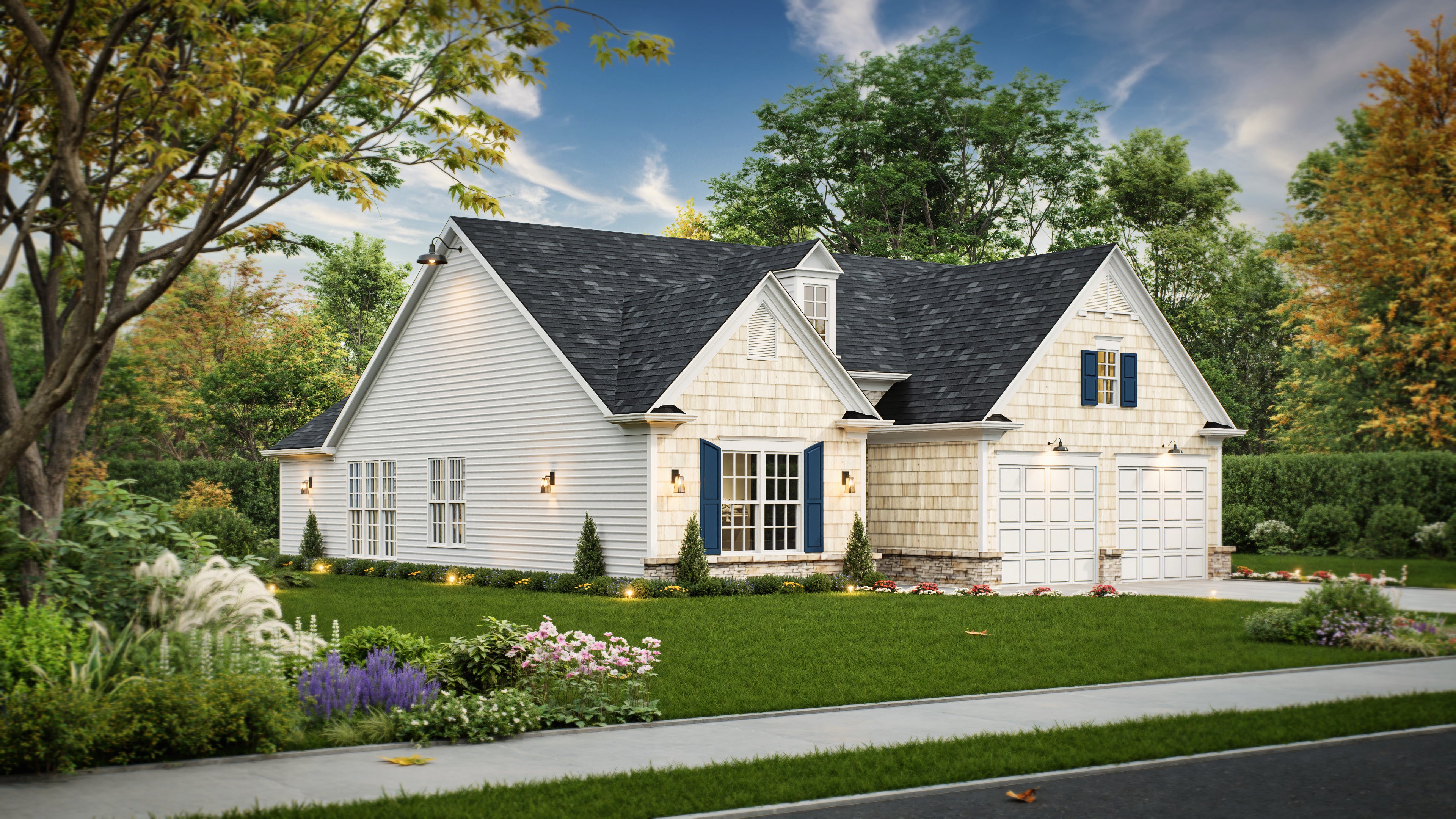

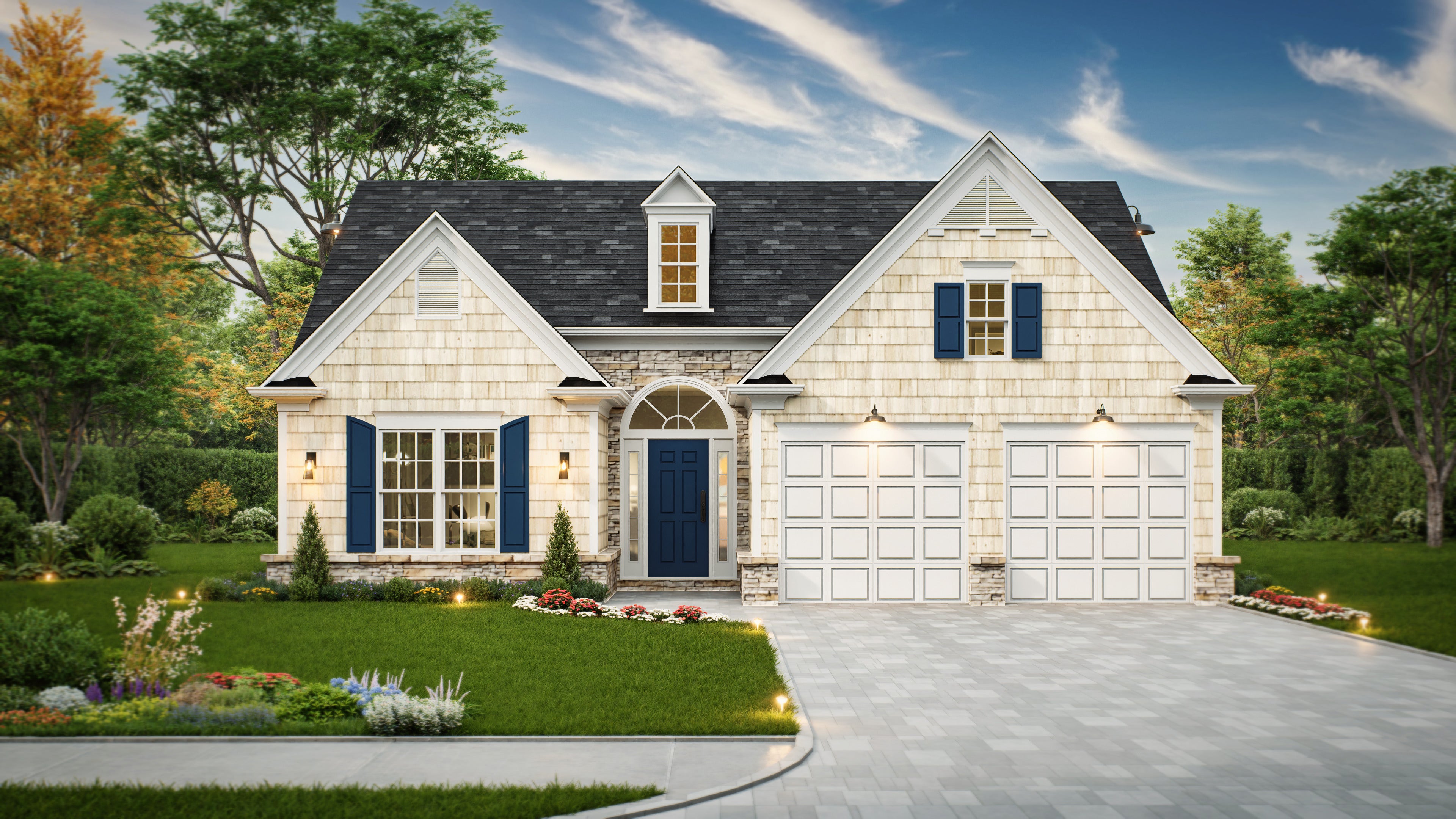

Beautifully accented with shake and stone this Craftsman style house plan yields alluring curb appeal. Efficient design of space makes this home a feel larger than the stated square footage. A vaulted grand room with fireplace and master bedroom with tray ceiling are two features of this cozy house plan. We offer floor plan modifications on all of our Traditional style house plans. We offer floor plan modifications on all of our Traditional style house plans.
What's Included In the plan

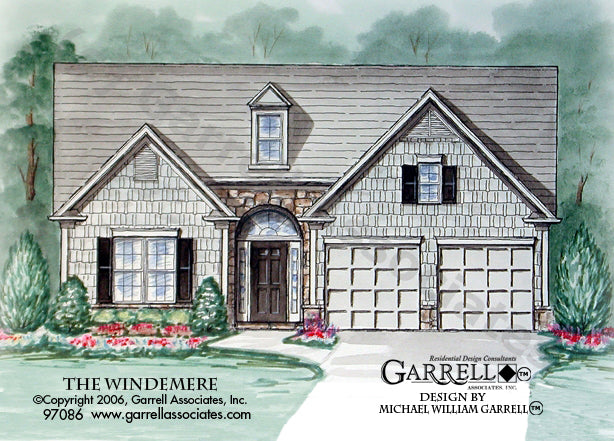

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

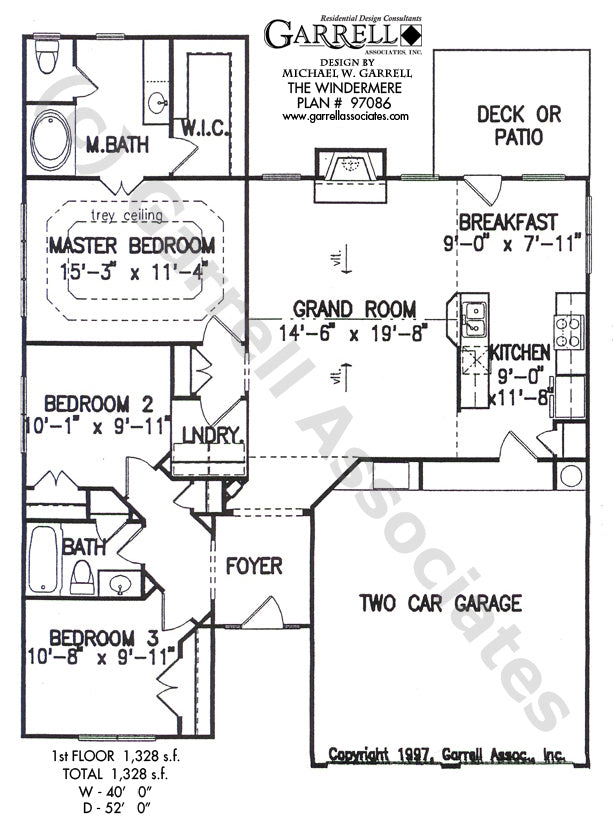

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
|MASTER BEDROOM||Master Down|
