Plan 07212 Winslow House Plan

5
Bedrooms
5
Bathrooms
6274
Square Ft
2
Stories

Regular price $2,545.00 USD
Regular price Sale price $2,545.00 USD
Sale Sold out

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Modify This Plan

Need to make changes to this home plan? We will deliver you a free price quote within 2 to 4 business days.

Edit Your Plan

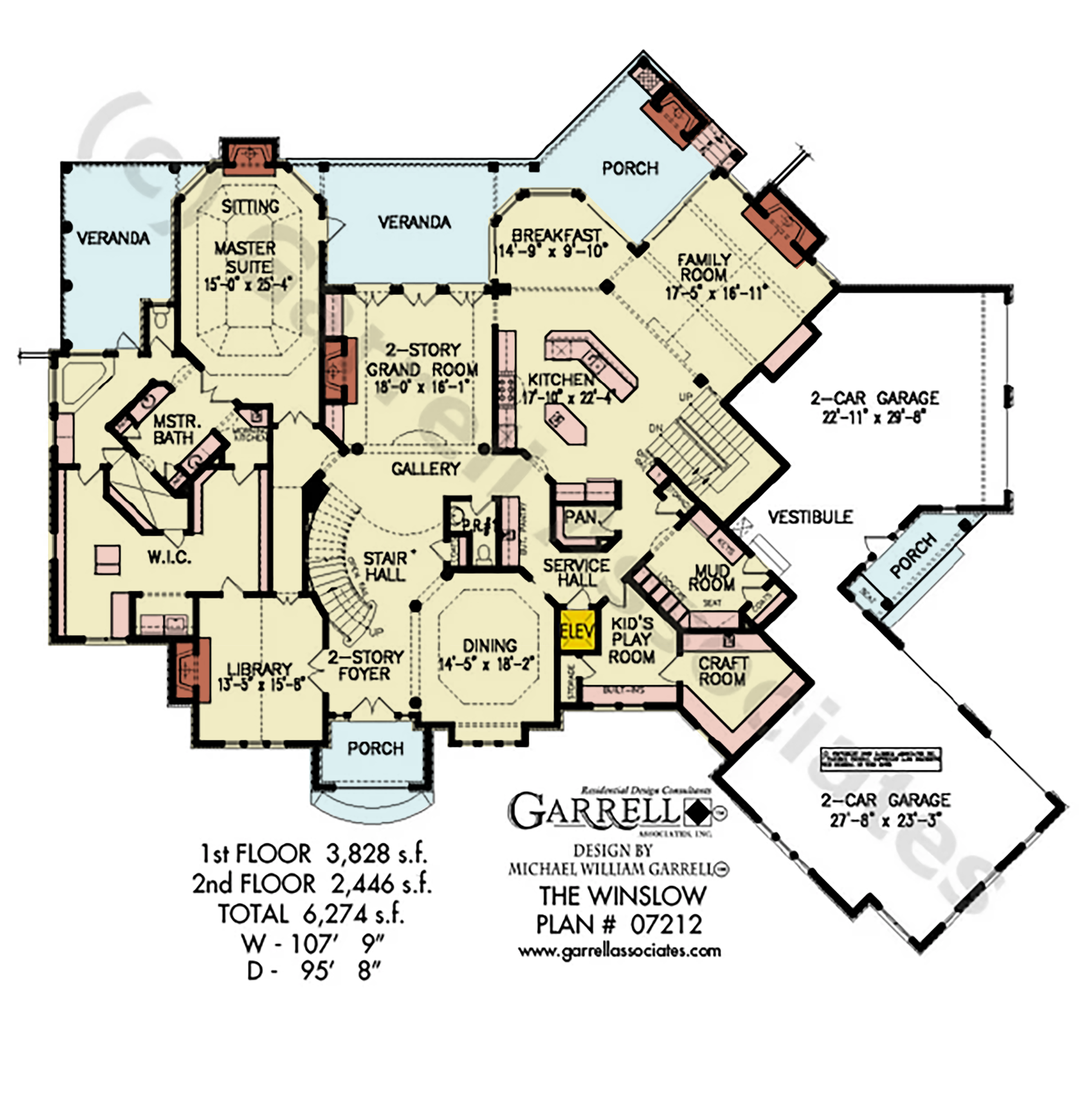

1stFLOORPLAN 07212

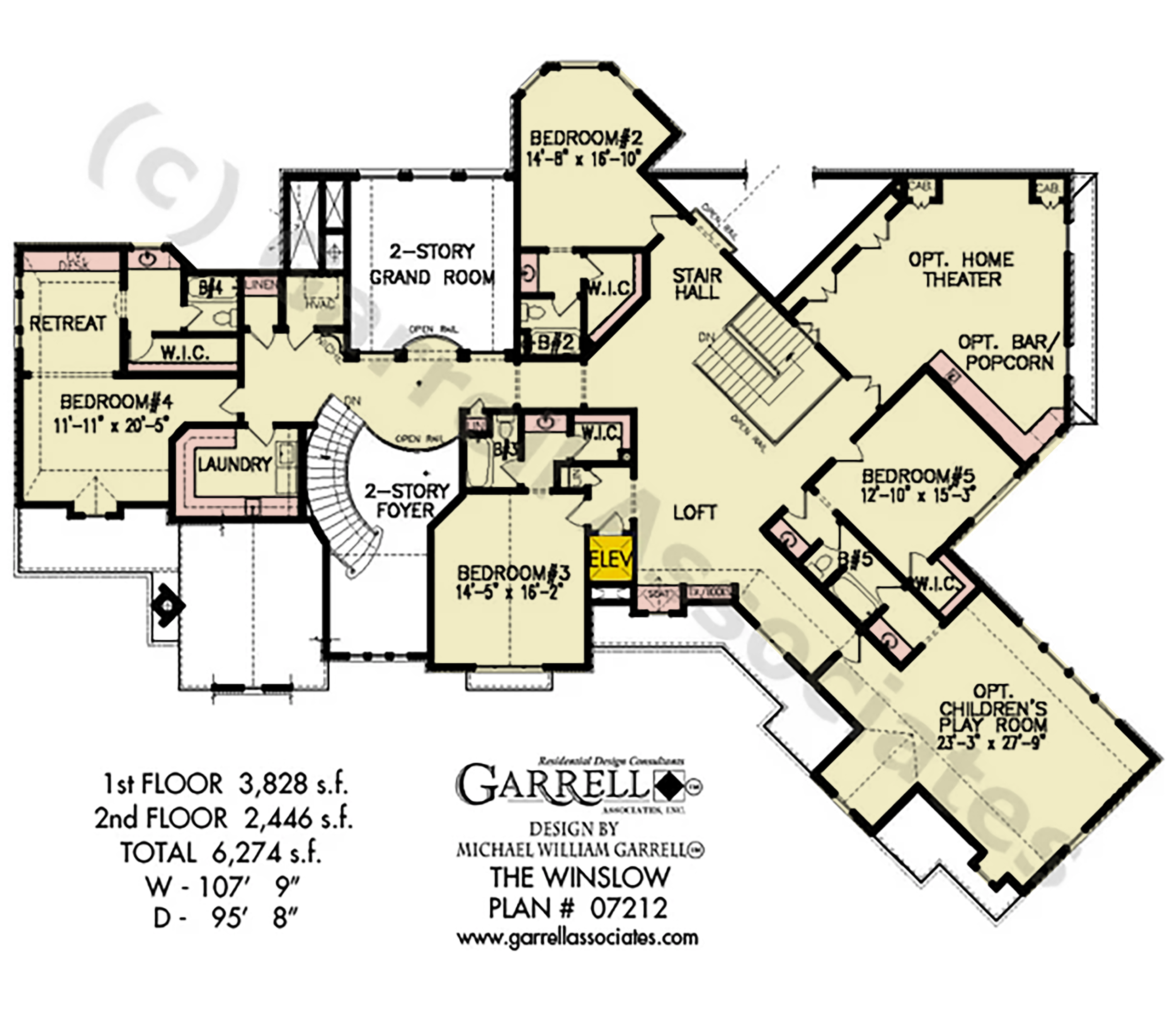

2ndFLOORPLAN
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

For the homeowner that appreciates a multitude of living spaces this home is sure to please the most discriminating homeowner. The first floor consists of a two story grand room and family room complimented with appealing fireplaces. A luxurious master suite is highlighted by a sitting area and a fireplace. Completing the master suite is a lavish bath, voluminous walk in closet and private access to a veranda. At the rear of this home and adjacent to the two story grand room a covered porch accented with a fireplace and a veranda provide ideal space for outdoor entertaining. The second floor of this Traditional style house plan features four bedrooms, a home theater and an optional childrens play room. We offer floor plan modifications on all of our Traditional style house plan designs.

What's Included In the plan

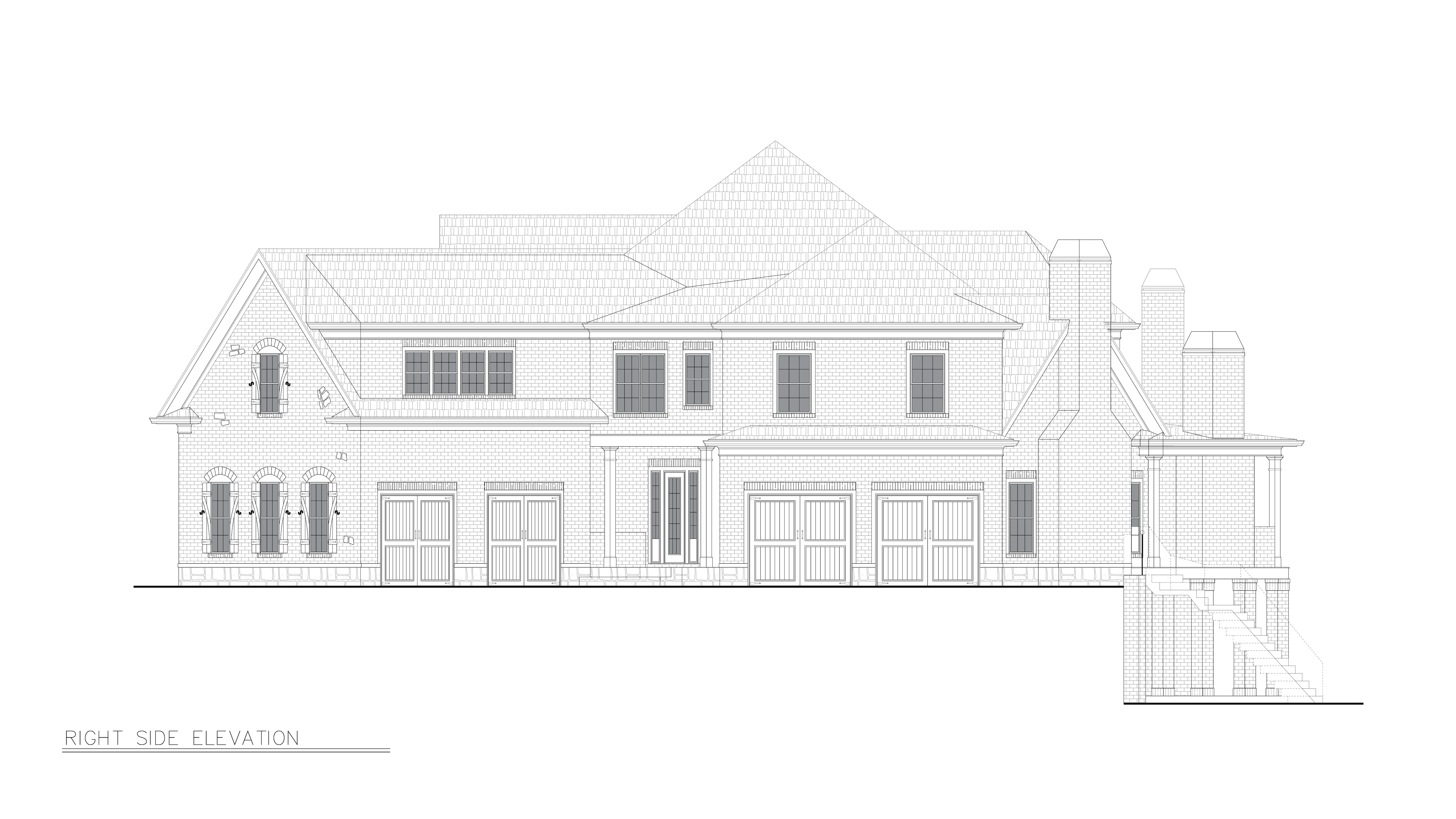

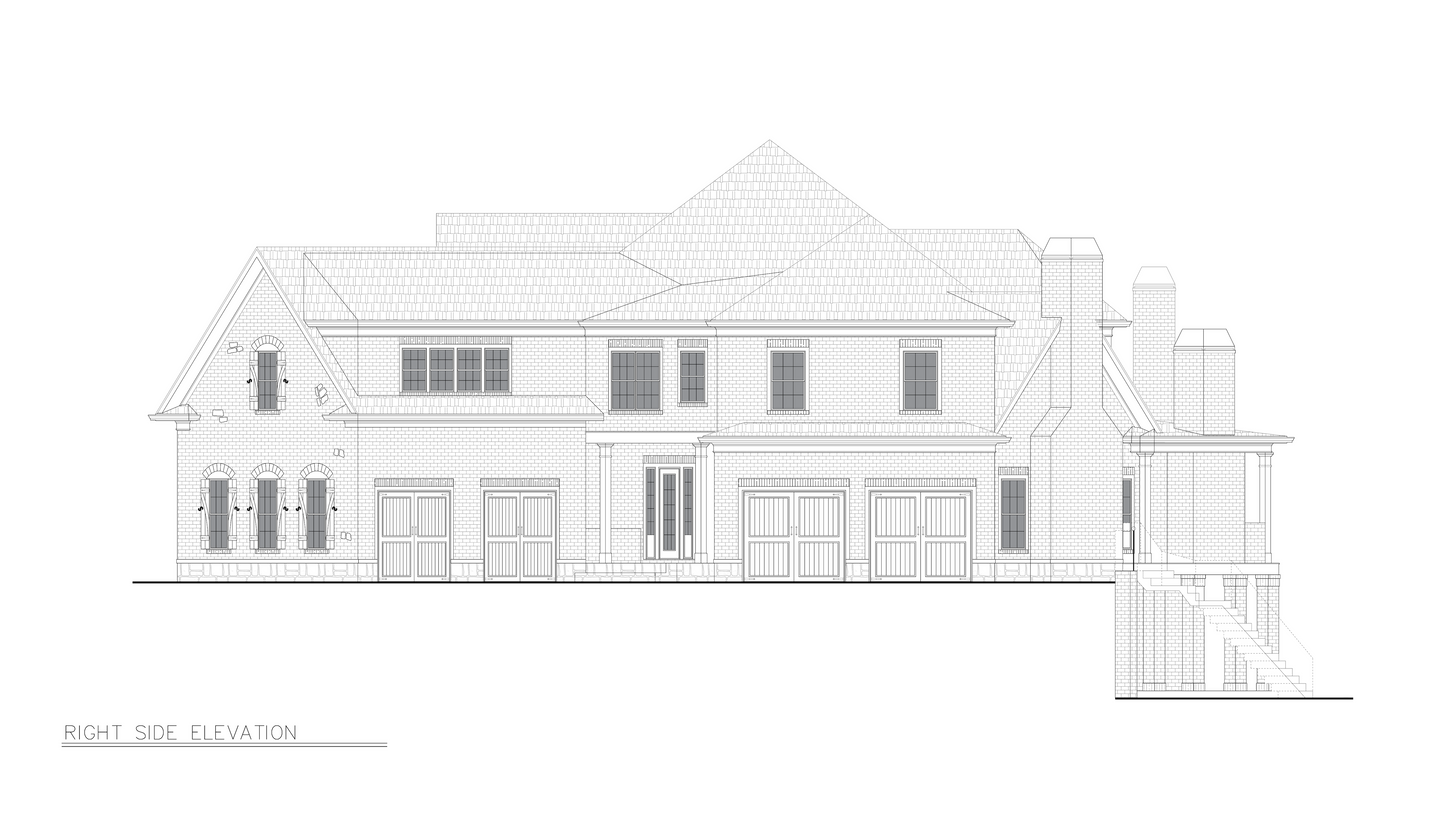

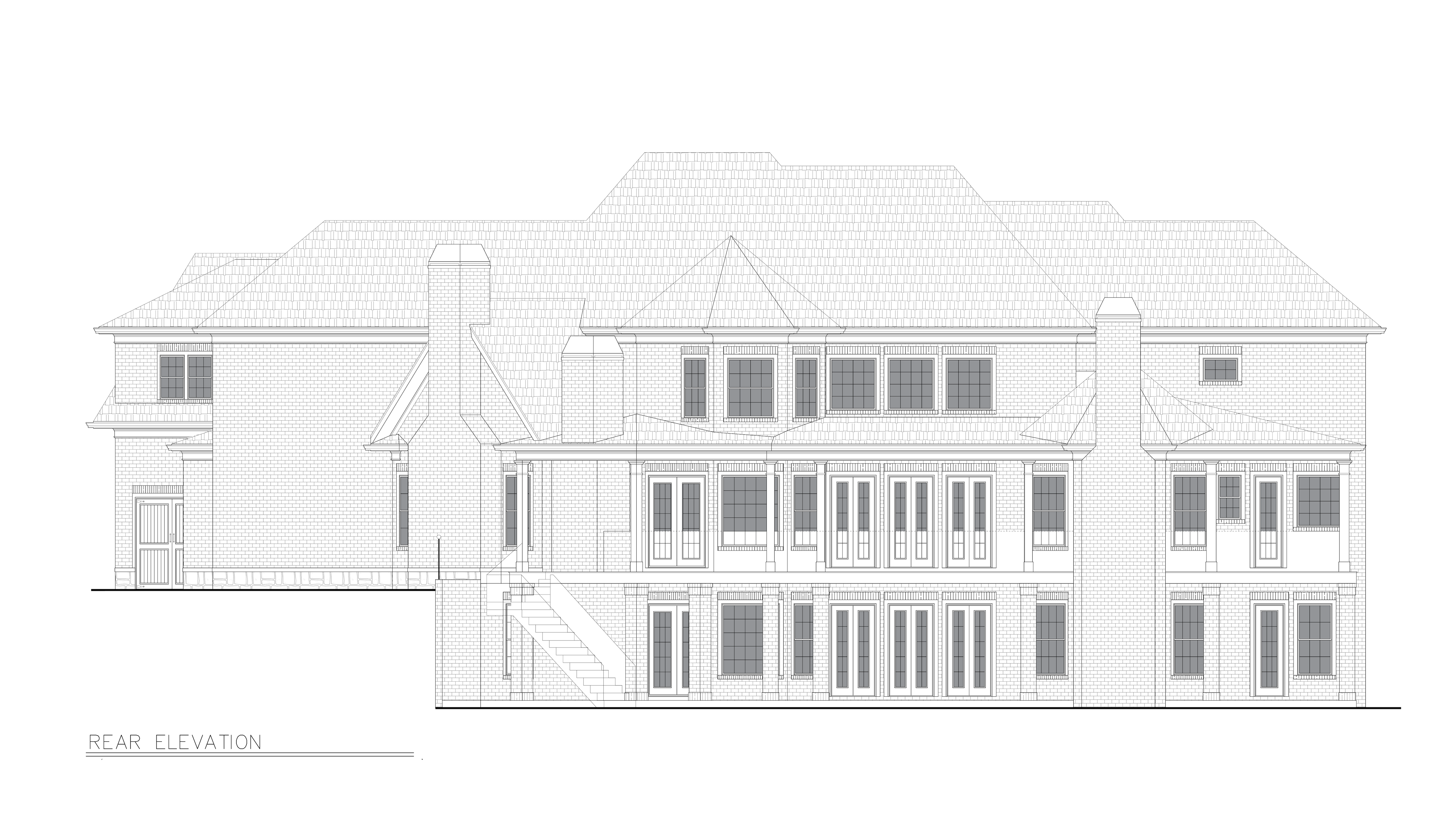

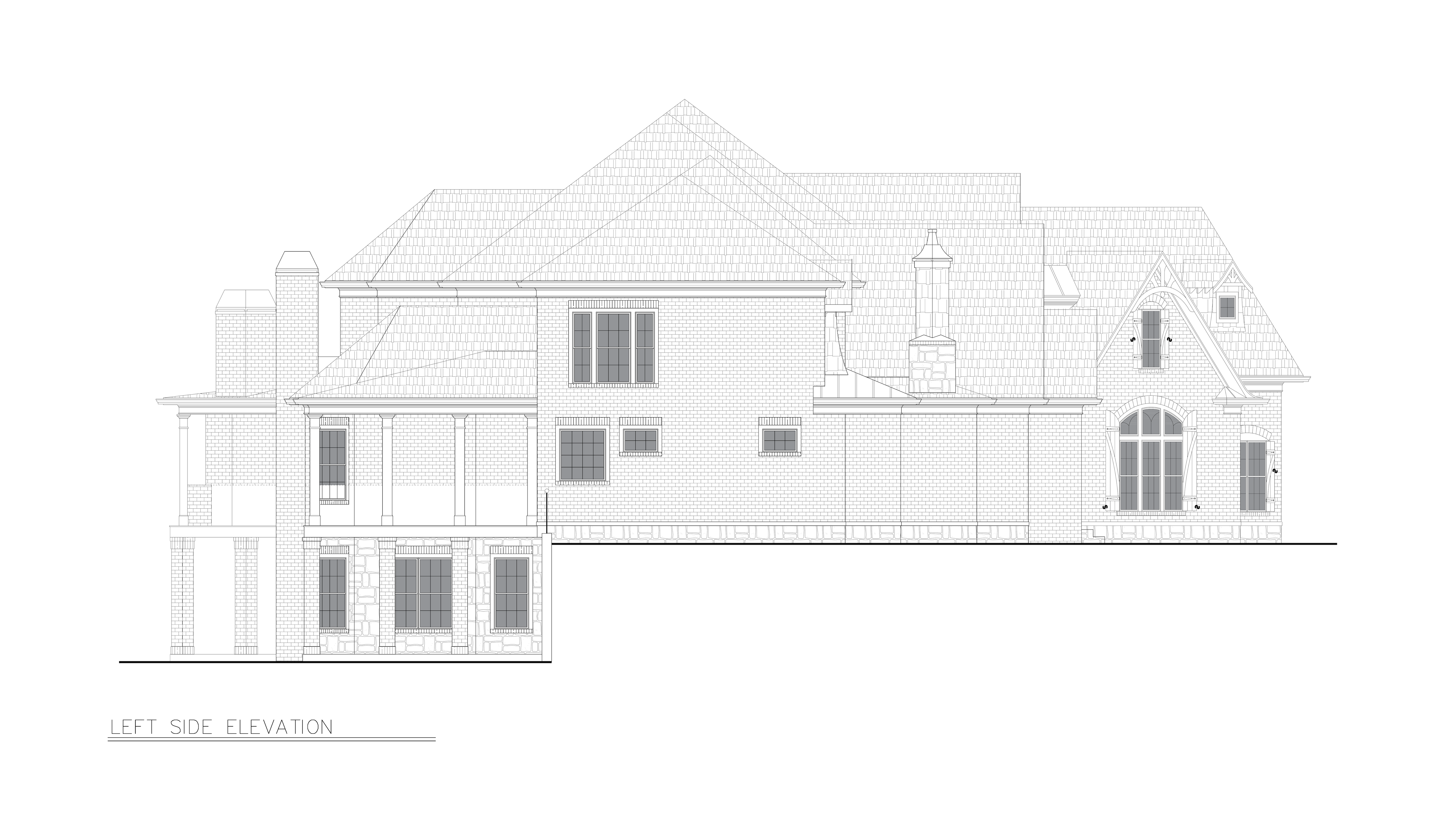

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 6274
1ST FLOOR 3828
2ND FLOOR 2446
GARAGE 1408
BATHS 5
BEDS 5
HALF BATHS 1
MASTER BEDROOM Master Down
WIDTH 107' 9"
DEPTH 95' 08"
