Plan 7431 Creek Falls Cottage House Plan

3
Bedrooms
3
Bathrooms
2091
Square Ft
1
Stories

Regular price $1,885.00 USD
Regular price Sale price $1,885.00 USD
Sale Sold out

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Modify This Plan

Need to make changes to this home plan? We will deliver you a free price quote within 2 to 4 business days.

Edit Your Plan

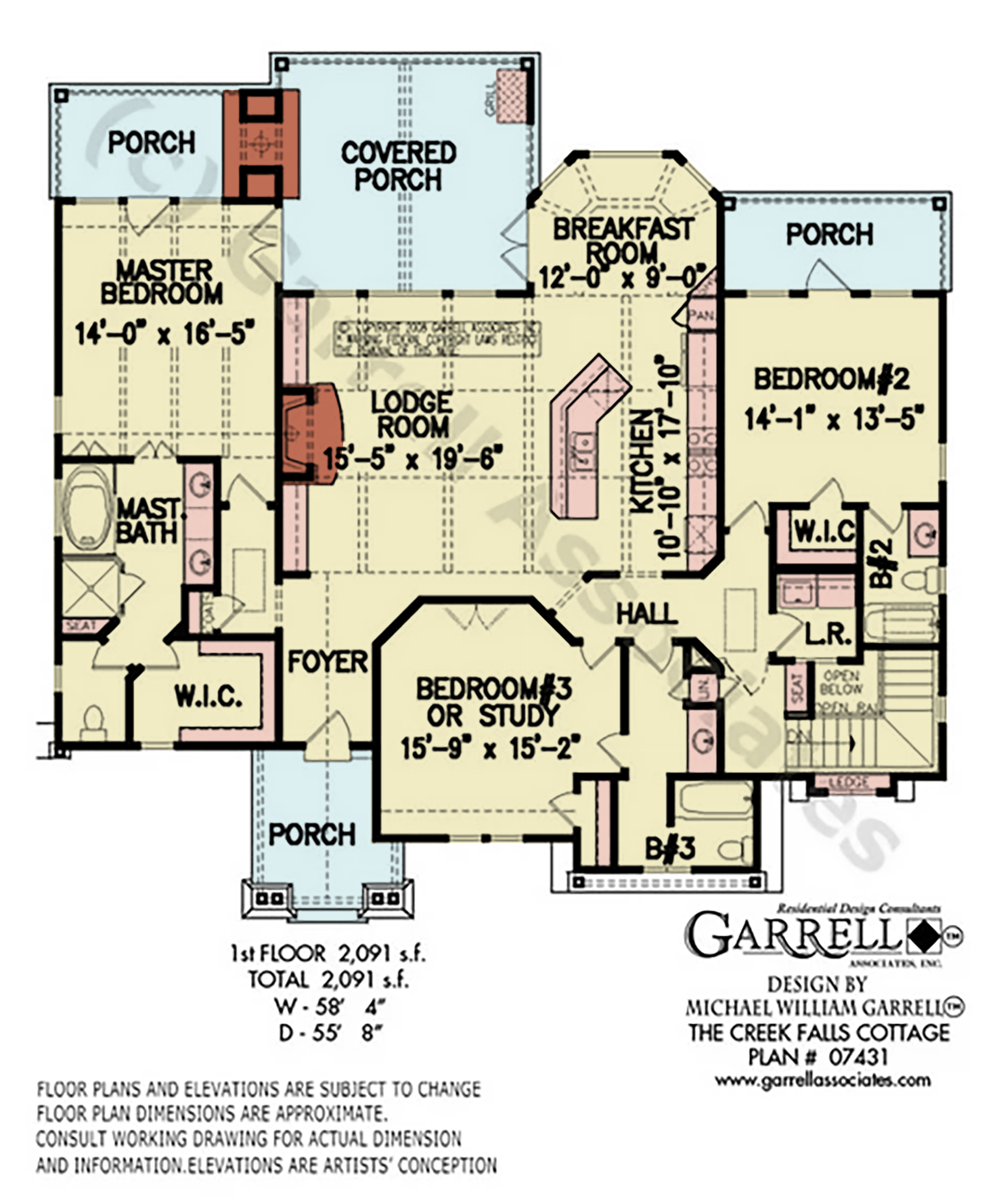

1stFLOORPLAN 07431

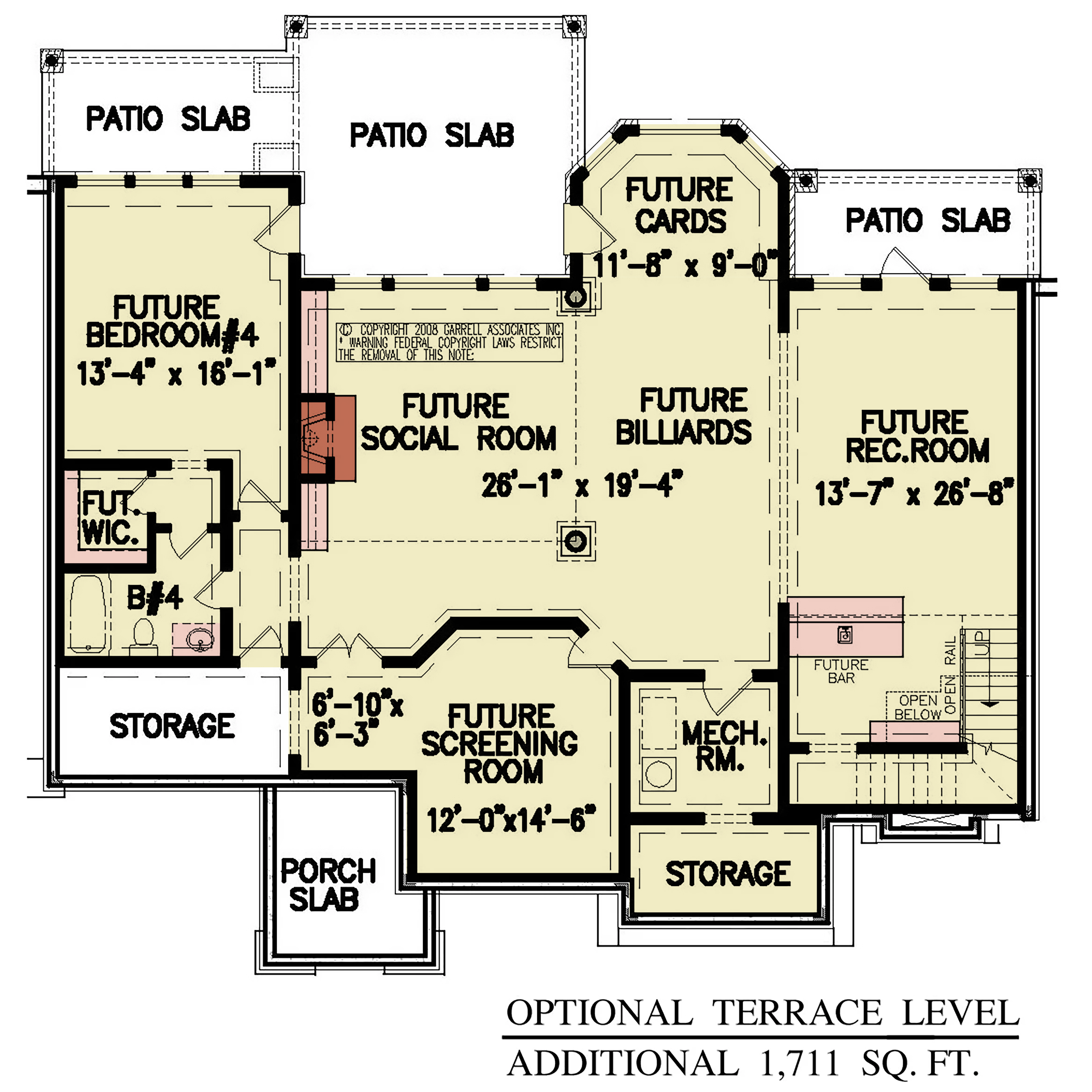

TERRACELEVELFLOORPLAN 07431
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

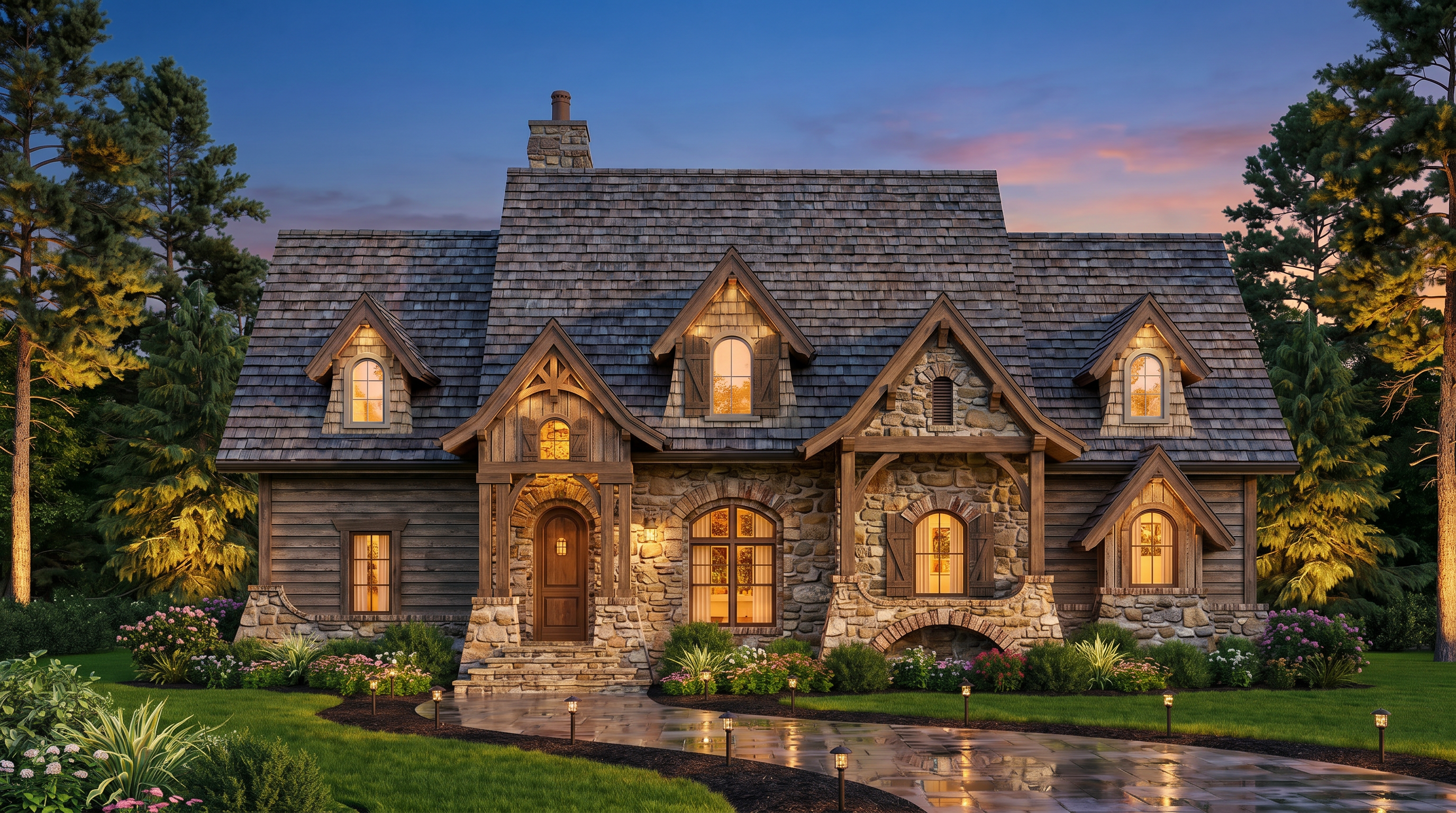

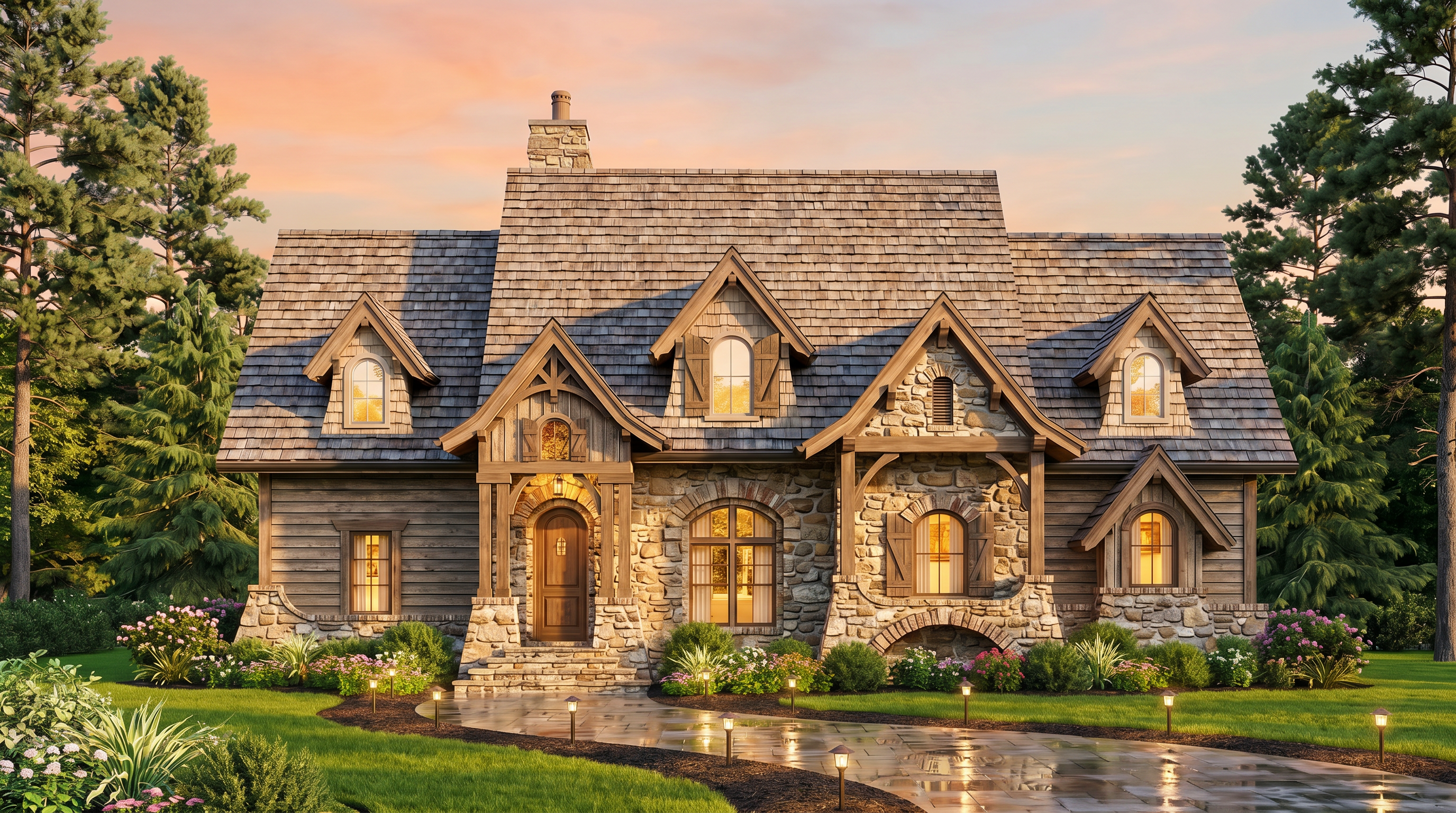

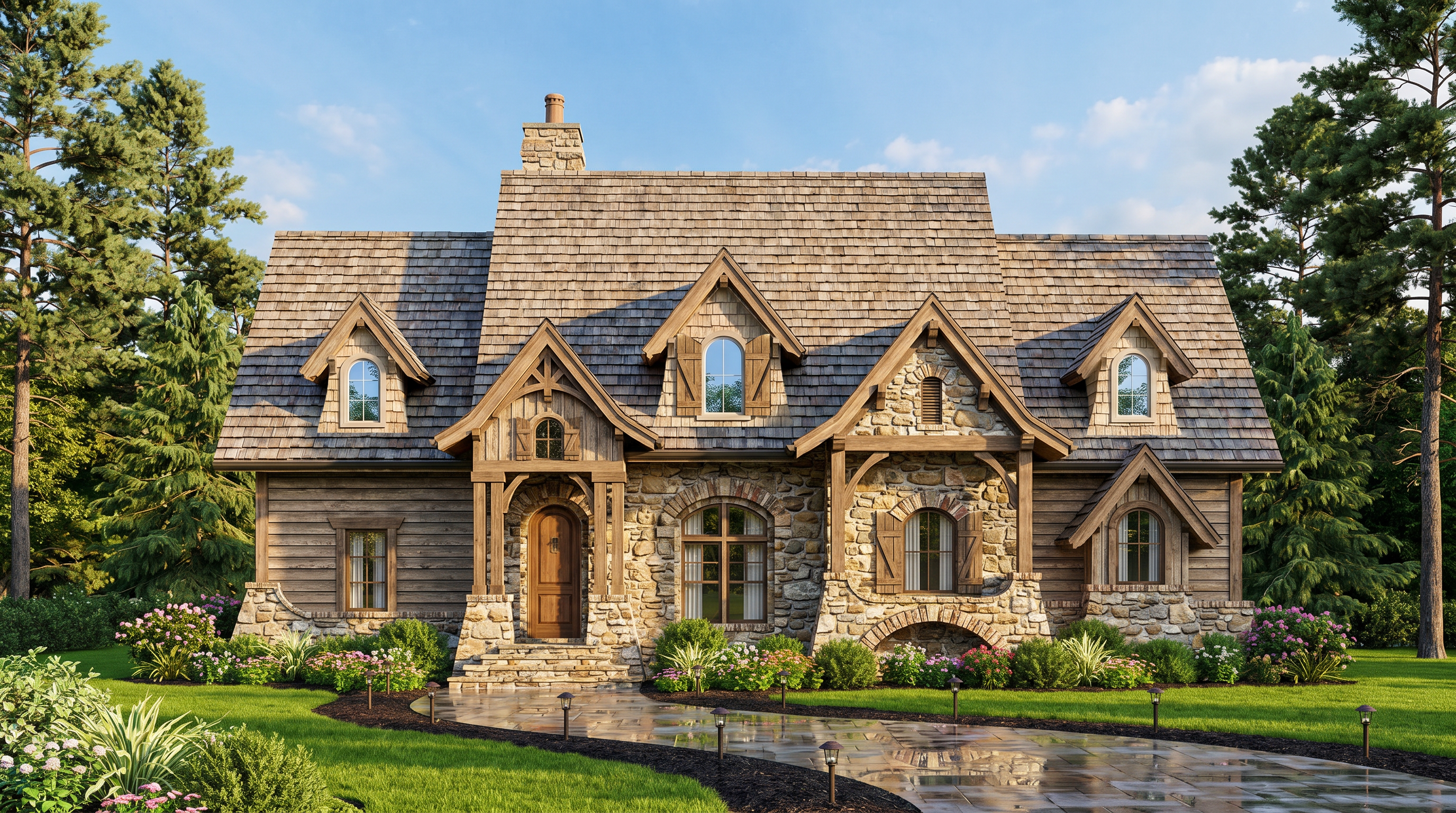

This rustic cottage house plan will warm your heart.A unique ranch floor plan provides three separate bedroom suites that enjoy privacy and radiate around the common living spaces. The master retreat in this rustic home design has access to a private rear porch and a larger covered porch that share a see-through fireplace. An optional terrace level offers room to expand for additional bedrooms, entertainment and storage. We offer floor plan modifications on all of our mountain style house plan designs.

What's Included In the plan

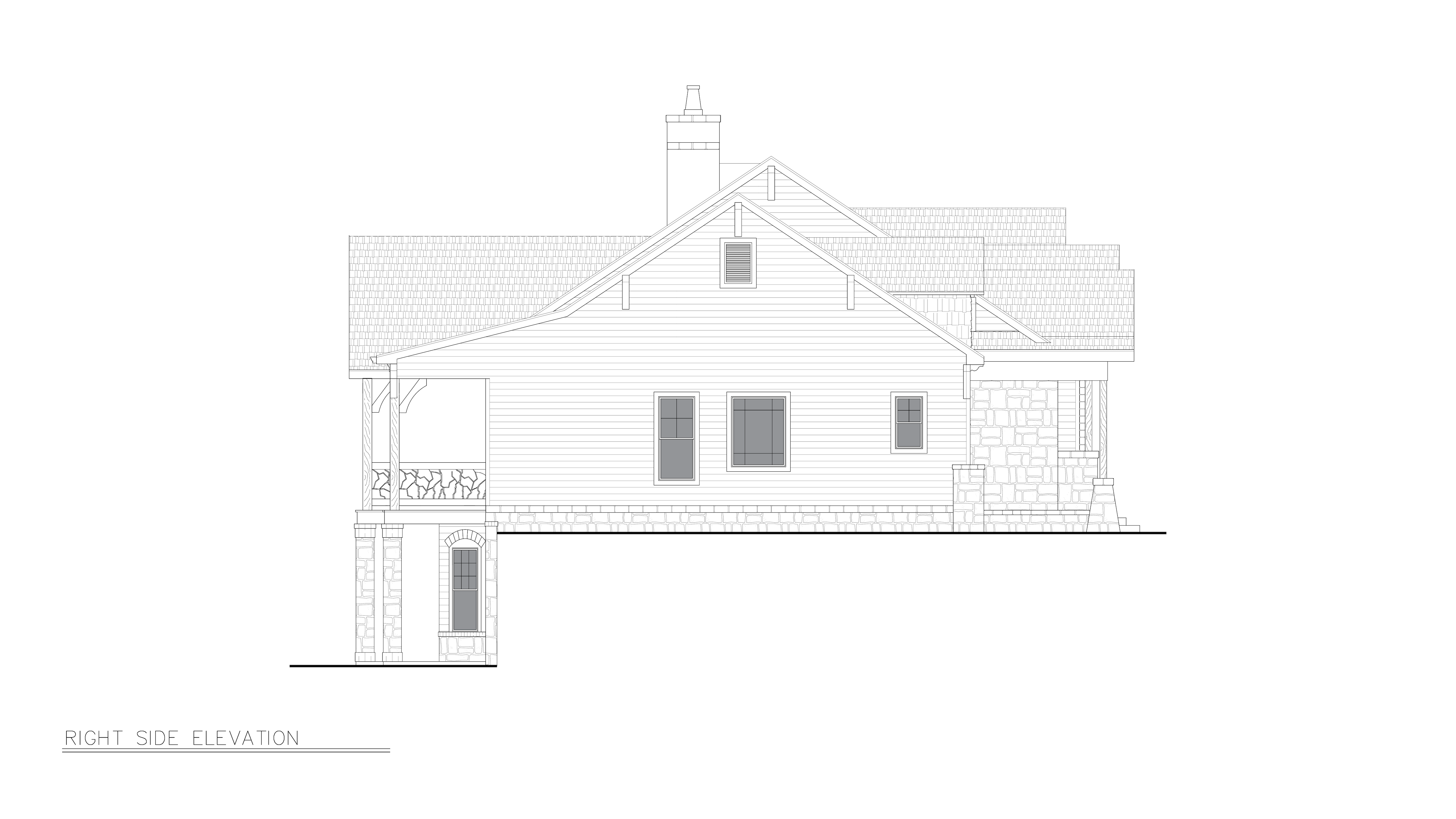

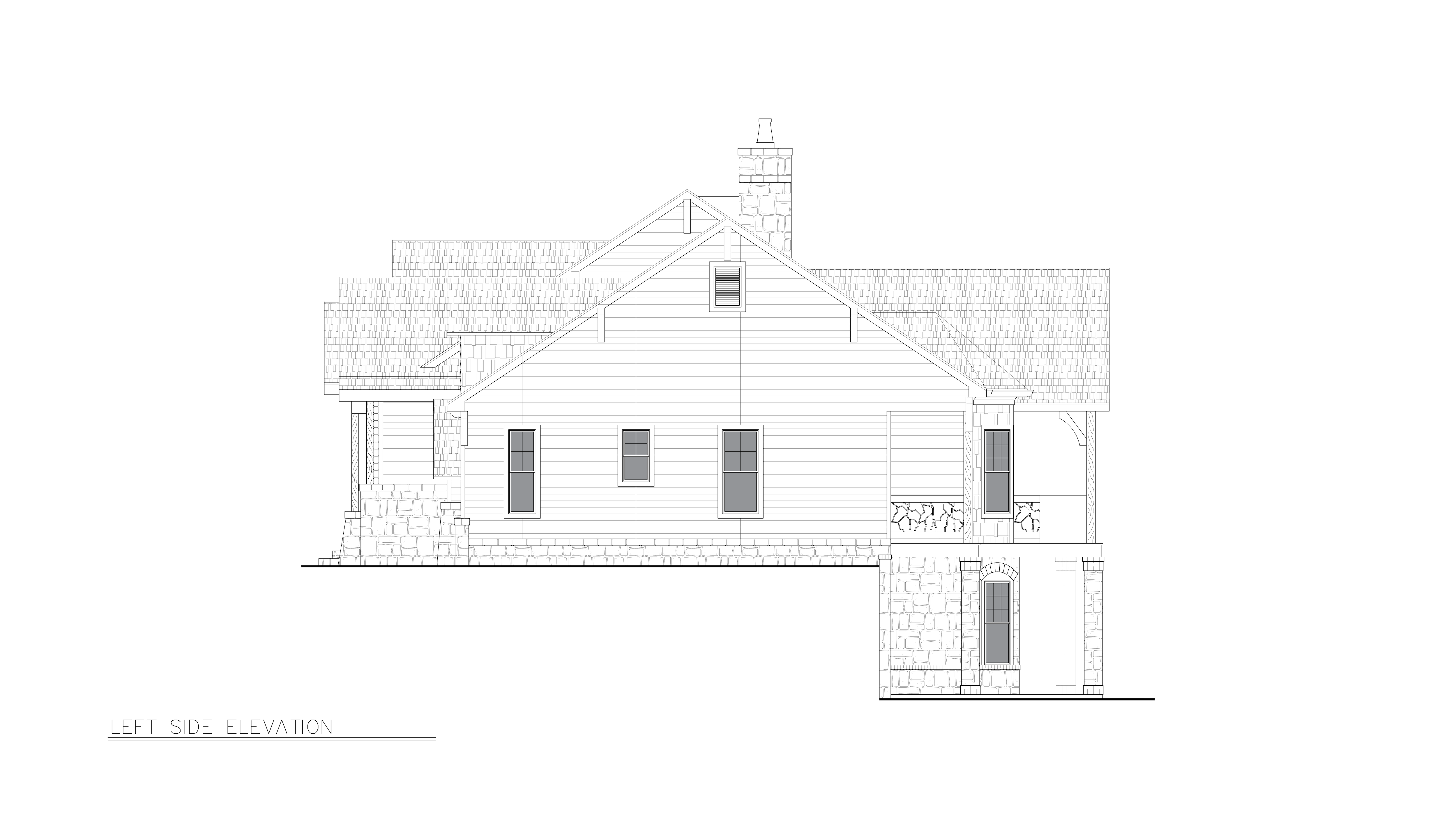

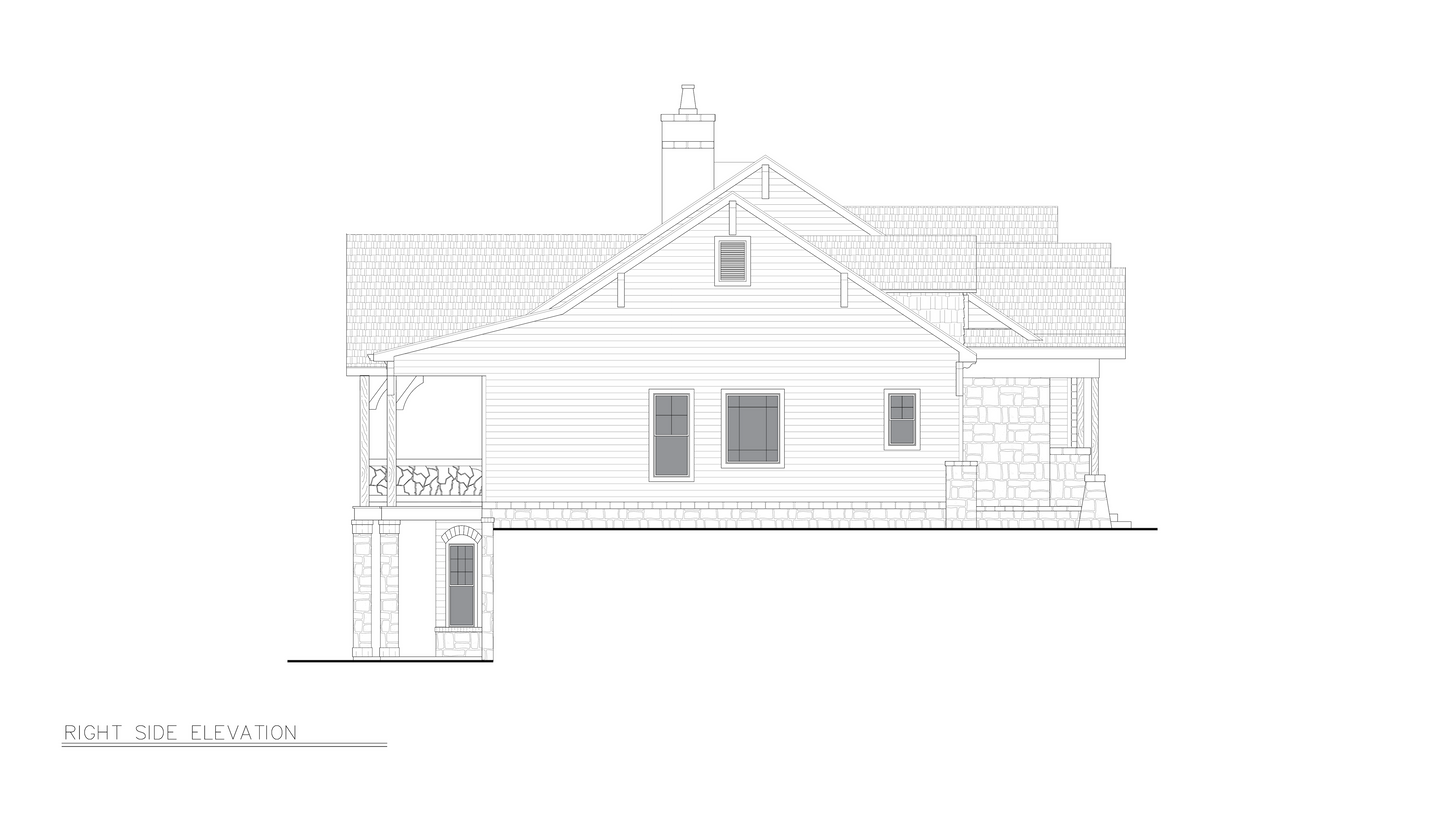

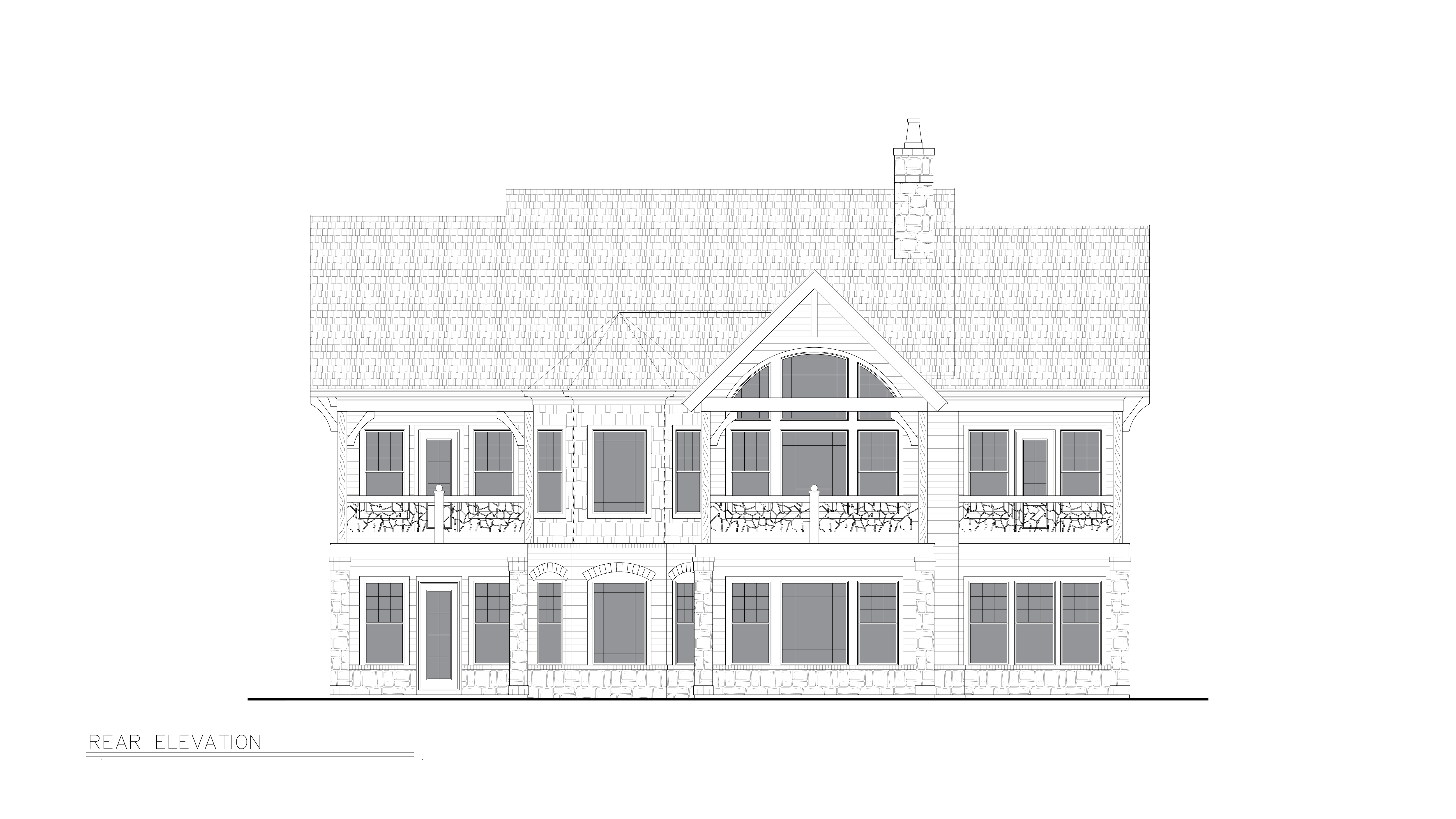

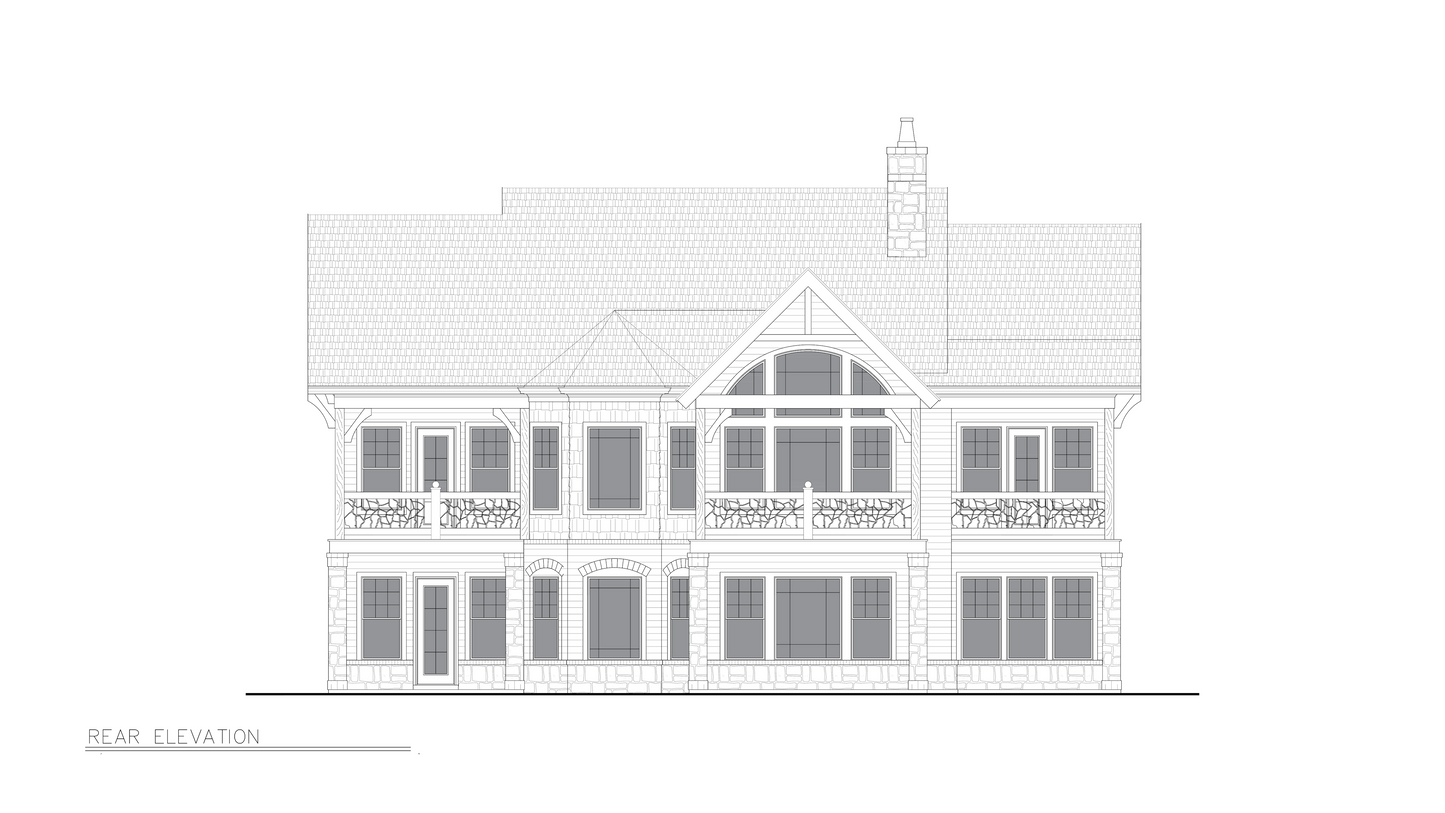

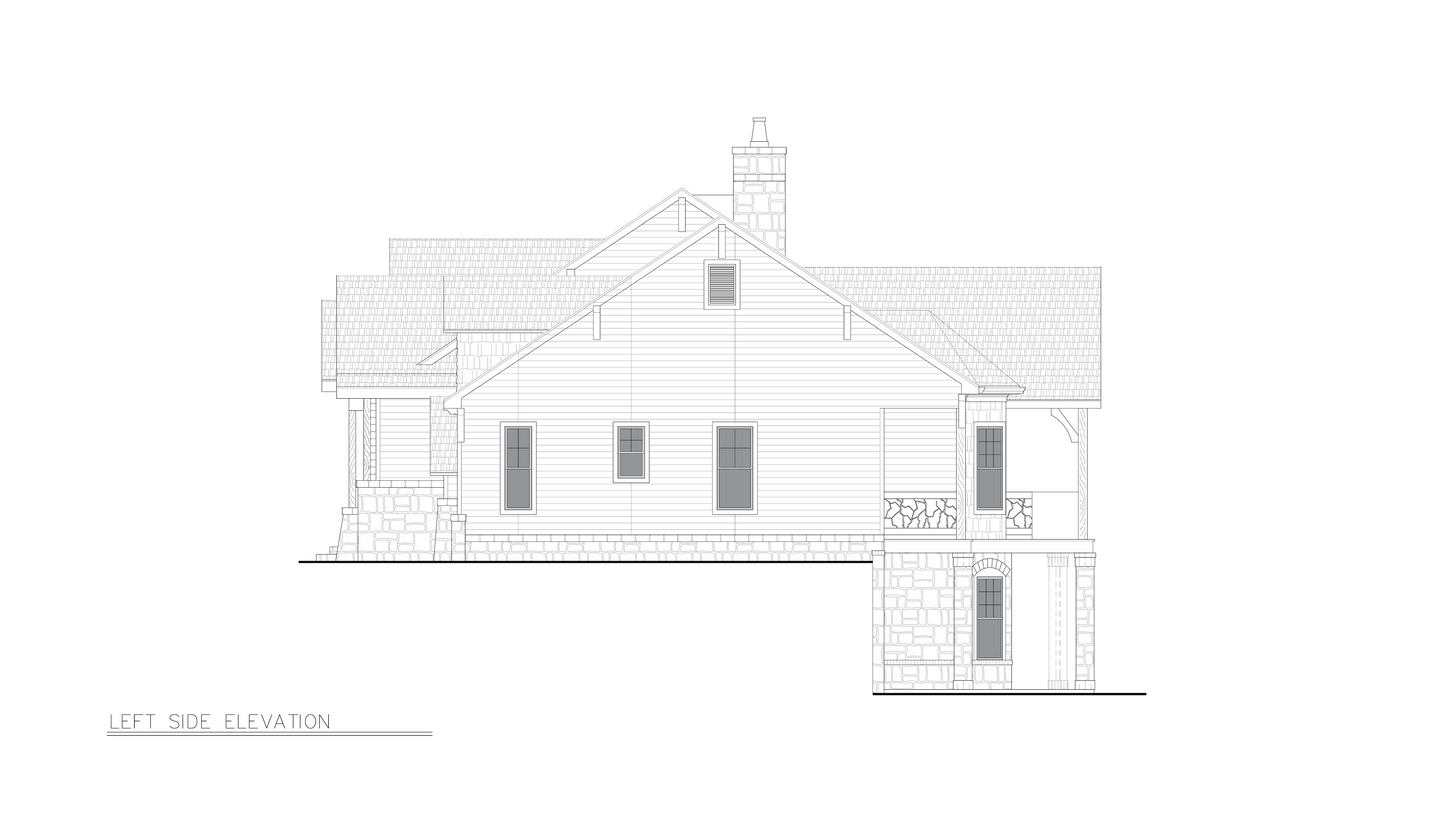

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 2091
1ST FLOOR 2091
BATHS 3
BEDS 3
MASTER BEDROOM Master Down
WIDTH 58' 4"
DEPTH 55' 8"
W REF 58, 59
D REF 55, 56
