Grist Mill Bungalow House Plan | Plan 07462

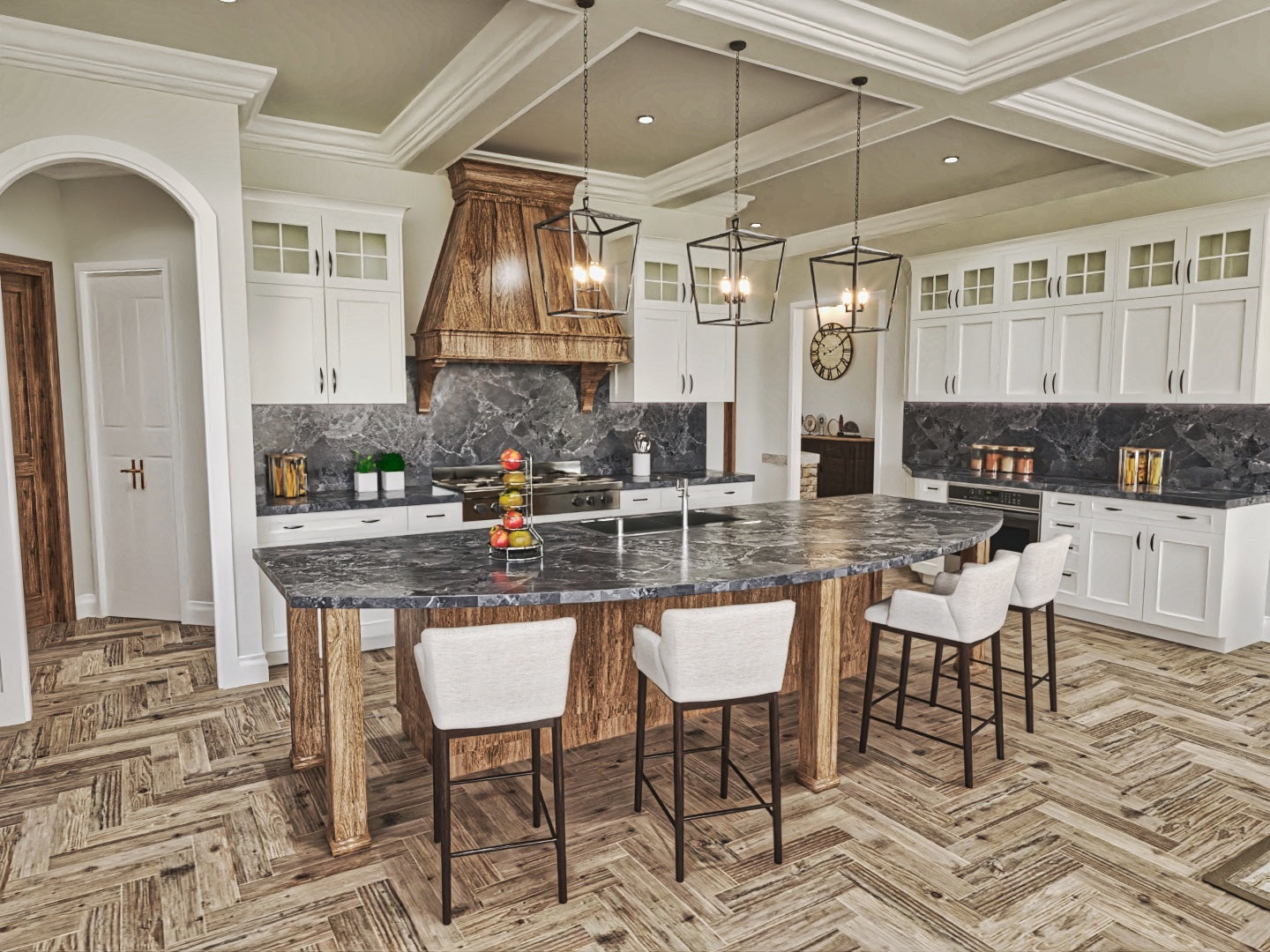

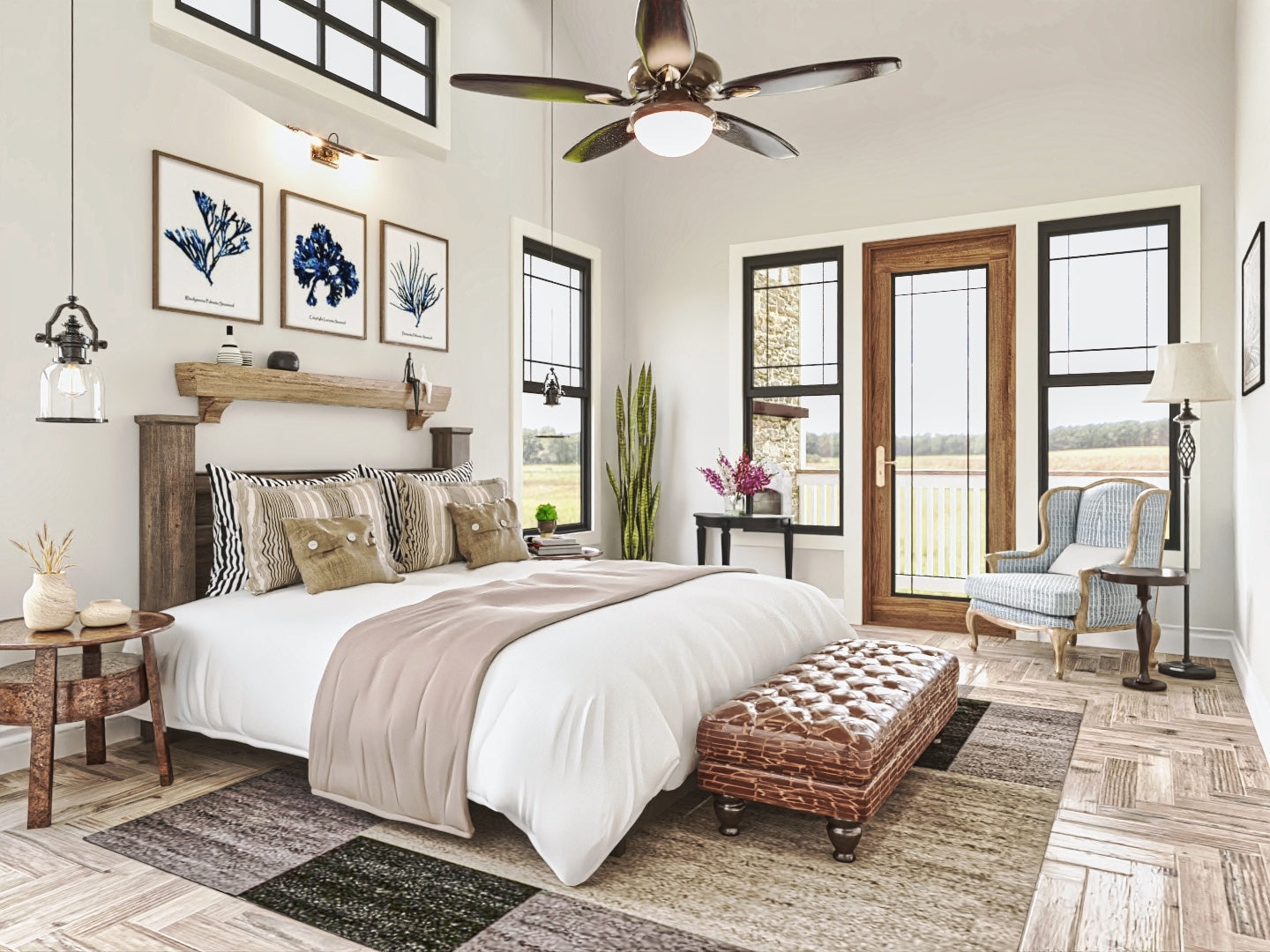

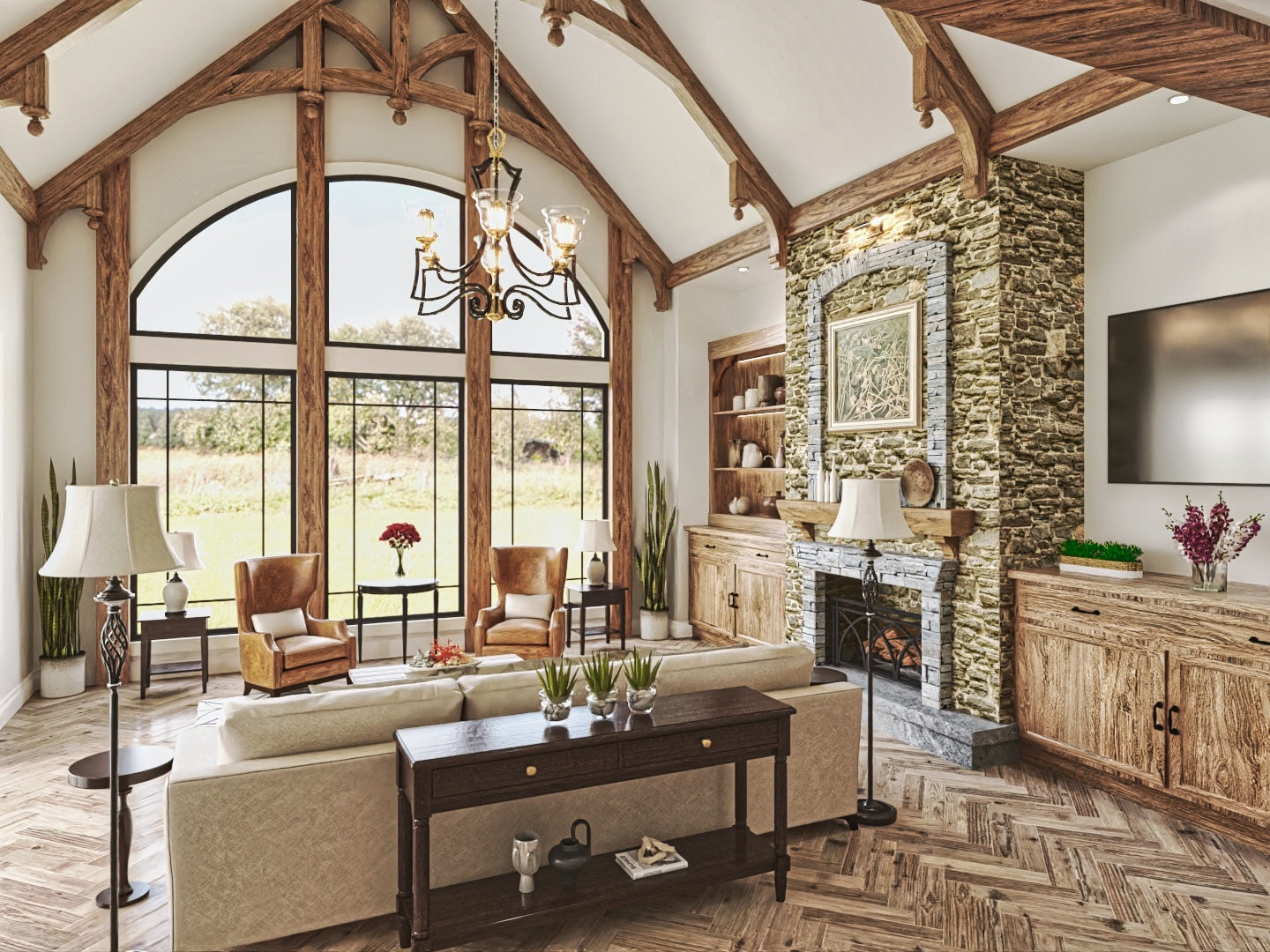

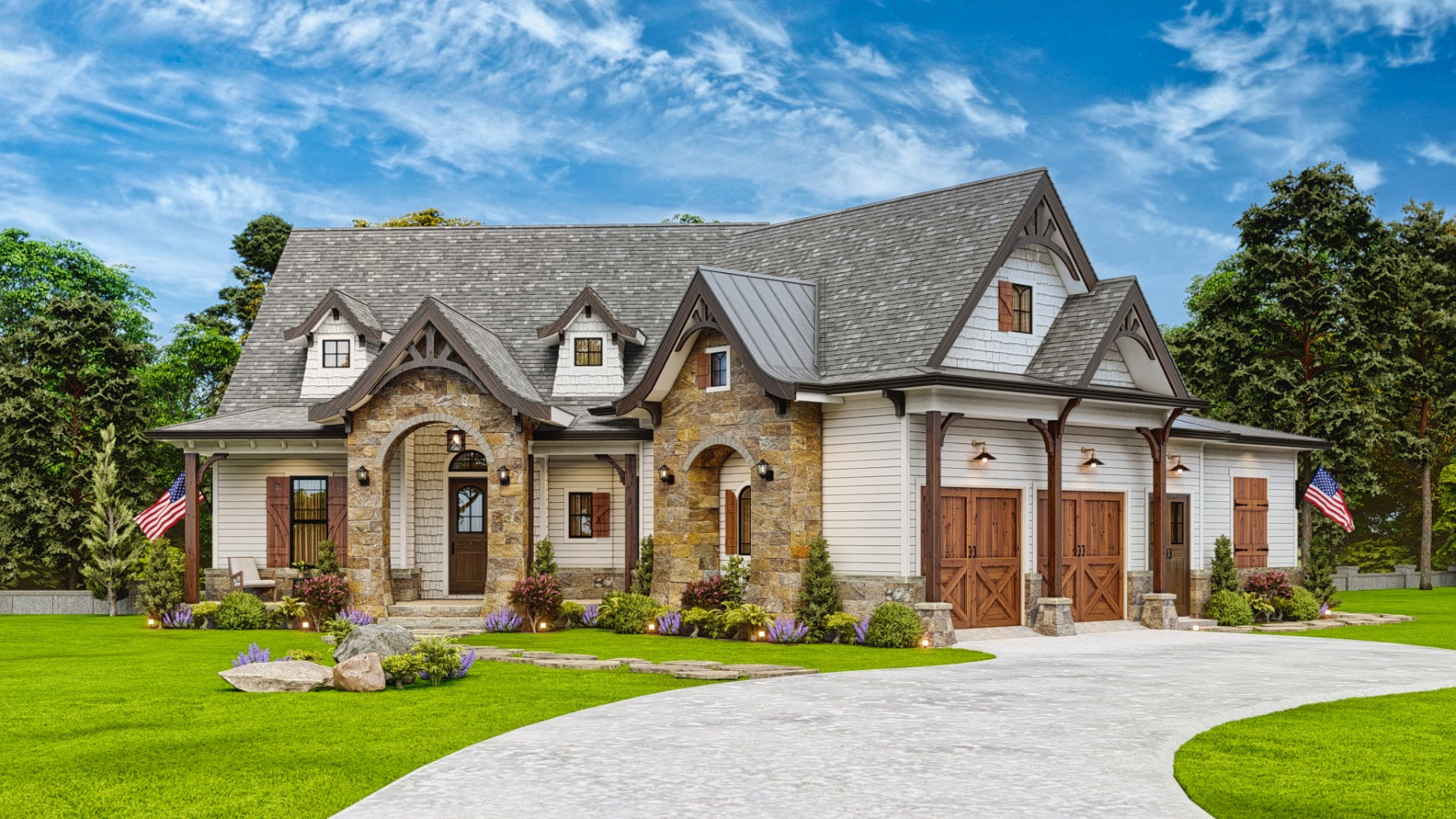

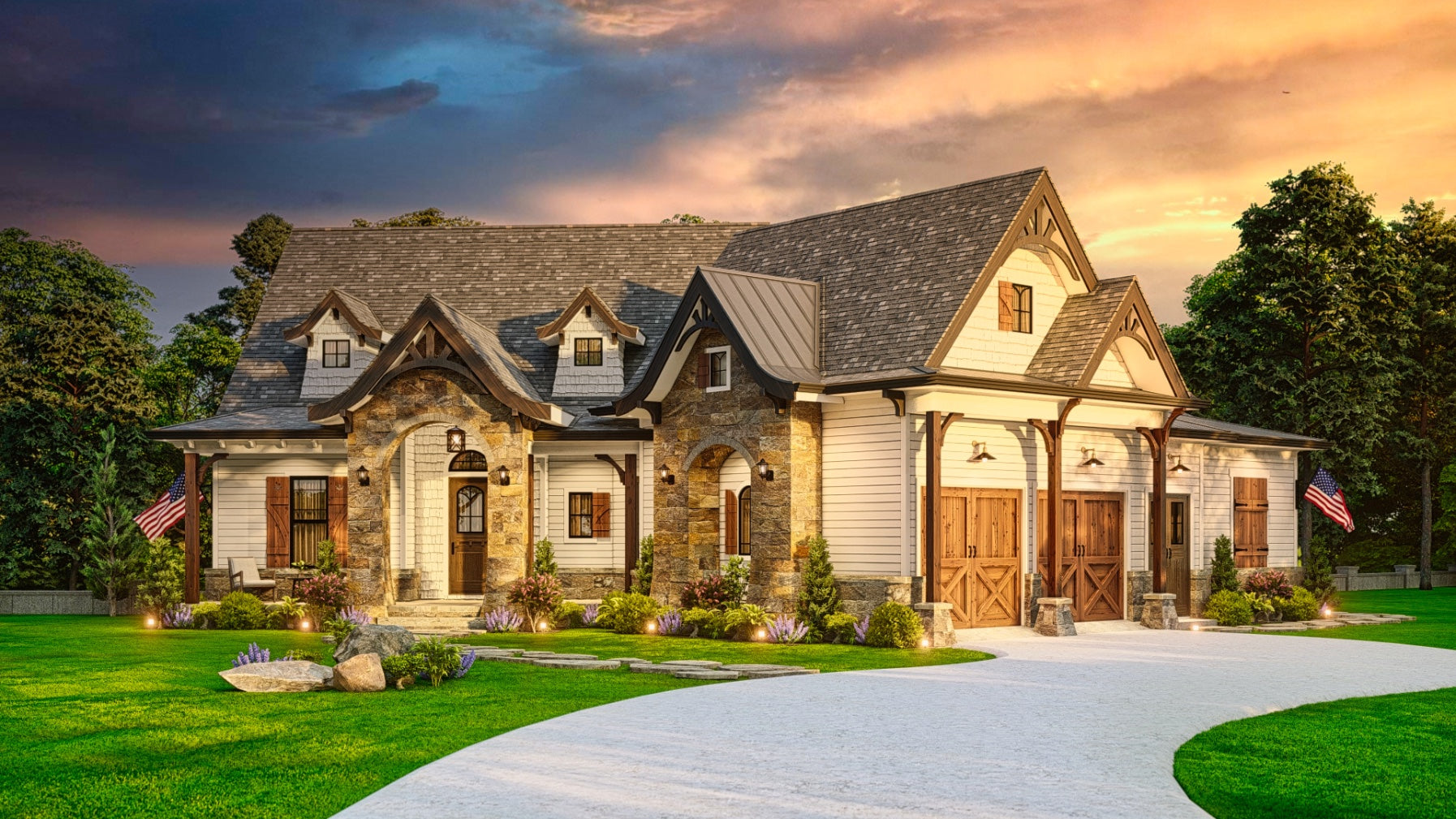

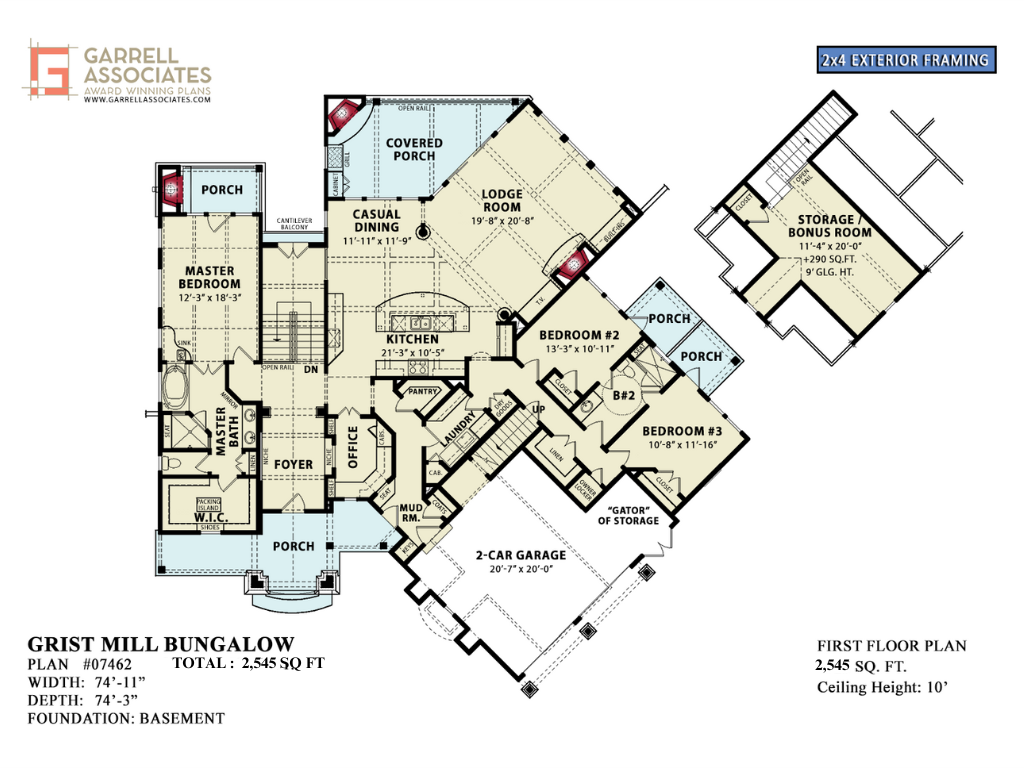

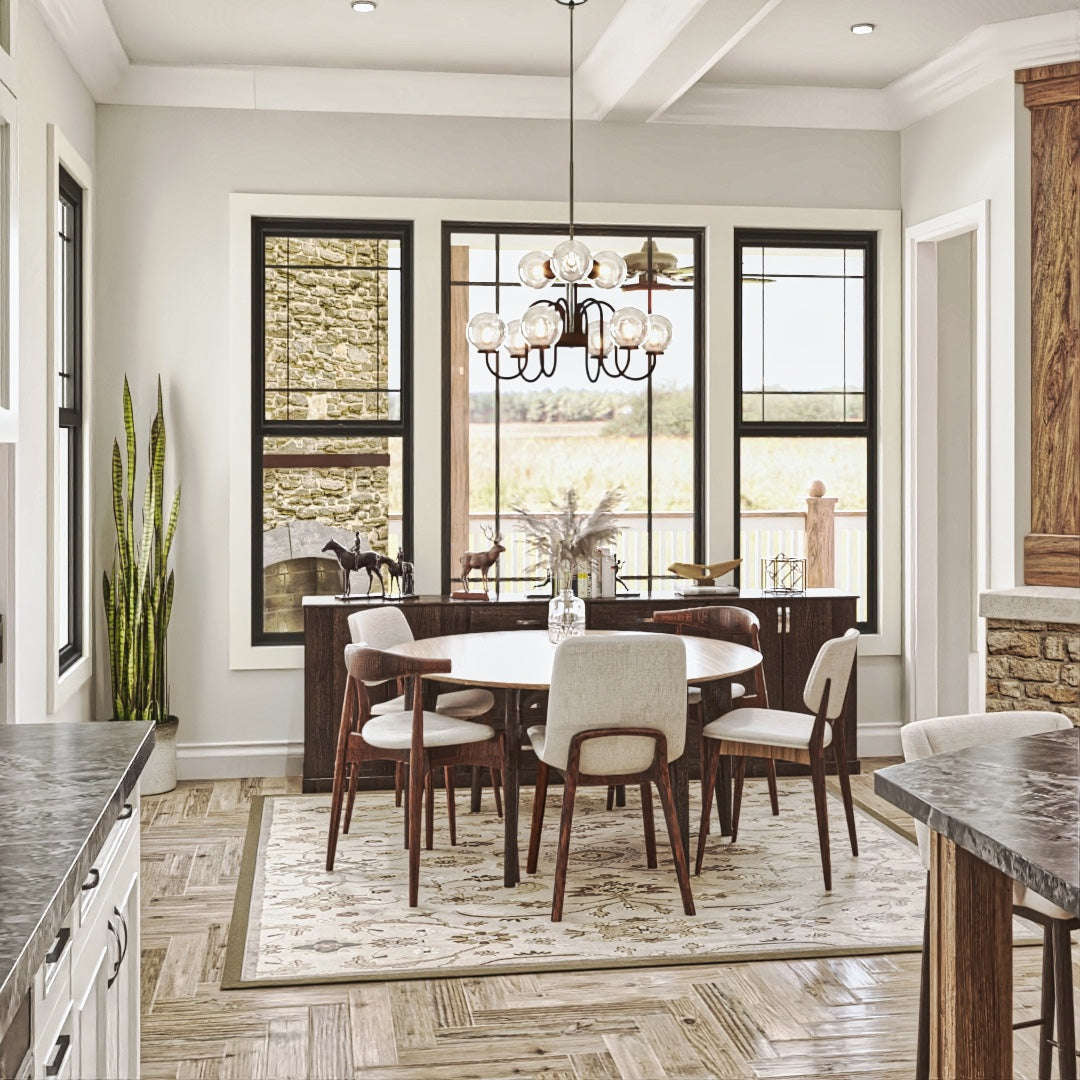

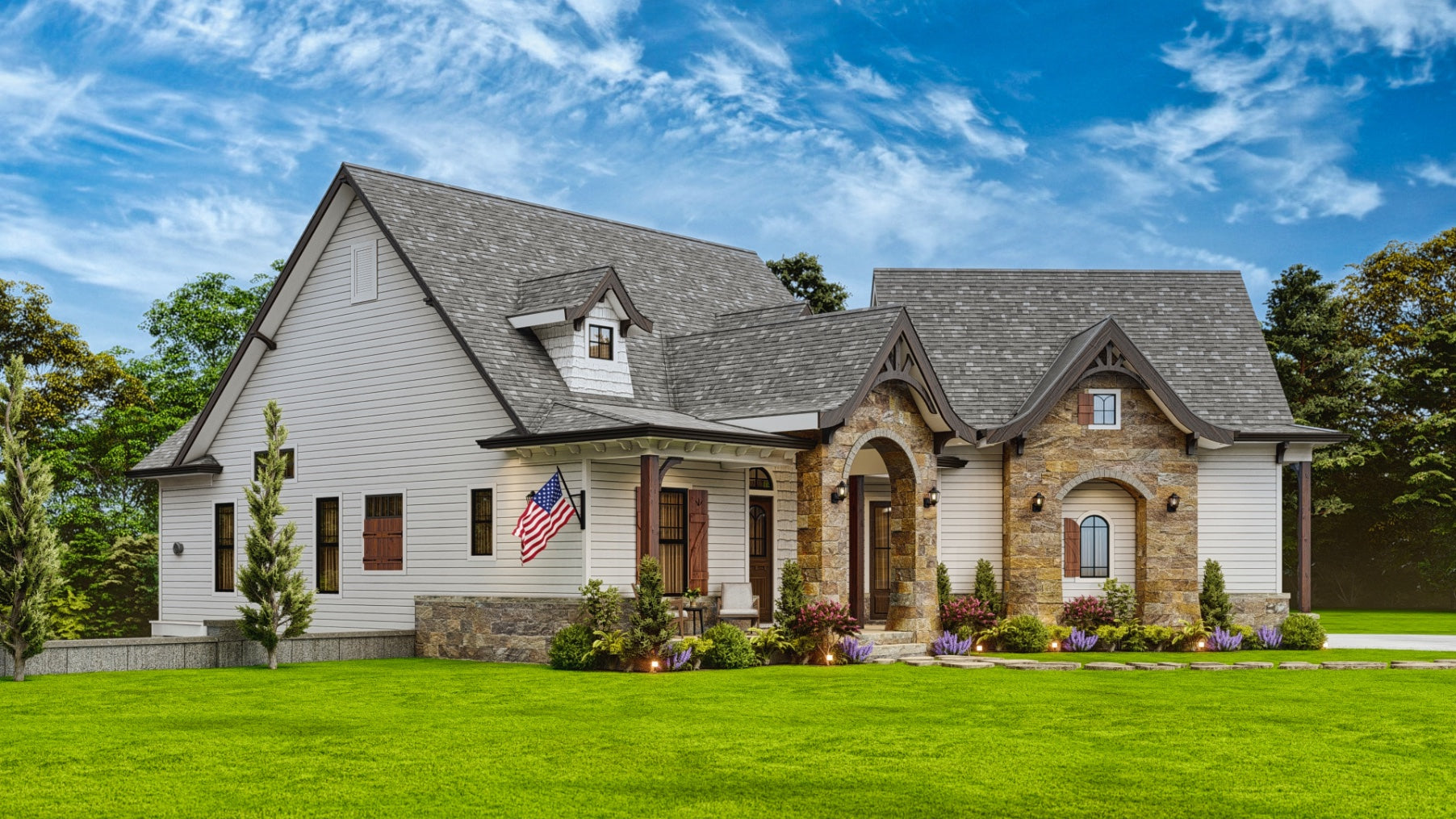

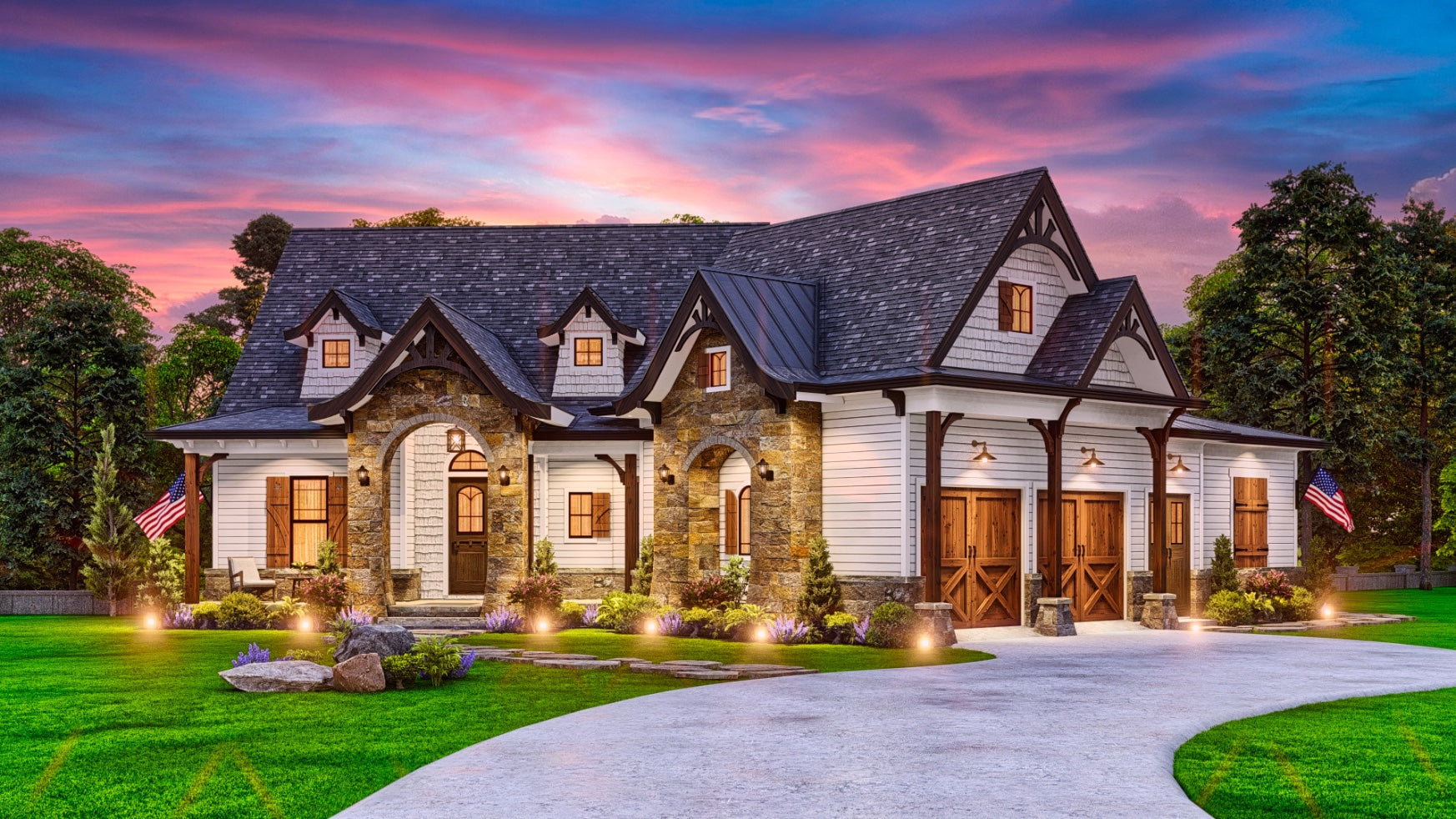

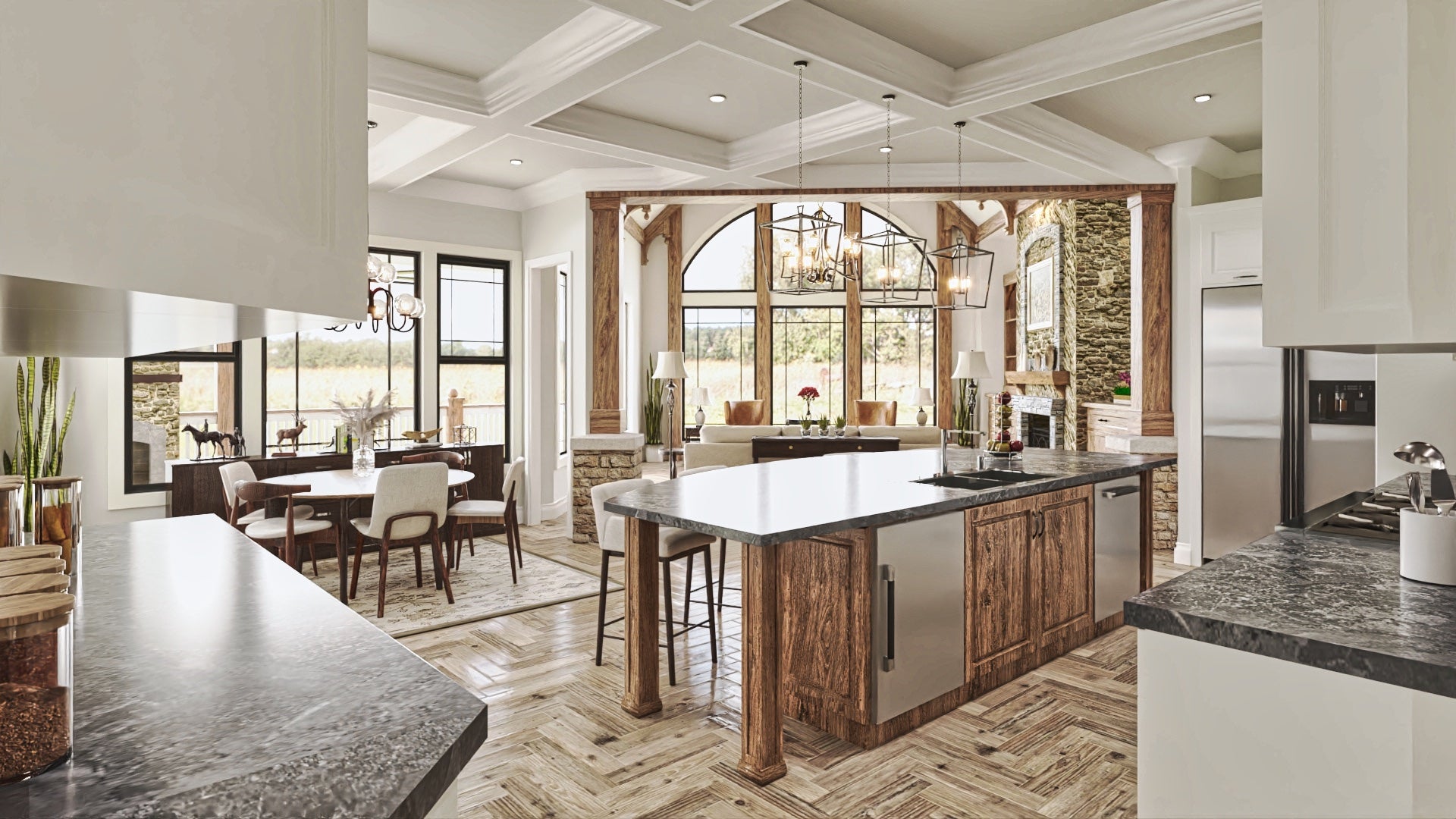

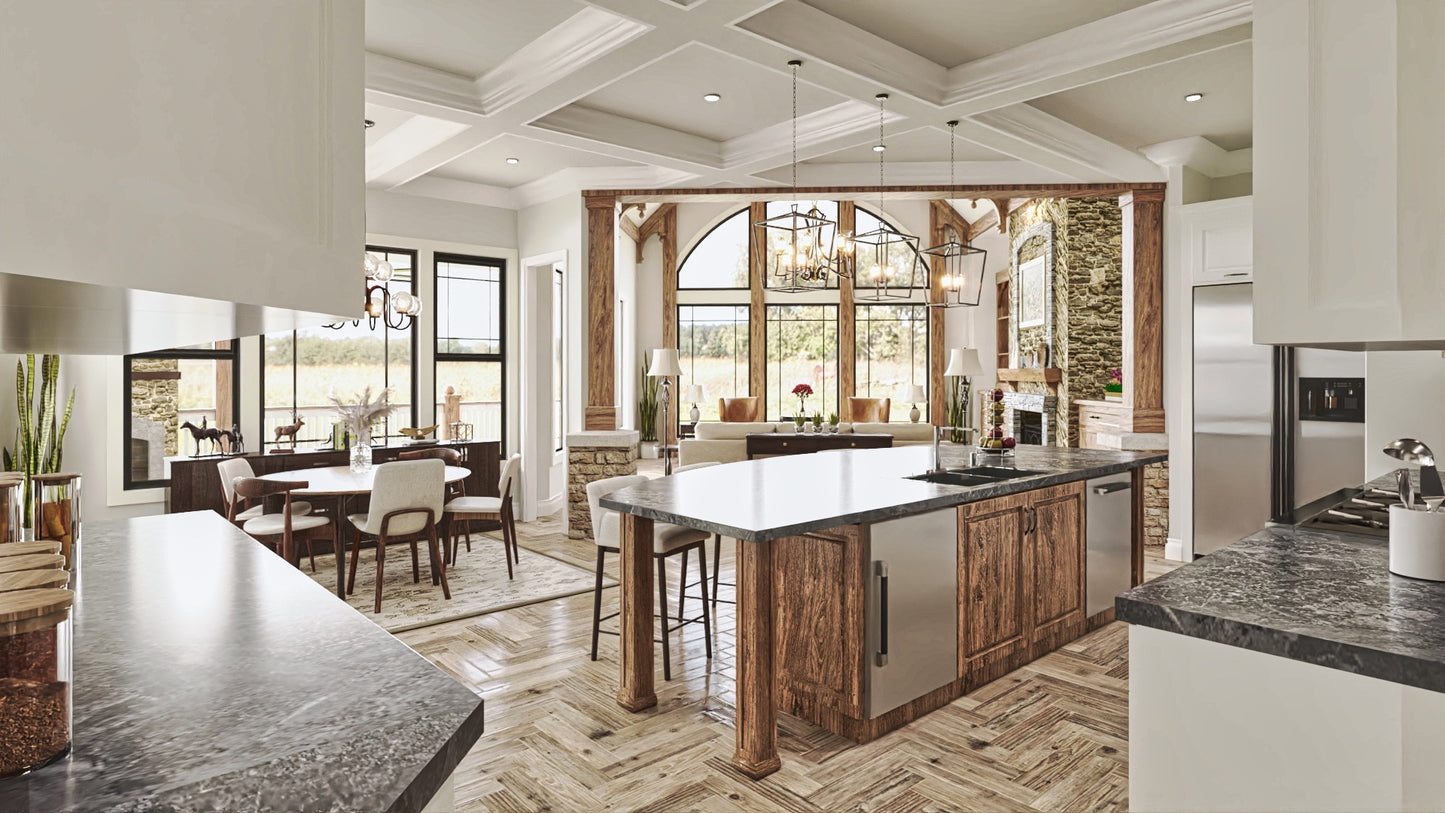

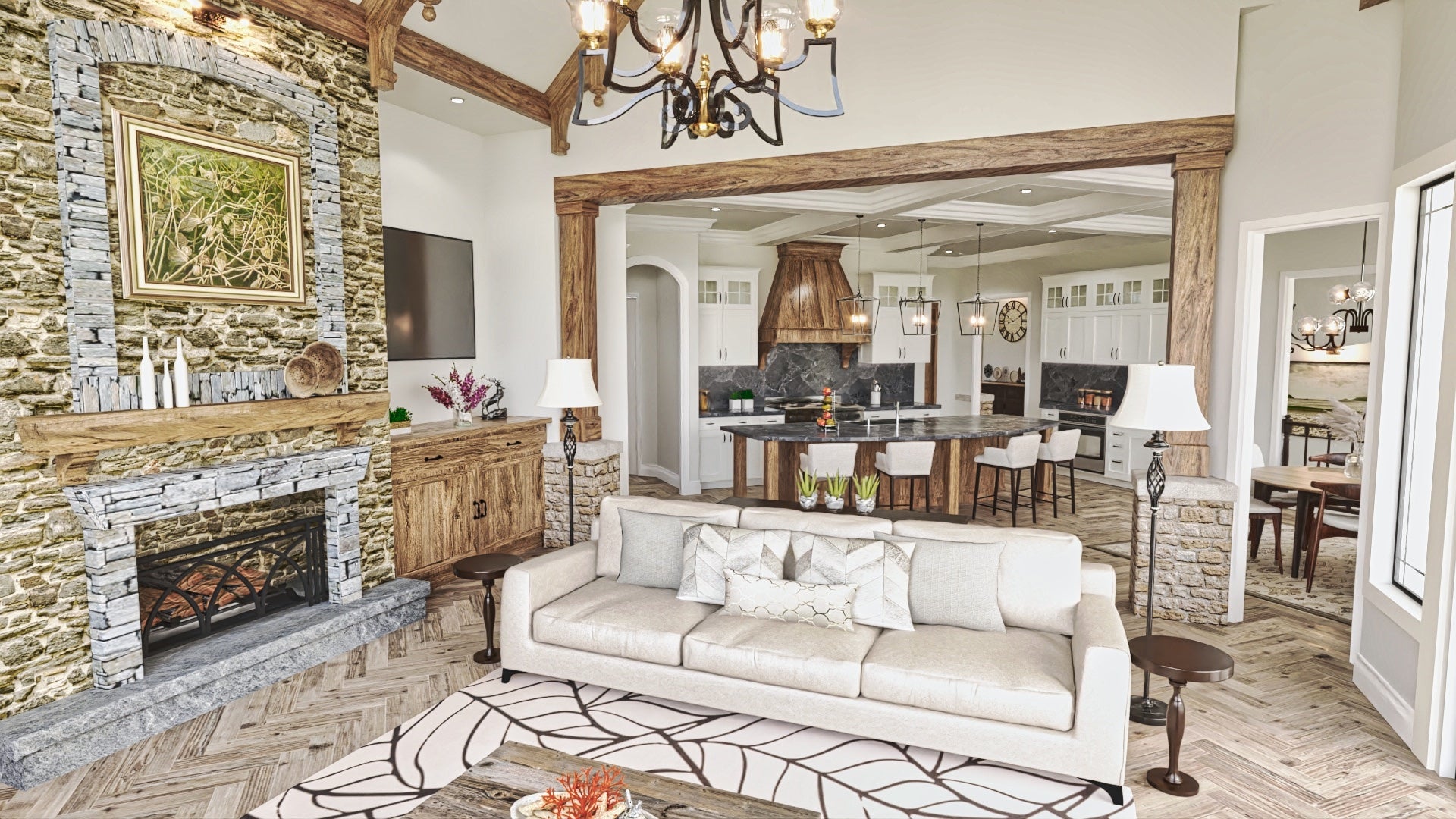

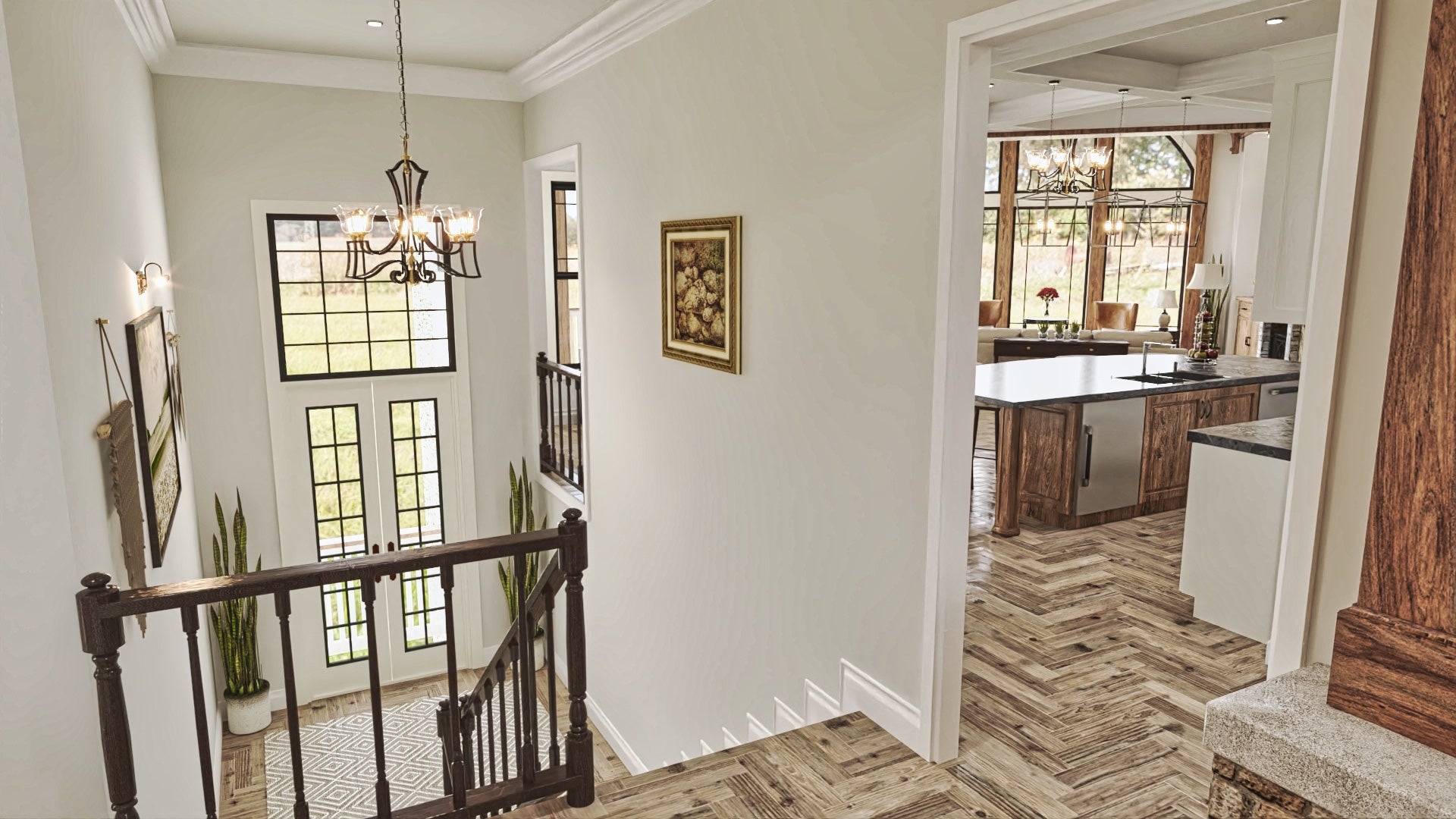

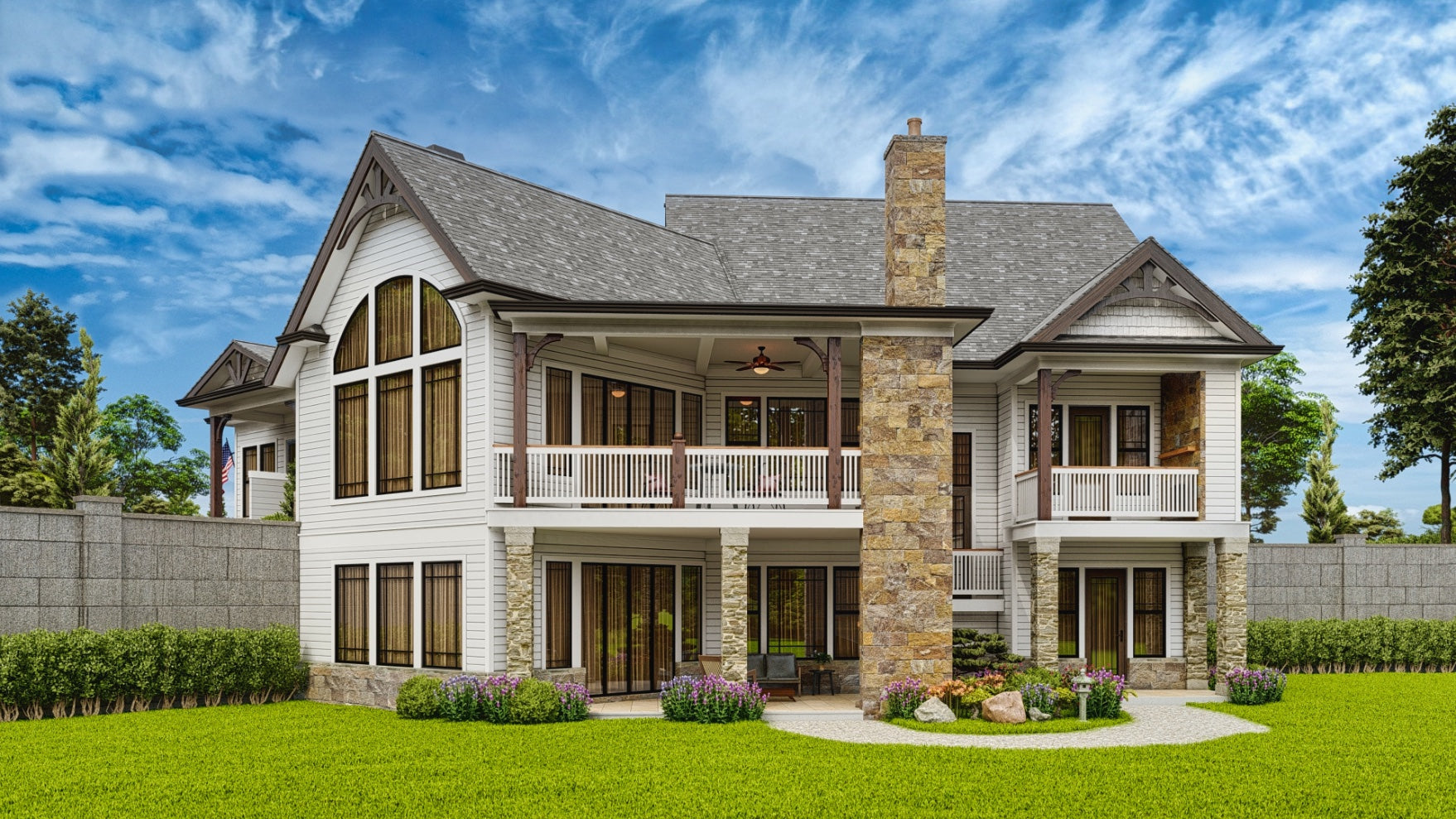

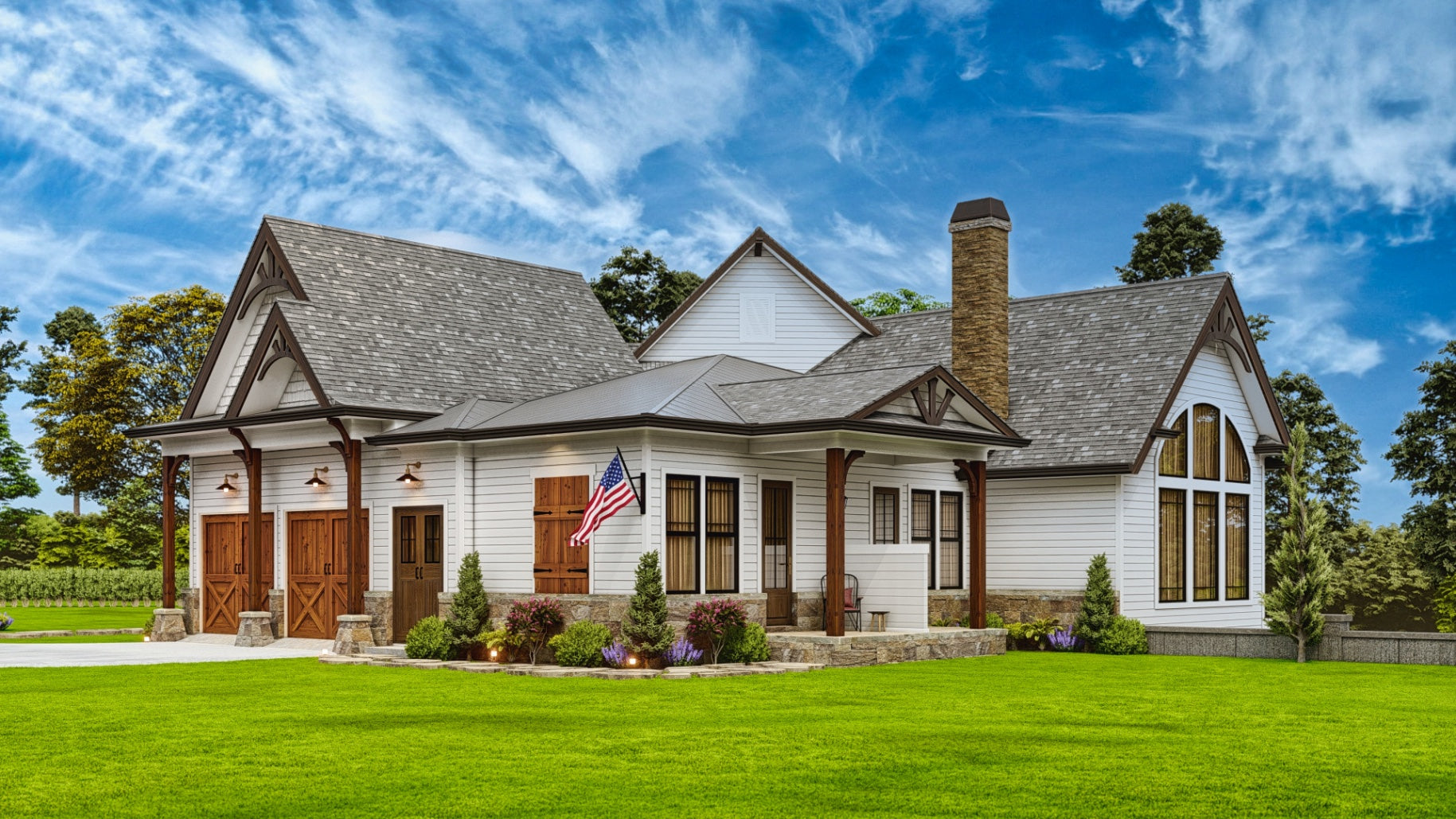

A covered front porch invites you into this cozy rustic house plan. The vaulted foyer allows for natural light to enter this mountain home design. Directly in front of the foyer are stairs that lead down to the basement floor plan. The large kitchen opens into the casual dining room and lodge room. The vaulted lodge room highlights a wall of windows perfect for displaying the spectacular outdoor views. The rear covered porch features a fireplace and outdoor grill for outdoor entertaining. The spacious master retreat includes a private porch with fireplace, master bath and walk-in closet. Rounding out this main floor are two additional bedrooms, mudroom, and office. The optional second floor has an open area perfect for storage or bonus space. We offer floor plan modifications on all of our rustic mountain house plan designs.
Garage 1 floor Lake house

3
Bedrooms
2
Bathrooms
2525
Square Ft
1
Stories

Here is what is included with your Plan purchase:

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.


2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

1. How much does it cost to have modifications done to home plans?

Costs to modify a home plan can vary a lot, depending on the particular plan and the kinds of changes you are looking for. Simple modifications like: Enlarging a bathroom or Removing a wall to create an open floor plan would cost a few hundred dollars, to more complex ones like: adding extra bedrooms or adding a second story to a single-story home can be thousands of dollars.

2. Do you modify plans and what is your procedure?

Yes, we modify plans according to your requirements and needs. Its risk free, and we provide quotes within 48 hours. Please click on the orange "Customize this Plan" button below to start.

3. Are there photographs available of the home I am interested in?

Many of the homes featured have accompanying photographs. If there are no photographs posted on the plan page for a particular home, a render is available. New photos are added to the site regularly as they become available. (Note: The photographs displayed online may differ slightly from the actual plans, depending on modifications made by the owner/builder. Please refer to the floor plan for the accurate layout of the home.)

4. Can I get an address where this home plan has been built, so I can see the finished home?

In order to maintain our customers' privacy, we do not track this information. However, we have photographs for many of our home plans.

5. How is the living square footage of a home plan calculated?

We typically calculate square footage from outside the exterior frame wall, not including features like decks, porches, patios, screened porches, verandas, fireplaces, garages, basements, attics, future space, or bonus rooms. This means a livable space that is heated and finished (with drywall, paint, and carpeting, for example).  If you need to clarify the square footage of a particular home plan, please contact us.

6. Will your plans be signed or stamped by an architect or engineer?
Our plans, as all architectural plans sold, will not be signed/stamped by the engineer or architect due to variations in site conditions and different local building codes and zoning regulations for each region. For your own safety, your builder or local engineer is responsible for following codes addressing: site conditions, Wind, Storm Surge, Snow Loads, Seismic and Soil Stability, etc. The builder must be responsible for this procedure.

Additional information

Total Sqft 2525
1st Floor 2525
Garage 519
Baths 2
Beds 3
Half Baths 1
Master Bedroom Master Down
Width 74' 11"
Depth 74' 3"
W Ref 74, 75
D Ref 74, 75
Ridge Height 28' 4"
Step 1

PDF (Single License)

PDF package includes working drawings, license to build once, and copyright release for minor changes. PDF file will be emailed promptly after purchase.

CAD (Single License)

CAD package includes working drawings in AutoCAD format, license to build once, and necessary files for more significant modifications. It is the preferred file format for builders. CAD file will be emailed promptly after purchase.

Choose a building foundation for your home. Foundation provides the stability of the home’s structure from the ground.

Basement - This is the deepest form of foundation for a house and can be converted to storage or living areas.

Slab - This foundation is made of concrete poured directly on a solid ground and reinforced with steel rods.

Crawlspace - This consists of short foundation walls that stand on footing to elevate the house from the ground. The space can be used for wiring, plumbing and storage.

Right-Reading Reverse

An option to reverse the plan including texts and dimensions to make them readable.

2x4 or 2x6 Conversion

Convert the exterior framing other than the standard framing included in the plan.

Plan price
Regular price $2,195.00 USD
Regular price Sale price
$2,195.00 USD
Total
USD

Low price guarantee

Find A Lower Price And We'll Beat It By 10%

Additional information

Total Sqft 2525
1st Floor 2525
Garage 519
Baths 2
Beds 3
Half Baths 1
Master Bedroom Master Down
Width 74' 11"
Depth 74' 3"
W Ref 74, 75
D Ref 74, 75
