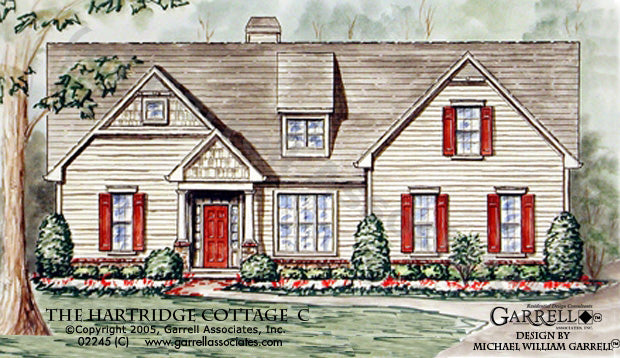

Plan 02245C Hartridge Cottage C-Exchange
Find A Lower Price And We'll Beat It

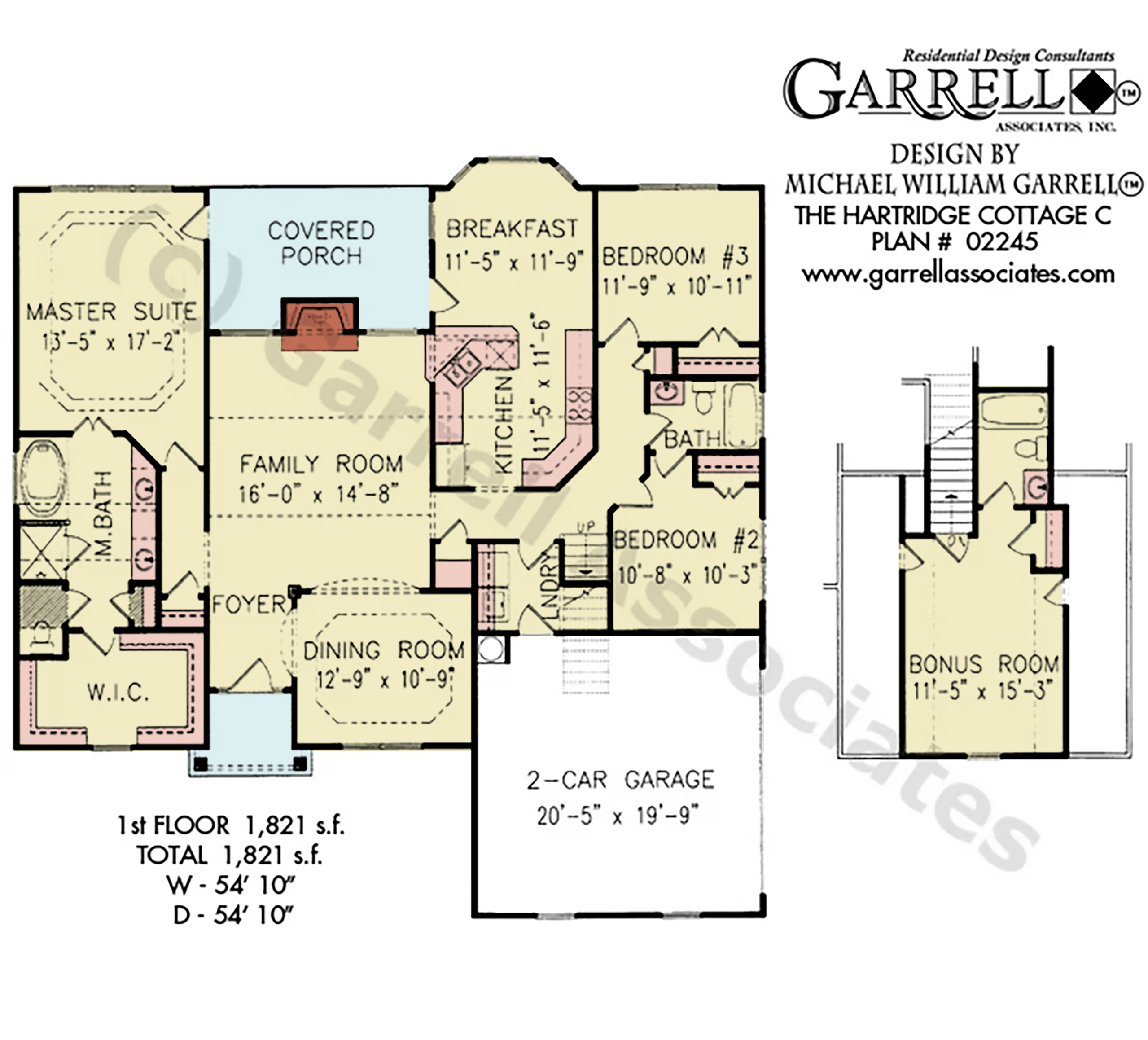

The master suite of this Traditional style house plan features a tray ceiling, an over sized walk in closet and private access to a covered porch. A family room fireplace provides warmth for those cold winter nights. Ideal for family cookouts, a covered porch is bridged between the breakfast area and master suite and accessible from both. Rounding out this ranch house plan are two additional bedrooms and a bonus room. We offer floor plan modifications on all of our Traditional style house plan designs. Have a question about any of our house plans, call us at 1 (888) 814-1494.
What's Included In the plan
1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
