Plan 9345 Roxburgh House Plan

4
Bedrooms
2
Bathrooms
1882
Square Ft
2
Stories

Regular price $595.00 USD
Regular price Sale price $595.00 USD
Sale Sold out

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Modify This Plan

Need to make changes to this home plan? We will deliver you a free price quote within 2 to 4 business days.

Edit Your Plan

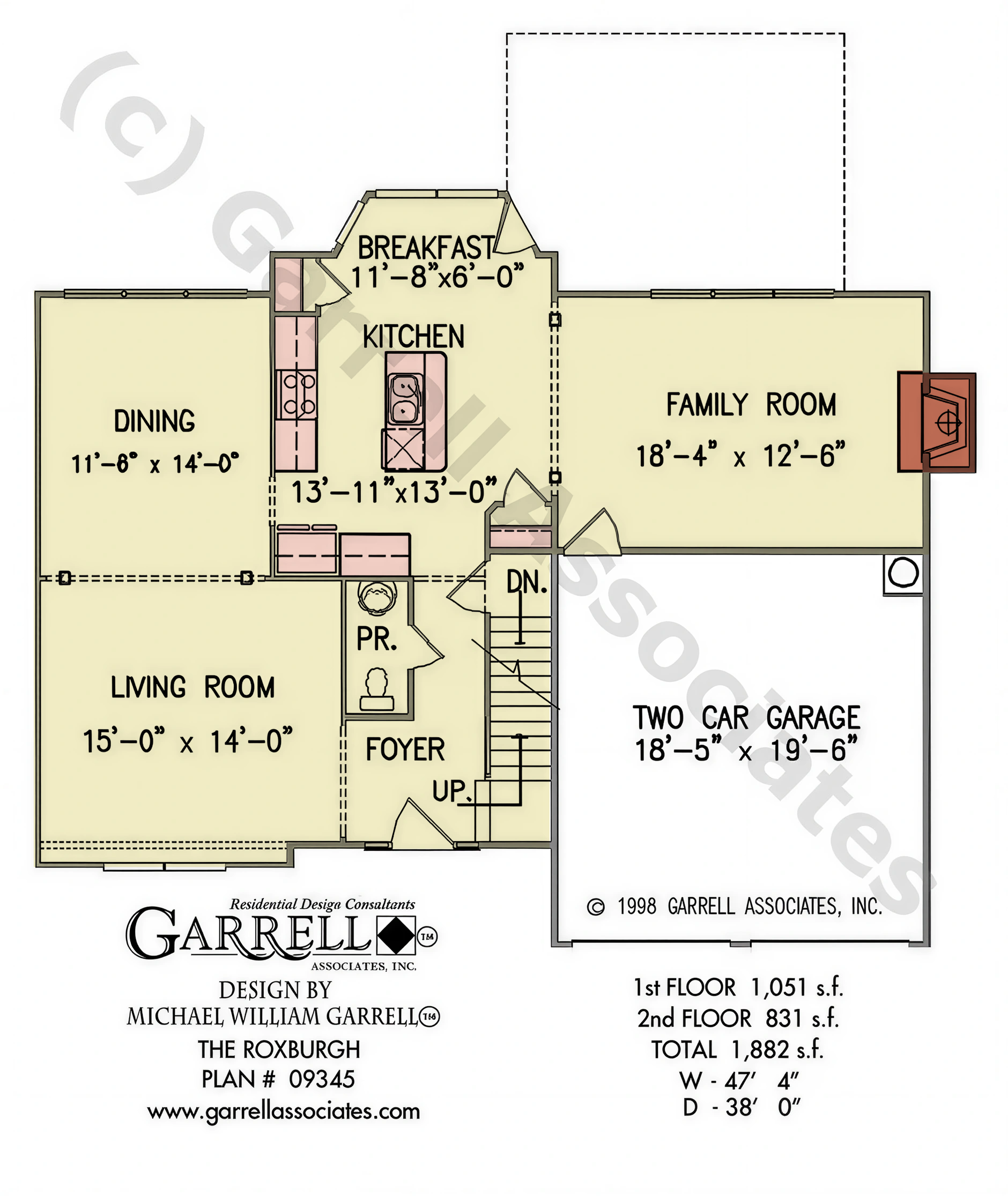

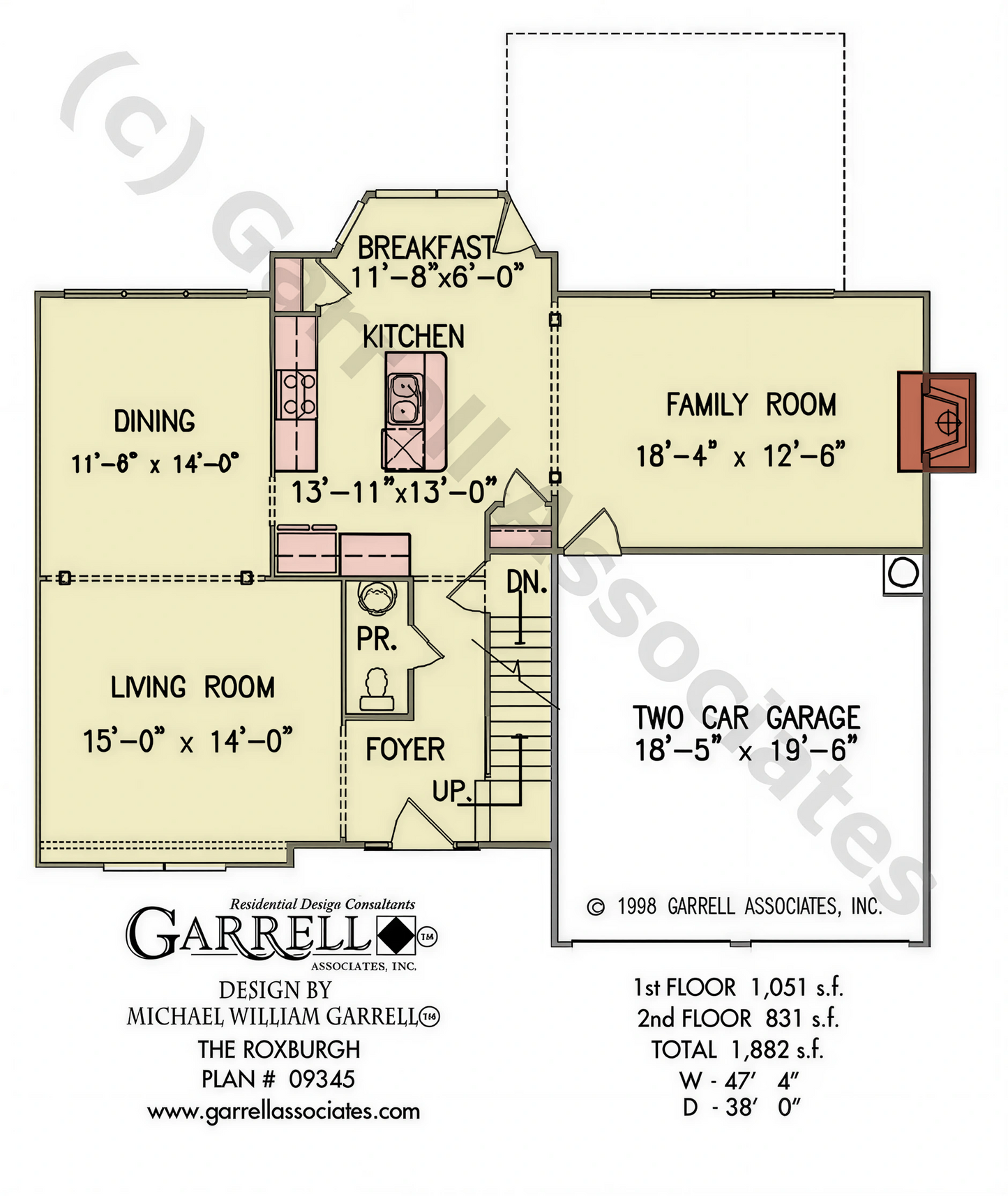

1stFLOORPLAN 09345

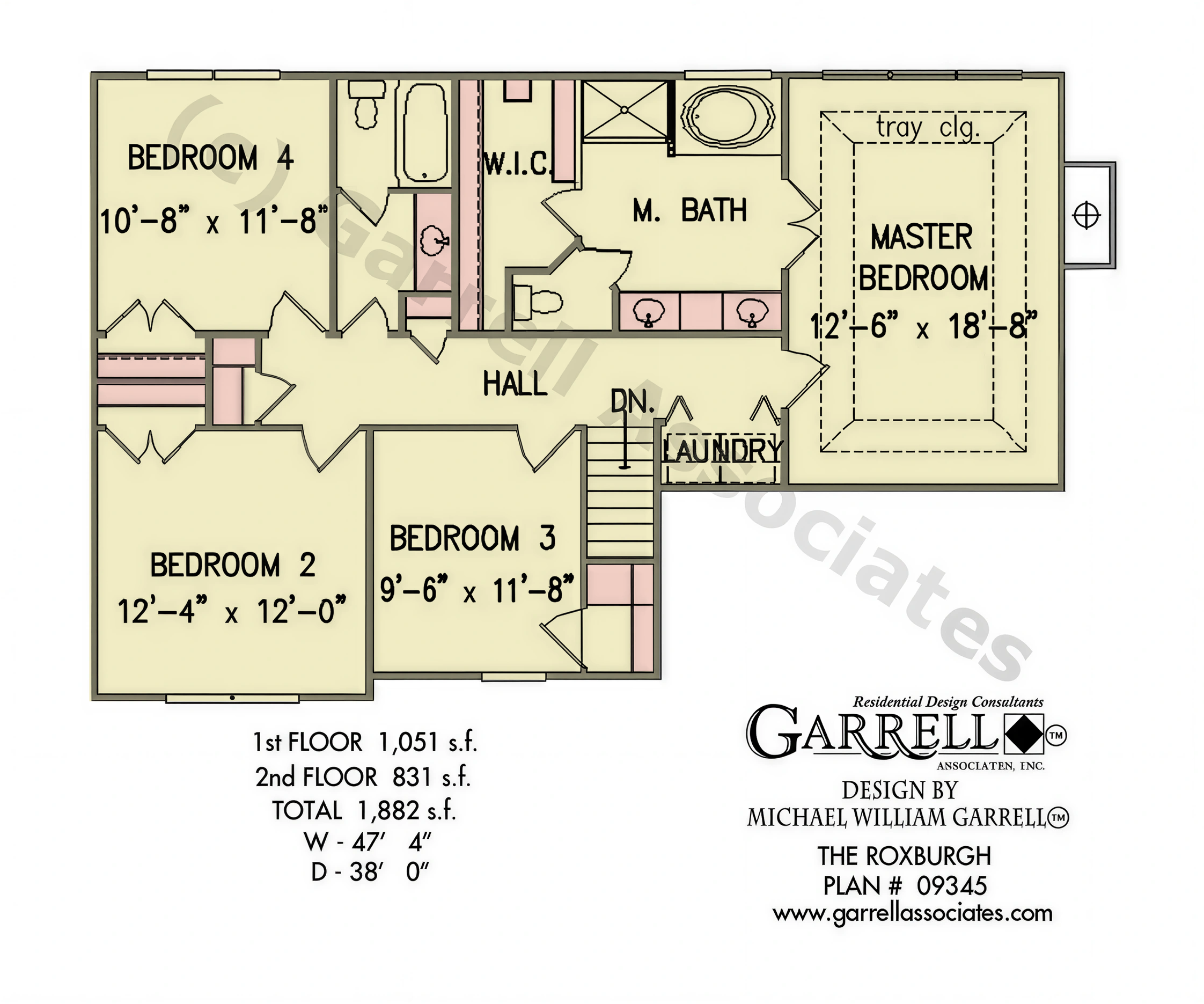

2ndFLOORPLAN 09345
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.

Description

A foyer is opens to a living room and dining room. A kitchen accented with a center island flows to the family room accompanied with a fireplace. The second floor master bedroom is crafted with a tray ceiling. A spacious bath and spacious walk in closet complete the suite. Three additional bedrooms closeout this Traditional style house plan. We offer floor plan modifications on all of our Traditional style house plan designs. Have a question about any of our house plans, call us at 770-614-3239.

What's Included In the plan

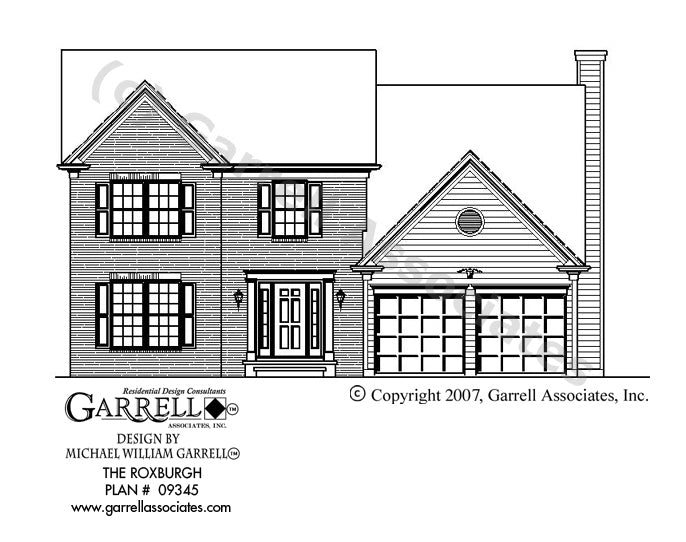

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 1882
1ST FLOOR 1051
2ND FLOOR 831
GARAGE 382
BATHS 2
BEDS 4
HALF BATHS 1
MASTER BEDROOM Master Upstairs
WIDTH 47' 4"
DEPTH 38' 0"
W REF 47, 48
D REF 38
