Plan 18050 Walkers Ridge

3
Bedrooms
3
Bathrooms
2779
Square Ft
2
Stories

Recent Awards Won:

Customer Reviews:

Regular price $2,195.00 USD
Regular price Sale price
$2,195.00 USD

Customer Reviews:

LOW price
guarantee

Find A Lower Price And We'll Beat It
By 10%

Customize this plan to make it perfect for you, Risk-Free!

No upfront payment
Get first draft in 48 hours
Edit Your Plan

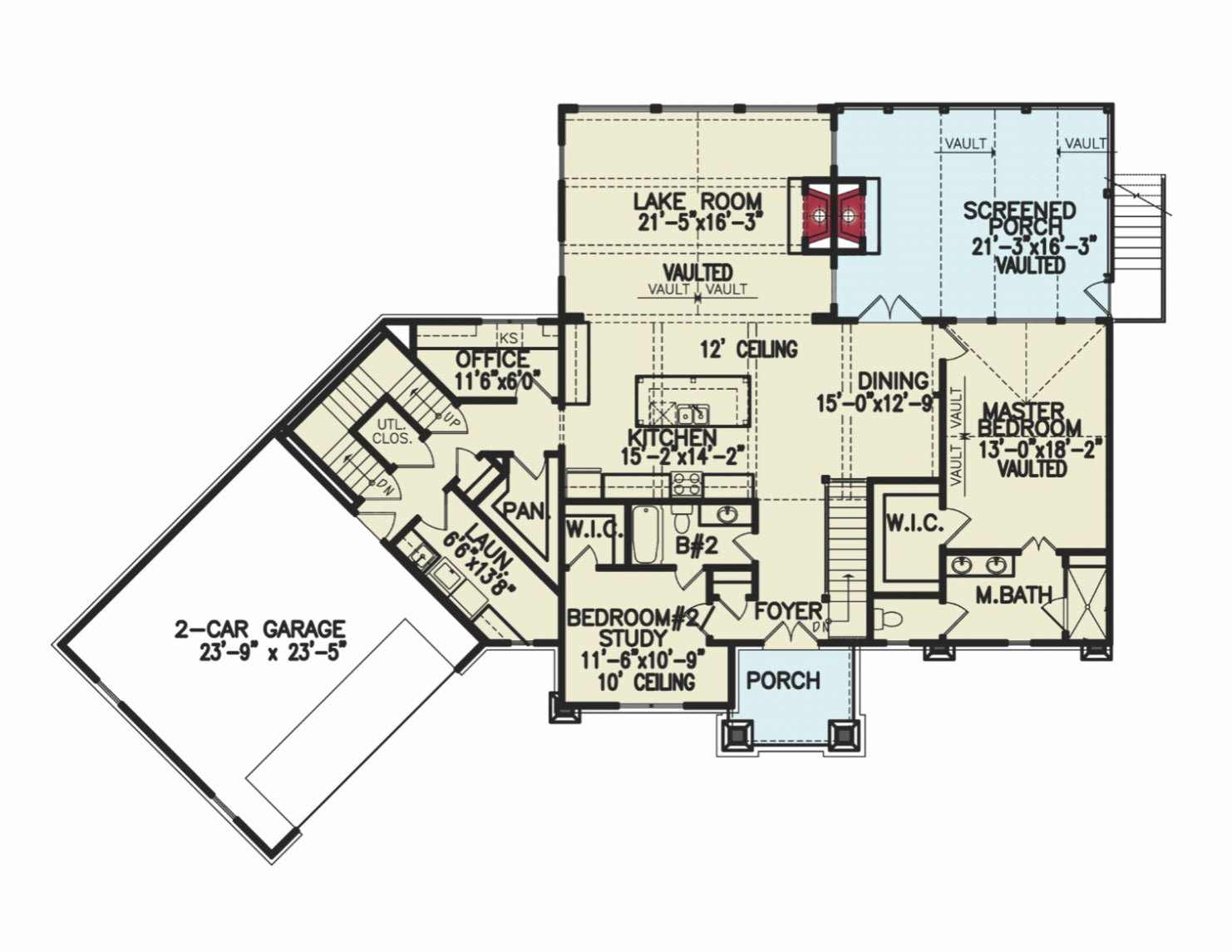

1stFLOORPLAN 18050

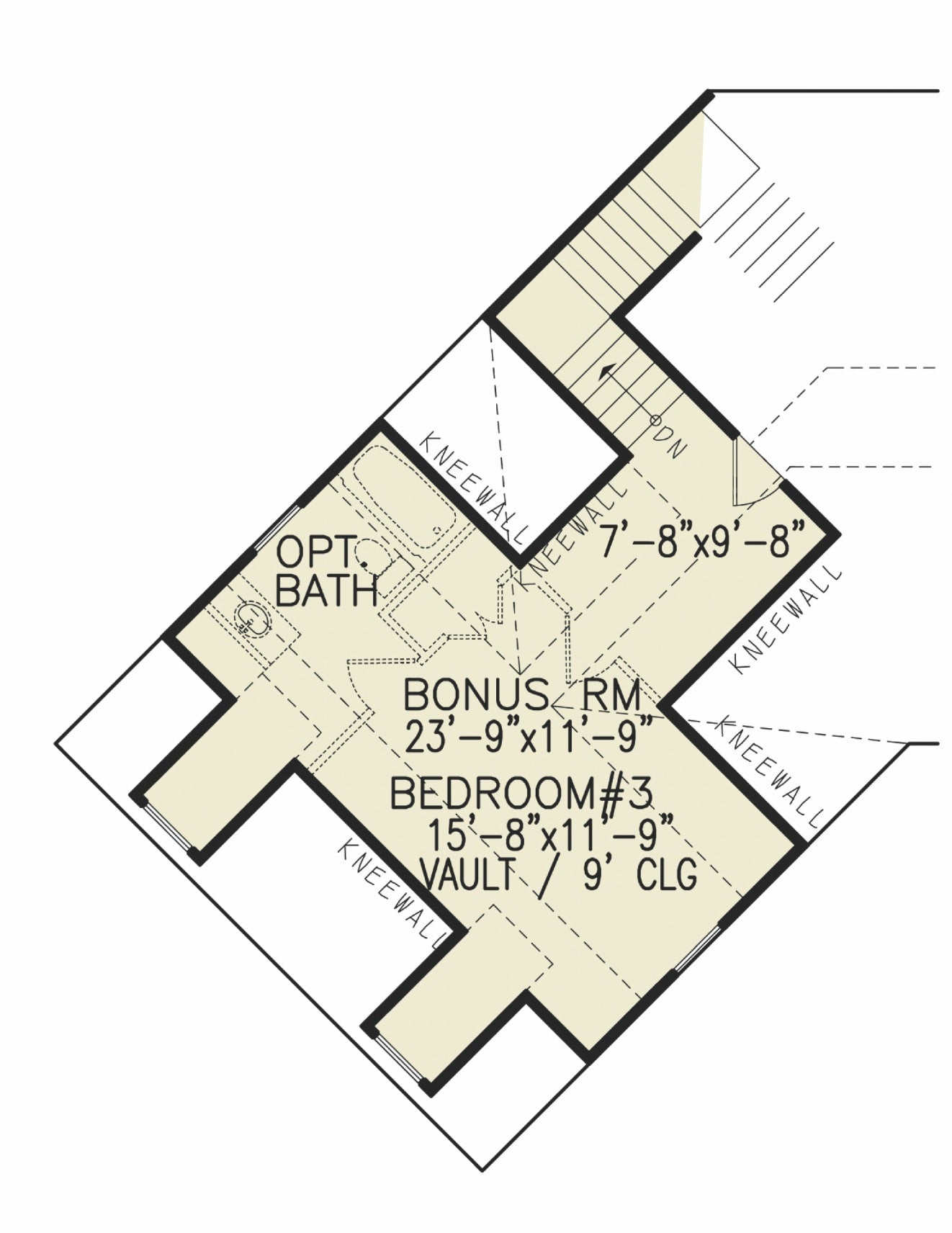

BONUSROOM 18050

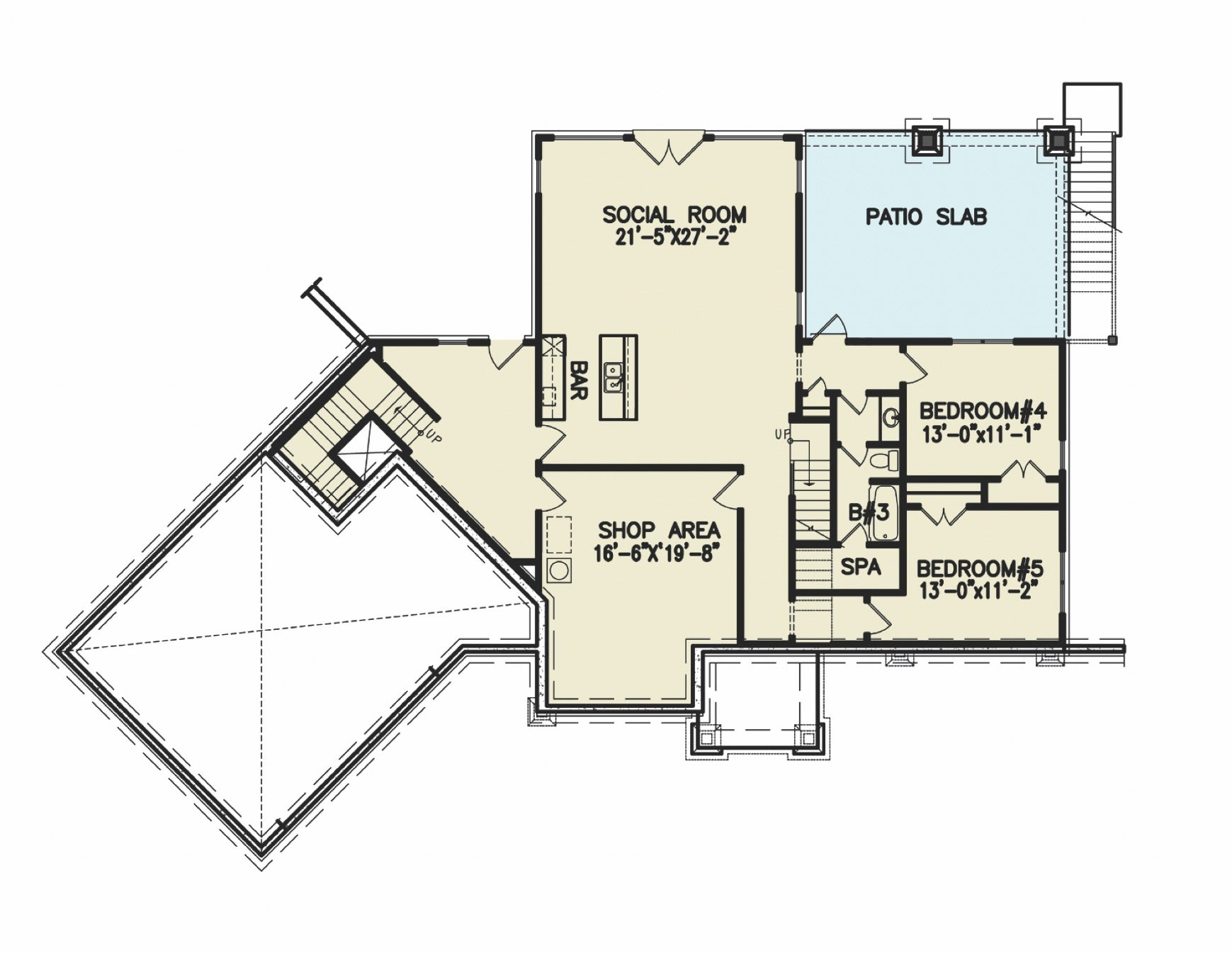

BASEMENTPLAN 18050
Reverse image
NOTE: If you purchase this plan in reverse, please select "readable version" or "mirror reverse" under Options above.
Download The Brochure (PDF)

What's Included In the plan

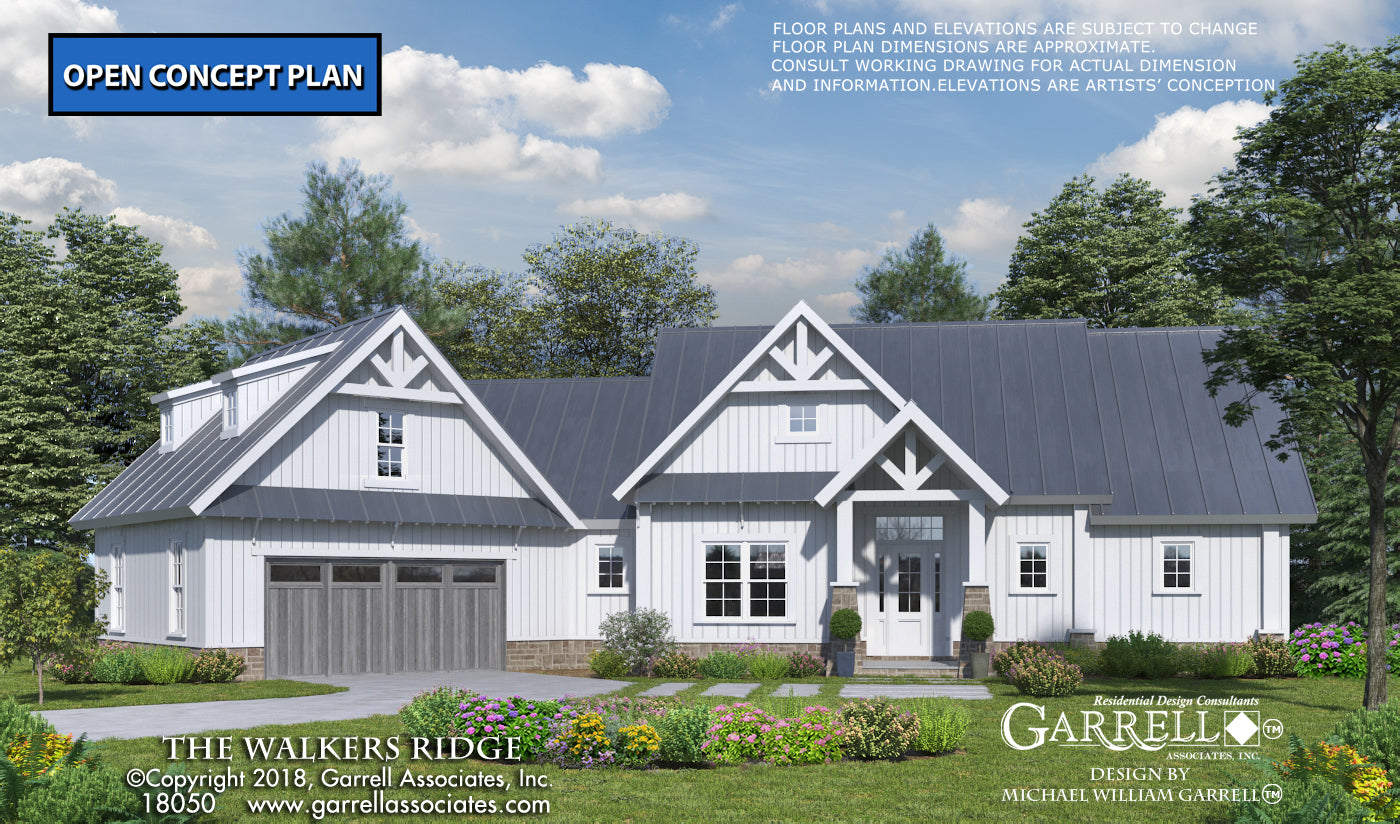

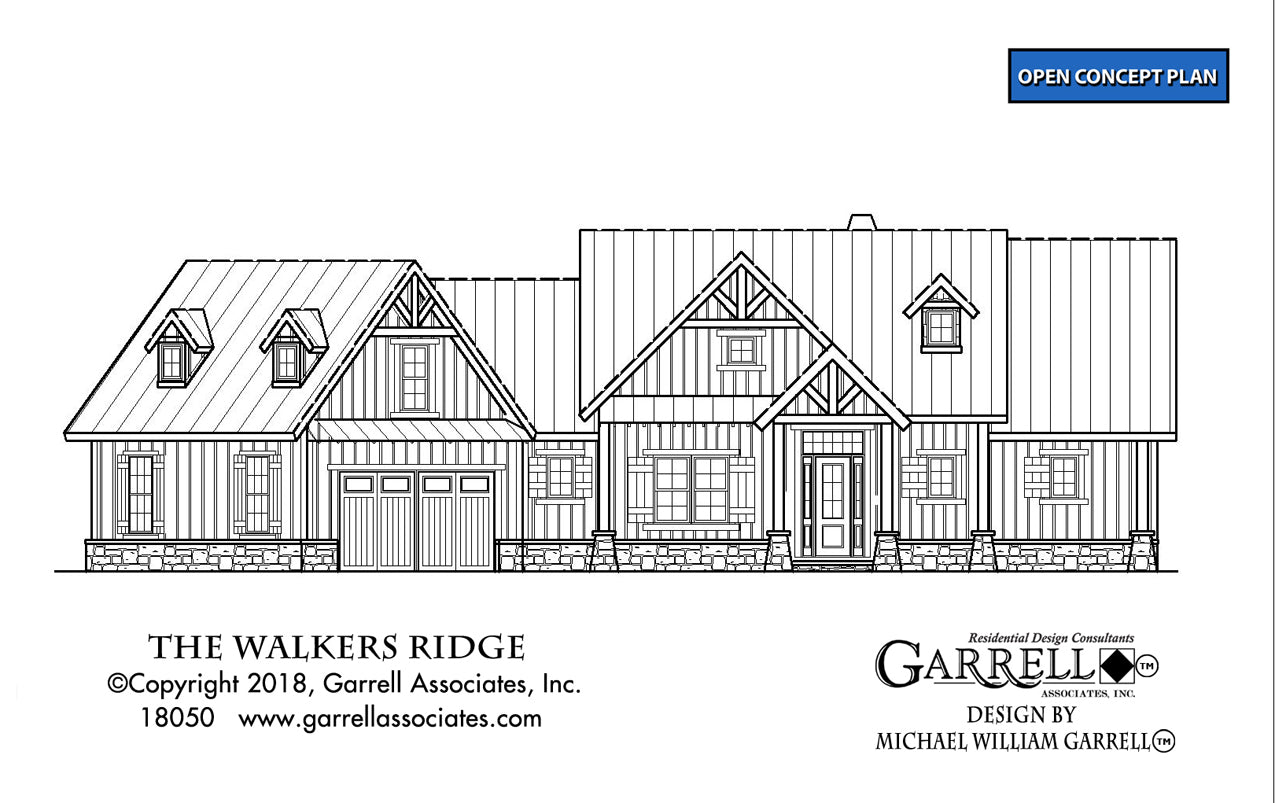

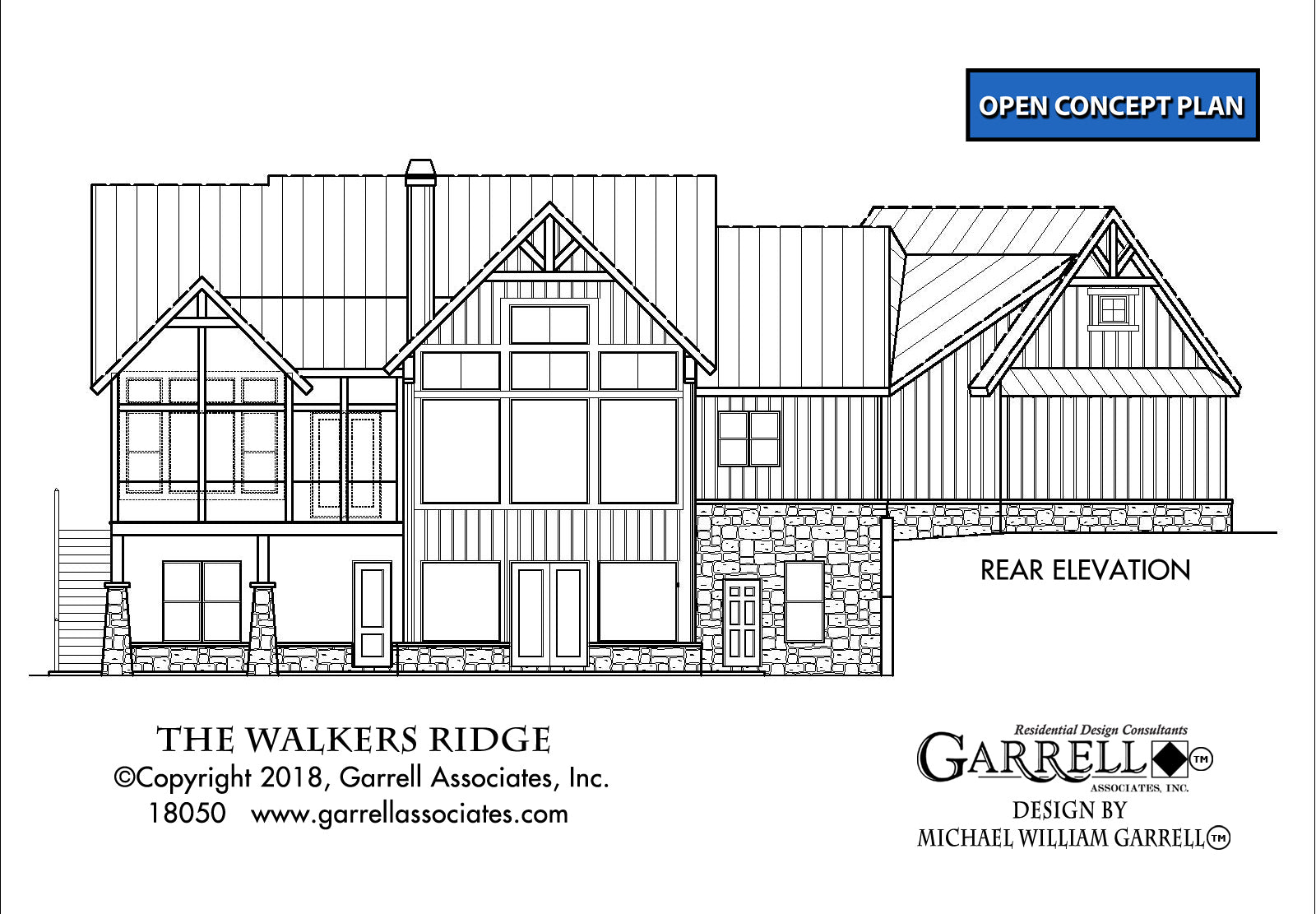

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Additional Information

TOTAL SQFT 2779
1ST FLOOR 2000
2ND FLOOR 417
GARAGE 576
BATHS 3
BEDS 3
MASTER BEDROOM Master Down
WIDTH 84' 10"
DEPTH 61' 0"
  • 29+ Years History & Award Winning Plans

    Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

  • Customize Your Plan

    Hire Michael W. Garrell, an award winning designer, directly for best-in-class designs and custom modifications.

  • Low price Guarantee

    By shopping directly with the original designers, you are ensured the best floor plan purchase price. If you find our plans or a similar plan for sale elsewhere with a better price, we will match it and give you an additional 10% off the matched price.
