Floor Plans
- 1st FLOOR PLAN - 00401

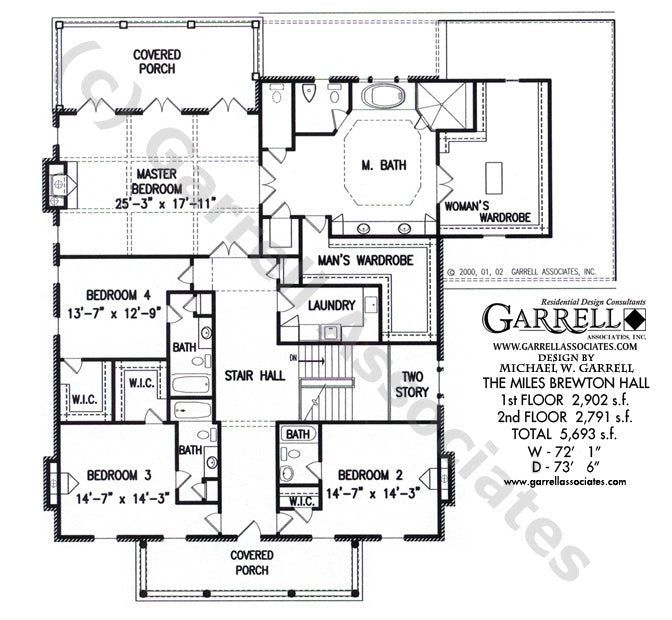

- 2nd FLOOR PLAN - 00401


Plan Details
Description
This beautiful home greets you with first and second level porches and stately columns. A stylish coffered ceiling and fireplace adorns the grand room. Multiple French doors open to a columned and arched covered porch at the rear of this home. Adjacent to the grand room, the keeping room is enhanced with a fireplace and flows to the kitchen. The second floor master suite is nothing short of stunning. The generous sized master bedroom is complimented with a coffered ceiling, fireplace and a covered porch. The spacious spa type bath features expansive his and hers wardrobes. Closing out this Tidewater style house plan are three additional bedrooms and a covered porch at the front of the home. We offer floor plan modifications on all of our Tidewater style house plan designs.
What's Included In the plan
1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
4. Interior Details – These drawings show the specific details and design of special interior features.
5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.
Additional Information
TOTAL SQFT | 5693 |
1ST FLOOR | 2902 |
2ND FLOOR | 2791 |
GARAGE | 726 |
BATHS | 5 |
BEDS | 5 |
HALF BATHS | 1 |
MASTER BEDROOM | Master Upstairs |
WIDTH | 72' 1" |
DEPTH | 73' 6" |
W REF | 72, 73 |
D REF | 73, 74 |
